Overview

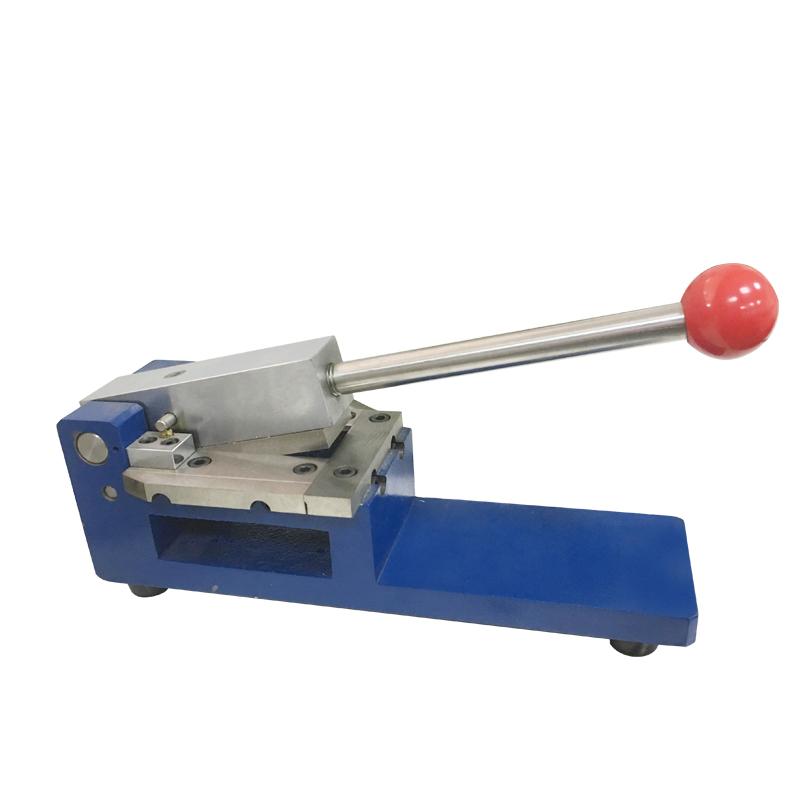

YN-TDY02 stiffness Sampler is a dedicated Sampler for 38mm * 70mm paper bending stiffness test and 38mm * 36mm crease stiffness test to ensure that the sample and guide are accurately parallel to ensure the smoothness and repeatability of paper Ring Crush Test results.
Features
1. Stamping sampling method, accurate, convenient and fast;
2. Hardened tool, knife edge more resistant to abrasion, a wide range of applications;
3. Stainless steel bearings are easy to operate and more convenient to use.
4. Easy to assemble, small sampling error, only +/- 0.2mm, test deviation can be ignored;
5. Special treatment of the die blade is adopted, which is not artificially damaged. It can be used normally without replacing the blade for 10 years.
Principle
Accurate sampling of specimens during stiffness testing.
Applications
Stiffness value test, crease stiffness test, 1mm torque test, paper Cardboard, film sheet, wire
Standards
GB/T 22364、GB/T 2679·3、ISO 2493、ISO 5628
Steps
1. Prepare the materials to be tested;
2. Use Sampler for stamping sampling;
Make sure the sample size meets the requirements (70 * 38mm or 38 * 36mm).
4. Check the parallelism of the specimen.
5. Follow-up stiffness test.
Notice
• Ensure that the specimen and guide are accurately parallel.
• The sampling thickness should be within the range of 0.1 to 1.5mm.
• Avoid man-made damage to the blade;
• Regularly check tool abrasion;
• Pay attention to safety during operation to prevent cuts.
