Overview

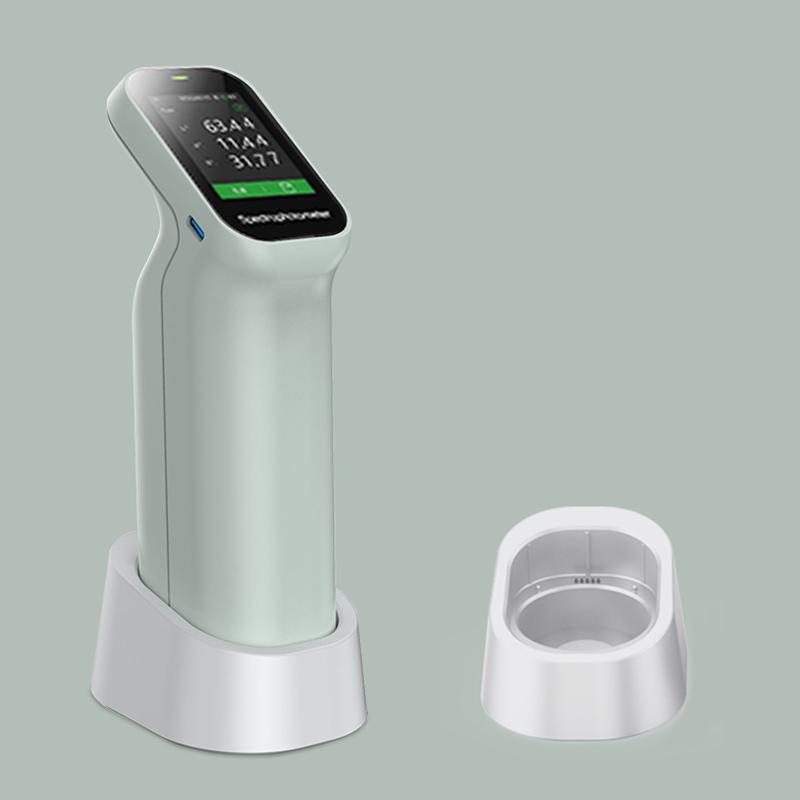

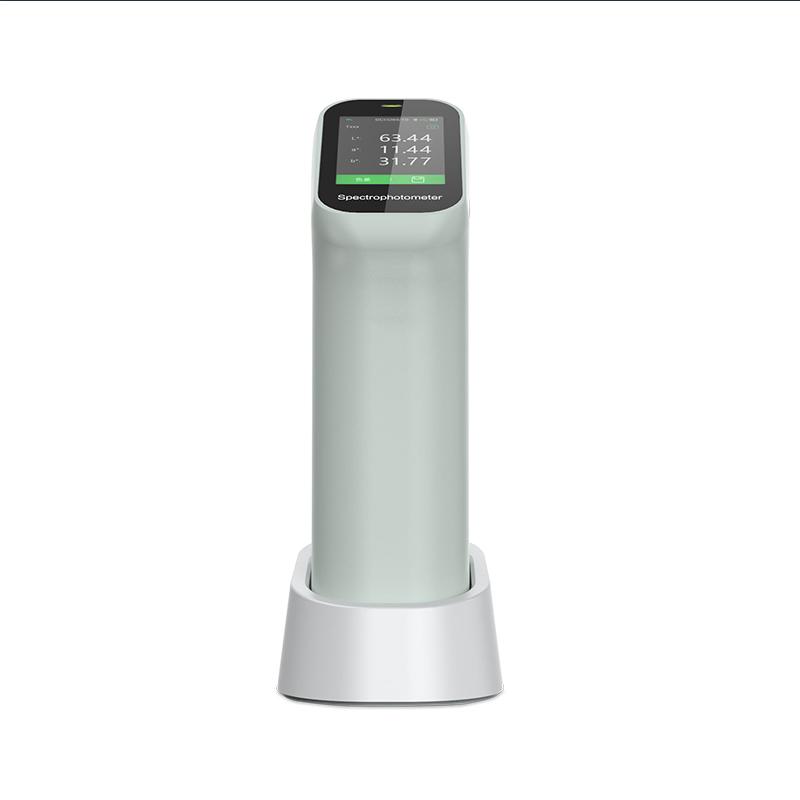

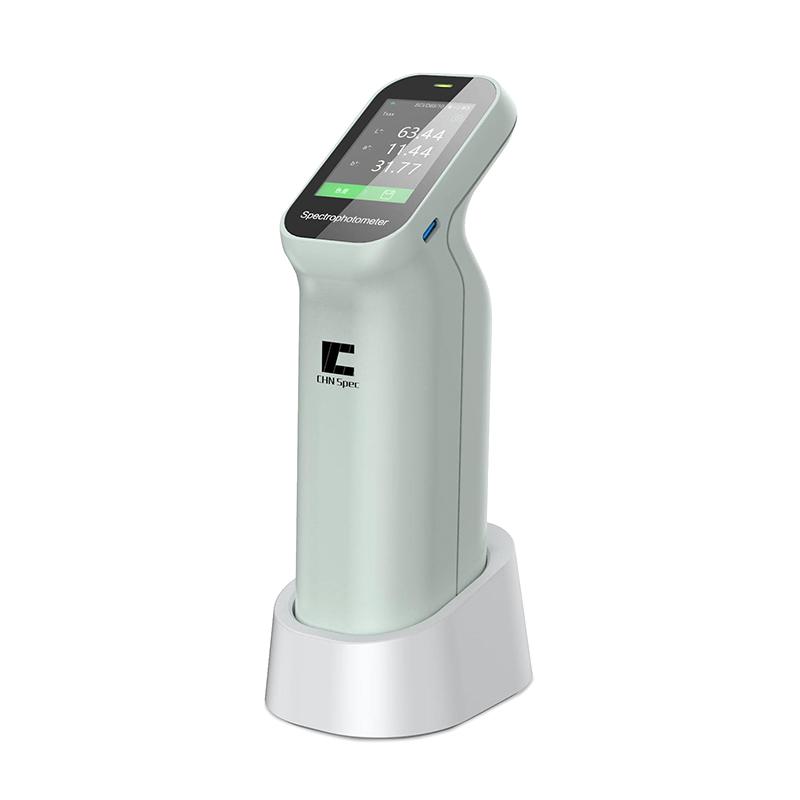

CHNSPEC CS-411 spectroscopic color difference meter is an economical color difference meter, suitable for product color difference evaluation operations. The instrument adopts Automatic calibration method, bid farewell to cumbersome Manual calibration, has more than 30 Measurement parameters and 26 Standard light sources, measurement diameter 4mm, to meet the small size sample measurement.
Features
1. Automatic calibration, take care of yourself
2, SCI/SCE: Gloss measurement can be removed, and the human eye feels more consistent
3. Measurement parameters: hiding power, whiteness, yellowness and other 30 + measurement indicators
4. Illuminant conditions: 26 Illuminant evaluation indicators
5. Repeatability is good, measurement is stable - 0.08
6. Guaranteed metrology authentication
Principle
The instrument adopts D/8-SCI + SCE measurement structure, that is, diffuse illumination, 8 ° direction reception, including specular reflection to remove specular reflection. Optical inspection device and CMOS sensor are integrated for spectroscopic measurement, Wavelength range 400~ 700nm, wavelength interval 10nm.
Applications
Product color difference evaluation
Standards
CIE No.15、GB/T 3978、GB 2893、GB/T 18833、ISO7724-1、ASTM E1164、DIN5033 Teil7
Steps
1. Automatic calibration
2. Measurement parameters and Illuminant conditions
3. Sample measurement
4. View and store measurement data
Notice
- measurement diameter of φ 4mm, suitable for small size samples
- 8000 continuous measurements on a single charge
- Data storage capacity is 20,000
- Illuminant life is 10 years 1 million times
- Operating languages support Simplified Chinese and English
