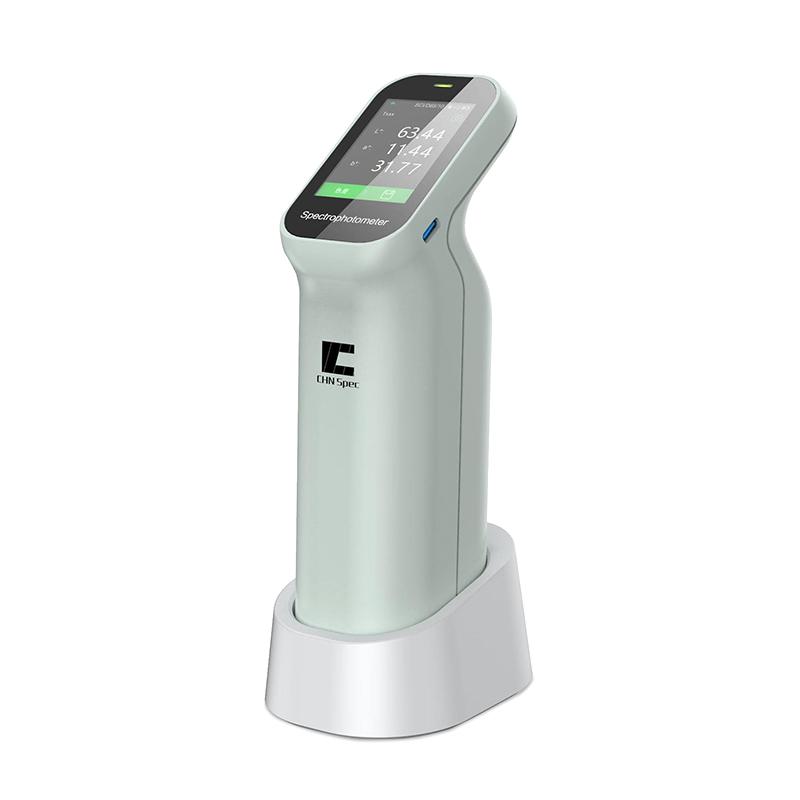

CHNSPEC CS-412 Spectroscopic color difference Meter Economic version Automatic calibration Dual aperture switching

Name: CHNSPEC CS-412 Spectroscopic color difference Meter Economic version Automatic calibration Dual aperture switching
Brand: CHNSpec
SKU: NB033164
Price: 1124.0 USD
Availability: InStock

$ 1124.00Ex works

Automatic calibration technology, equipped with dual measurement aperture switching function, Repeatability Delta E * ab ≤ 0.08, supports more than 30 chroma indicators and 26 Standard light sources, to meet the accurate measurement requirements of different Sample sizes.

Model

CS-412

Get Quote

Category : Color Spectrophotometer

Brand : CHNSpec

SKU : NB033164

Service :The delivery and service By NBCLab.Com

Overview

CHNSPEC CS-412 spectroscopic color difference meter is an economical color difference meter, suitable for color difference evaluation of products. The instrument adopts Automatic calibration mode, saying goodbye to cumbersome Manual calibration; has more than 30 Measurement parameters and 26 Standard light sources; supports aperture switching to meet the measurement of samples of different sizes.

Features

1. Automatic calibration, take care of yourself 2, SCI/SCE: Gloss measurement can be removed, and the human eye feels more consistent 3. Measurement parameters: hiding power, whiteness, yellowness and other 30 + measurement indicators 4. Illuminant conditions: 26 Illuminant evaluation indicators 5. Repeatability is good, measurement is stable - 0.08 6. Guaranteed metrology authentication

Principle

The instrument adopts D/8-SCI + SCE measurement structure, that is, diffuse illumination, 8 ° direction reception, including specular reflection light to remove specular reflection light. Through integrated Optical inspection device spectroscopy, CMOS sensor reception, wavelength interval 10nm, Wavelength range 400~ 700nm, reflectance measurement range 0~ 200%, to achieve accurate color difference measurement.

Applications

Suitable for color difference evaluation of products

Standards

CIE No.15、GB/T 3978、GB 2893、GB/T 18833、ISO7724-1、ASTM E1164、DIN5033 Teil7

Steps

1. Automatic calibration 2. Select measurement caliber 3. Carry out measurements 4. Check the measurement results

Notice

Automatic calibration of the instrument, bid farewell to the cumbersome Manual calibration • Support aperture switching to meet sample measurement of different sizes • Repeatability, stable measurement - 0.08 Guaranteed metrology authentication

Color
Pea green
Measurement structure
D/8-SCI + SCE, diffuse illumination 8 ° direction reception, including specular reflection light removal specular reflection light
Measurement Repeatability
Chromatic value Standard Deviation Delta E * ab ≤ 0.04, Average dE * ab ≤ 0.05, MAX Maximum dE * ab ≤ 0.08
Inter-instrument Agreement
ΔE*ab≤0.4
Display accuracy
0.01
Measurement of illumination diameter
Φ4mm+11mm
Measurement index
Light spectrum reflectance, CIE-Lab, CIE-LCh, HunterLab, CIE-Luv, XYZ, Yxy, RGB, color difference, whiteness, yellowness, Blackness, colour fastness, discoloration fastness, Tint, color density CMYK, Metamerism index, Munsell, hiding power, force
Illuminant condition
A,B,C,D50,D55,D65,D75,F1-F12,CWF,U30,U35,DLF,NBF,TL83,TL84
Colorschemer studio
without
Illuminant
LED
Measurement Observation method
visual
calibrate
Automatic calibration
Software support
Windows
Accuracy Guarantee
Guaranteed Level 1 Measurement Qualification
Field of view
2°,10°
integrating sphere diameter
40mm
Meet the standard
CIE No.15,GB/T 3978,GB 2893,GB/T 18833,ISO7724-1,ASTM E1164,DIN5033 Teil7
spectroscopy
Optical inspection device
Sensor
CMOS sensor
wavelength interval
10nm
Wavelength Range
400-700nm
Reflectance measurement Range
0-200%
Reflectance resolution
0.01%
Measurement time
About 1 second
interface
USB
screen
IPS full-color screen 2.4 inches
Battery capacity
Single charge can be continuous measurement 8000 times, 3.7V/3000mAh
Illuminant life
10 years 1 million times
language
Simplified Chinese, English
storage
20,000 data

[Q] Is the price listed on the website the final cost for overseas purchases?

[A] No, it isn't. This is the ex-factory price of the product in the Chinese Mainland. In addition to this price, buyers from different countries need to account for additional costs such as shipping fees, tariffs, and others. For specific regional quotes, please consult our customer service or fill out a quotation form.

[Q] What is the specific process for purchasing the product?

[A] First, please click on the quotation form on the website and fill in detailed information. Our customer service personnel will then send you a quotation based on your specific country and region, confirming payment and delivery methods. Following this, we proceed with contract signing, payment, and shipment. You can then await delivery.

[Q] What should I do if the instrument I purchase needs repair?

[A] After-sales repair for overseas instruments is an unavoidable issue. Our repair terms stipulate that the sender is responsible for the shipping and insurance costs incurred for the repair. Repairs within the warranty period are free, while repair costs beyond the warranty period are determined based on the actual situation.
