Overview
CHNSPEC CS-422 color difference meter is a professional version of color measurement instrument, built-in camera for precise positioning measurement, equipped with UV Illuminant to support fluorescent color measurement. By connecting to the mobile app, data measurement, storage, color scheme and color correction functions can be realized, and multiple sets of color card information can be used to find similar colors. This model also supports aperture switching to adapt to the measurement needs of different sizes of samples.
Features
1. Automatic calibration function, easy to operate
2, SCI/SCE Measurement mode, can remove Gloss, more consistent with human eye perception
3, covering more than 30 measurement indicators, including hiding power, whiteness, yellowness, etc
4. Provide 26 Illuminant Evaluation Conditions
5. Repeatability is good, measurement is stable, Standard Deviation Delta E * ab ≤ 0.06
6. Guaranteed metrology authentication
7. Built-in massive Color Chart database, supports multi-industry Color Chart information entry and similar color search
8. Cloud database support for multi-device data sharing and Color recipe management
9. Equipped with UV Illuminant, Camera and Colorschemer studio for better performance
Principle
Adopt D/8 measurement structure (diffuse illumination, 8 ° direction reception), including two modes of specular reflection and removal of specular reflection. Through integrated Optical inspection device spectroscopy, CMOS sensor detection, Wavelength range 400~ 700nm, interval 10nm, measurement reflectance range 0~ 200%, accurate color analysis.
Applications
Printing, Paint, Spinning & weaving
Standards
CIE No.15、GB/T 3978、GB 2893、GB/T 18833、ISO7724-1、ASTM E1164、DIN5033 Teil7
Steps

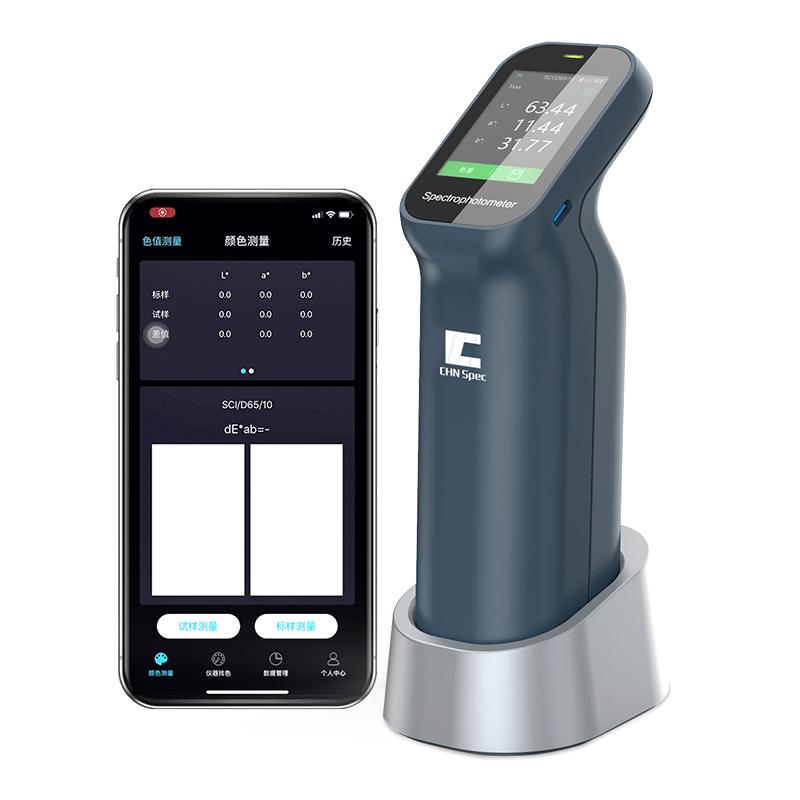

1. Connect to the mobile app
2. Select the measurement diameter (φ 4mm or φ 11mm)

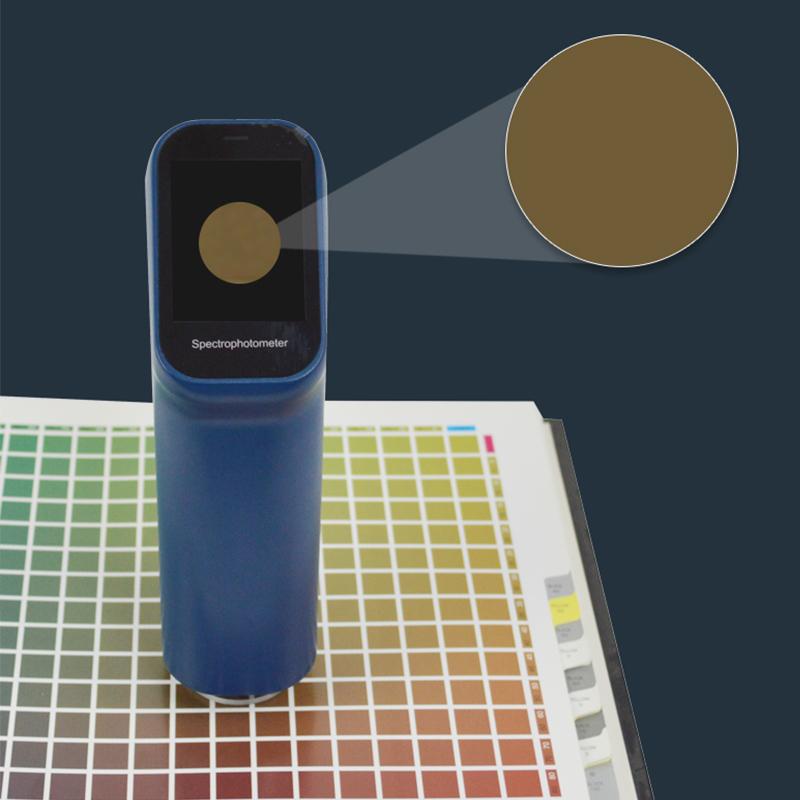

3. Locate the measurement area through the camera
4. Automatic calibration
5. Color measurement
6. View or store measurement data
7, use the color scheme, color repair function
8. Upload data to the cloud for sharing
Notice
• Automatic calibration before measurement
• Select the appropriate measurement caliber according to Sample size
• Keep the measurement area clean to avoid contamination affecting the results
• Regularly check the battery power to ensure normal use
• Measurement conditions when using UV Illuminant
• Cloud data sharing requires authorization through an invitation code
