Overview

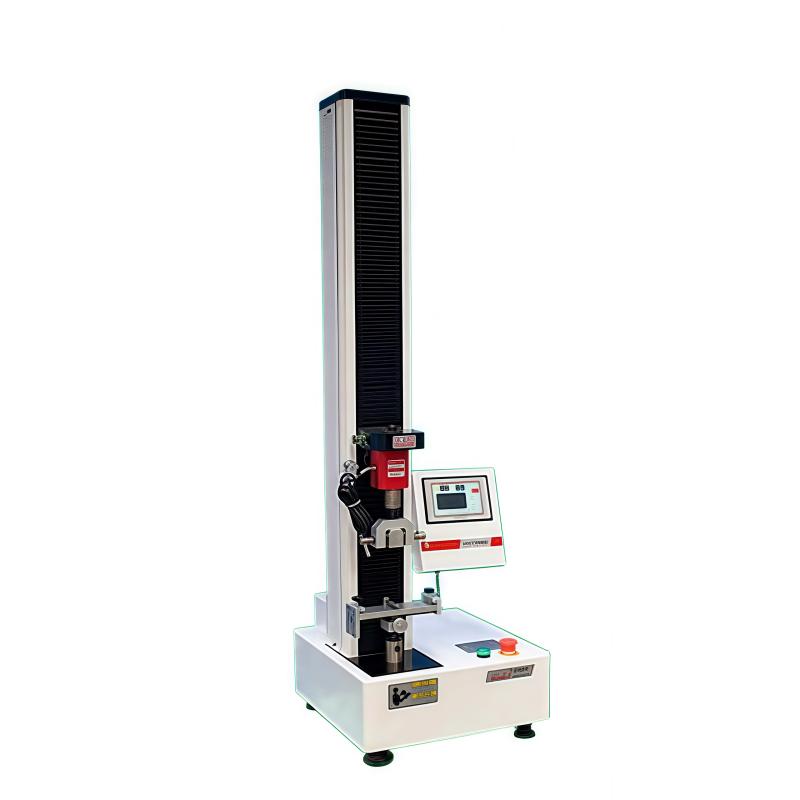

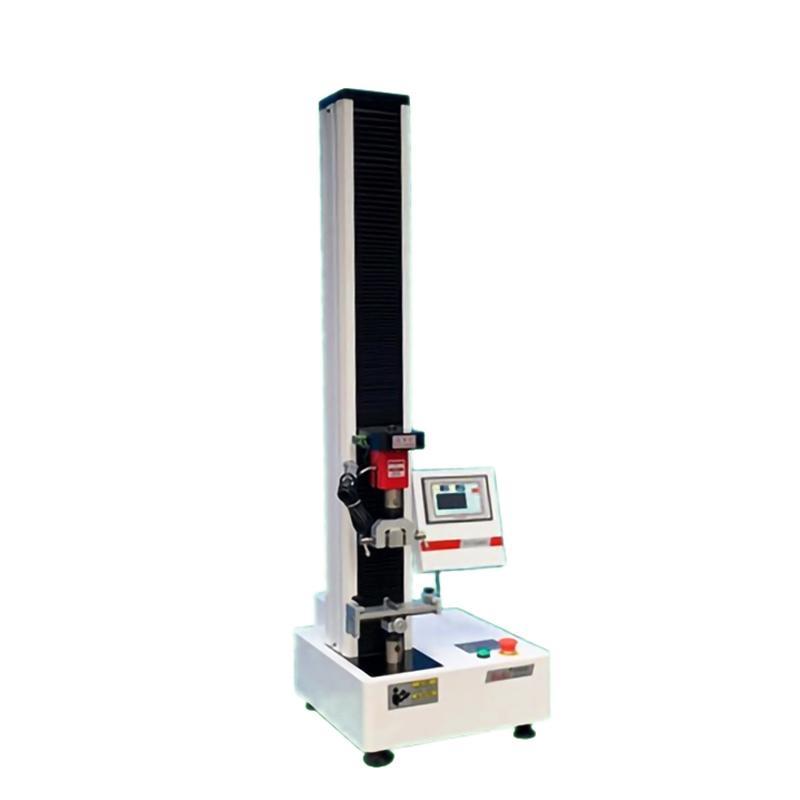

JINGWEN JW-103C paper Universal Testing Machine is a professional equipment used to test the tensile performance of paper, Plastic film, Adhesive and other materials. The testing machine uses ball screw drive and high-end stepper motor to ensure a smooth and accurate test process. It is equipped with a large screen touch screen and a micro printer, which is convenient for users to monitor and print test results in real time.
Features
1. Adopt ball screw transmission, which is more stable and accurate.
2. Adopt high-end stepper motor, with low noise and accurate control.
3. Large screen touch screen display, Chinese menu, real-time display of test force, speed, displacement and Linear dispersion: force-time, force-deformation, force-displacement, etc.
4. Built-in micro printer, print data and test results: tensile strength, elongation.
5. Visual display of test results: After a set of tests are completed, the measurement results are displayed and the statistical report is printed, the average value, Standard Deviation and Coefficient of Variation.
6. Microcomputer data processing and control, automatic reset, data memory, overload protection, etc.
7. AC speed regulation, sample damage automatic shutdown, photoelectric safety limit.
8. The test force is not divided into gears throughout the process, and it is automatically switched.
9. Adding attachments can complete compression, bending, shearing, Tear strength, etc.
Principle
The testing machine is driven by a ball screw drive and a stepper motor to achieve precise tensile motion. The microcomputer system controls the test process, collects test force, displacement and other data in real time, and automatically processes and analyzes it to generate test Linear dispersion and reports. When the sample is damaged, the equipment automatically stops to ensure safety.
Applications
Paper, Cardboard, Plastic film, Composite film, Soft Encasement material, Adhesive, Adhesive tape, sticker, Rubber, Plastic Aluminum Panel, Enameled wire, Non-woven fabric, Spinning & weaving products, Water proofer, V-belt and other products for tensile performance testing, but also the measurement of tension, Tensile Strength, elongation, fracture length, Tensile Energy Absorption, Tensile Index, Tensile Energy Absorption Index, 180 degree Peel Strength, Heat Seal Strength, 90 degree Peel Strength, constant elongation, constant elongation value, aluminum foil tension, aluminum plastic tape tension, Peel Strength, Elongation, Plastic film tensile strength, elongation, Modulus of Elasticity, Food bag heat sealing strength, Tensile Strength, Peel Strength, towel adhesive strength, edge sealing strength, Tensile Strength, elongation, Pressure sensitive adhesive Peel Strength, Tensile Strength, Synthetic fiber filament breaking strength, elongation, zipper slip.
Standards
ISO 37、GB 8808、GB/T 1040.1-2006、GB/T 1040.2-2006、GB/T 1040.3-2006、GB/T 1040.4-2006、GB/T1040.5-2008、GB/T4850-2002、GB/T12914-2008、GB/T 17200、 GB/T 16578.1-2008、GB/T 7122、GB/T 2790、GB/T 2791、GB/T 2792、ASTM E4、 ASTM D882、ASTM D1938、ASTM D3330、ASTM F88、 ASTM F904、JIS P8113、 QB/T 2358、 QB/T 1130
Steps
1. Prepare the sample to ensure that the width meets the requirements (standard 30mm or optional 50mm).
2. Manually clamp the specimen onto the fixture.
3. Set the test parameters through the touch screen, such as the speed range of 0.2 to 500mm/minute.
4. Start the test, and the equipment automatically performs a tensile test.
5. After the test is completed, check the test results and Linear dispersion displayed on the screen.
6. Use the Build-in Printer to print data and statistical reports.
Notice
• Power supply voltage is AC 220V 50Hz to avoid voltage instability.
• Check fixtures and specimens before operation to prevent overload or damage.
• Pay attention to safety during the test, and the equipment has a photoelectric safety limit function.
• Maintain ball screws and motors regularly to maintain equipment accuracy.
When printing data, ensure that the printer is working properly.
