Overview

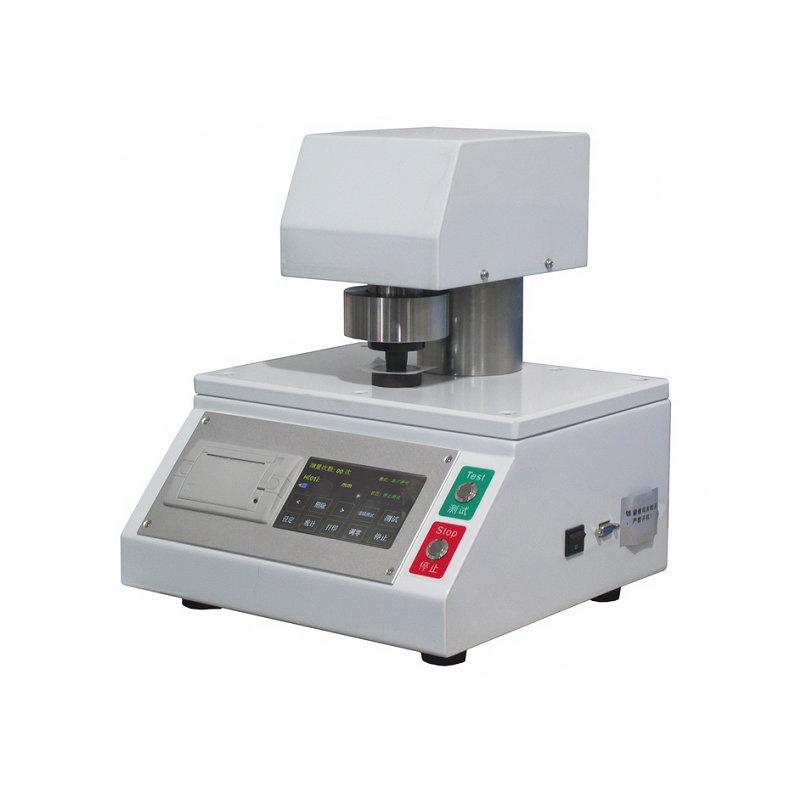

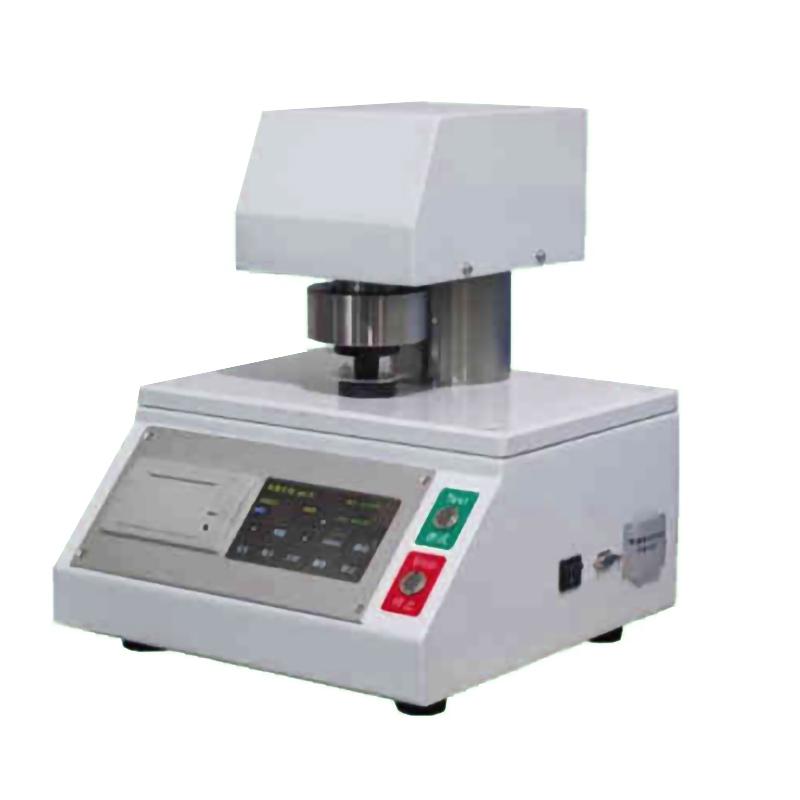

JW105-3 automatic paper thickness gauge adopts mechanical contact Measurement mode, which strictly meets the standard requirements and effectively ensures the standardization and accuracy of the test. Professional for thickness measurement of Plastic film, sheet, diaphragm, paper, foil, silicon wafer and other materials within the range.
Features
1. Measuring pressure and contact area in strict accordance with standard design, while supporting various non-standard customization
2. The measurement head automatically lifts and lowers during the test, effectively avoiding the system error caused by human factors
3. Support automatic and manual two Measurement modes, convenient for users to choose freely
4. Real-time display of large, small, average and Standard Deviation analysis data of measurement results to facilitate user judgment
5. Configure standard gauge blocks for system calibration to ensure test accuracy and data conformity
6. The system supports many practical functions such as real-time data display, automatic statistics, printing, etc., to easily and quickly obtain test results
7. The system is controlled by a microcomputer with a touch screen display, menu interface and PVC operation panel, which is convenient for users to conduct test operations and view data
Principle
Measurement mode using mechanical contact, thickness measurement by automatic lifting of the measurement head, the system is controlled by microcomputer with touch screen display to achieve accurate measurement.
Applications
Film, sheet, diaphragm, paper, Cardboard, foil, silicon, metal, Spinning & weaving materials, solid electrical insulators, non-woven materials
Standards
ISO 4593、ISO 534、ISO 3034、GB/T 6672、GB/T 451.3、GB/T 6547、ASTM D374、ASTM D1777、TAPPI T411、JIS K6250、JIS K6783、JIS Z1702、BS 3983、BS 4817
Steps
1. Power supply AC220V +/- 10% 2A 50Hz
2. Select Automatic or Manual Measurement mode
3. Place the sample for measurement
4. Automatic lifting of the measurement head to complete the test
5. View real-time display of large, small, average and Standard Deviation
6. Use the print function to output test results
Notice
• Power supply voltage must meet AC220V +/- 10% 2A 50Hz requirements
• System calibration using standard gauge block before measurement
• Note that the contact area and Measuring pressure must meet the standard requirements
• The parallelism of the measurement surface should be kept within the range of ≤ 0.002mm
• The adjustable range of probe descent speed is ≤ 0.5-6 mm/s
• Device weight is about 25kg, pay attention to safety when handling
