Overview

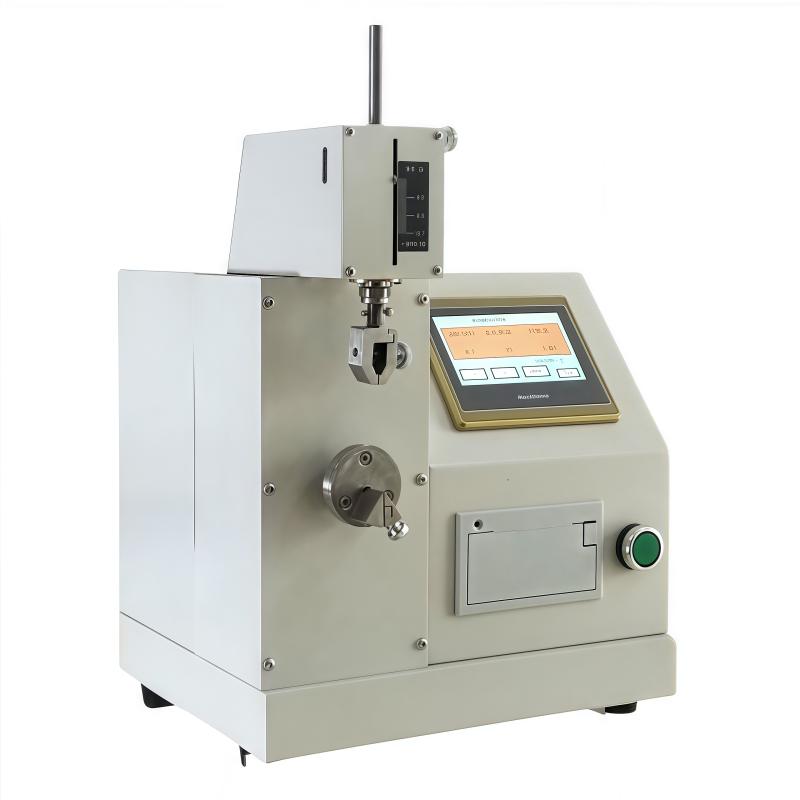

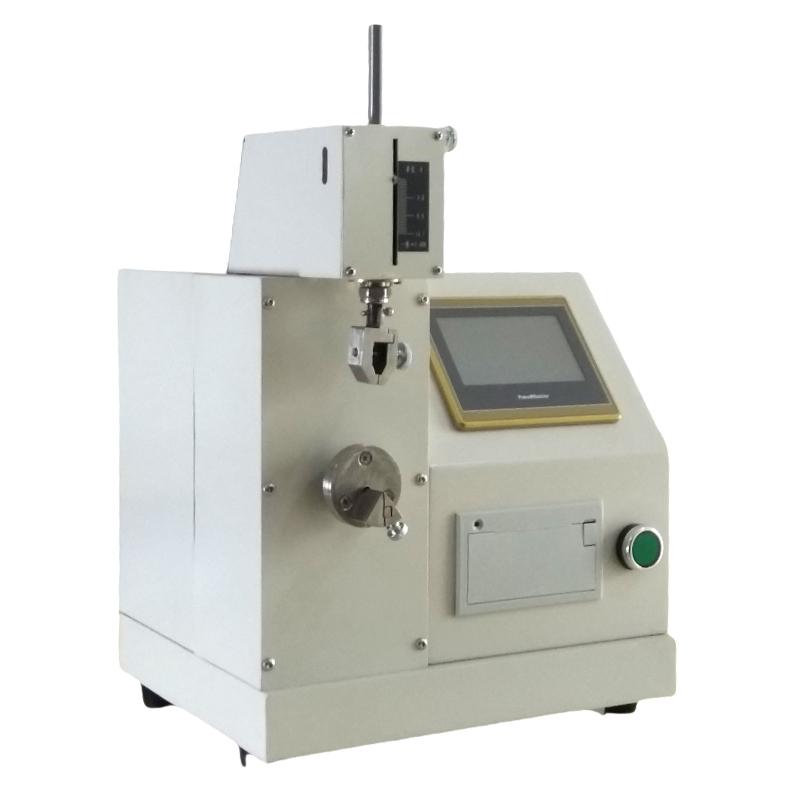

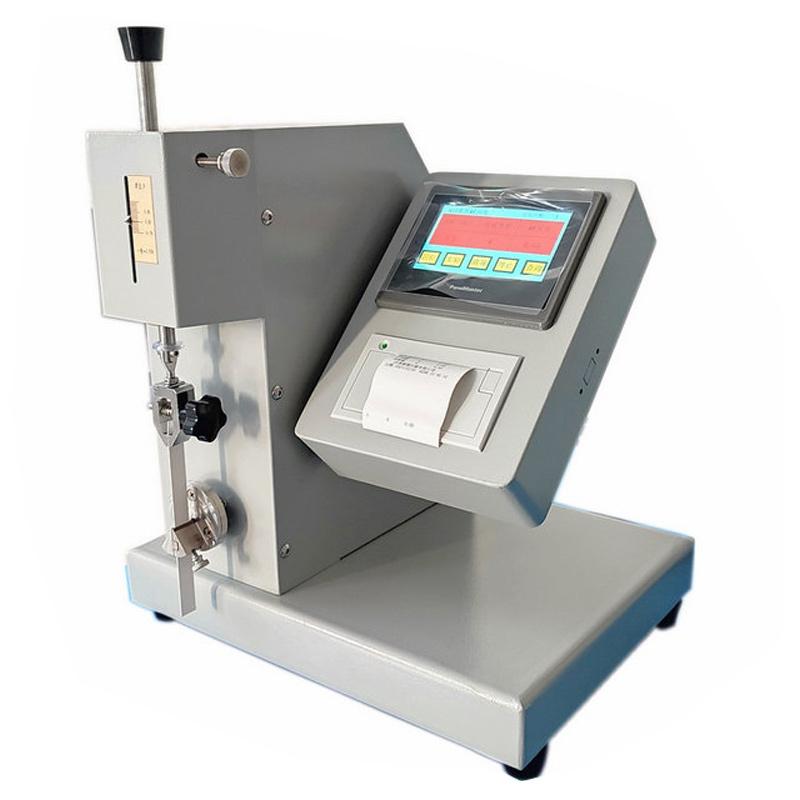

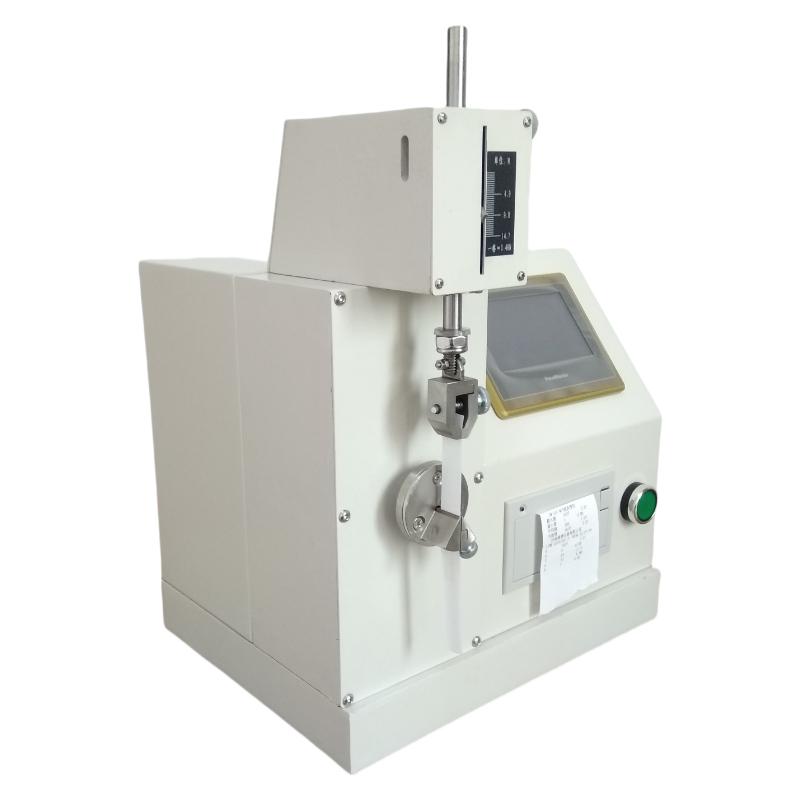

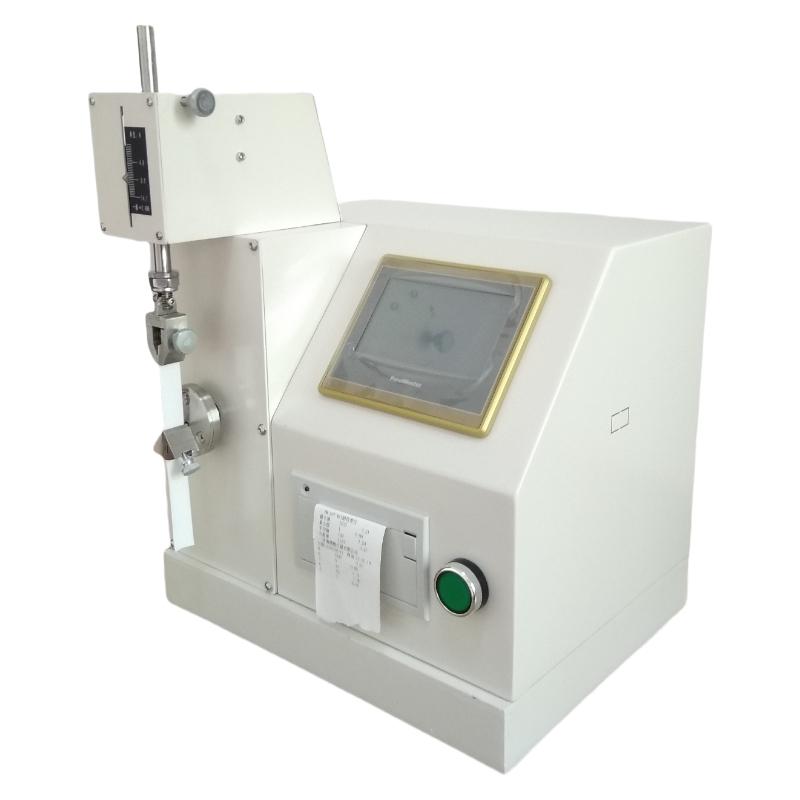

MIT paper Folding tester JW107C is a High Accuracy smart test instrument using modern mechanical design concepts and microcomputer processing technology. The instrument adopts high-end PLC controller, touch screen, Sensor and other components, and has various parameters included in the standard to test, convert, adjust, display, memory, print and other functions. It is suitable for measuring the folding fatigue strength of paper, Cardboard and Miscellaneous sheet materials with a thickness of less than 1mm.
Features
1. Using microcomputer control technology, Degree of automation is high, and sampling, measurement and display can be carried out at the same time
2. Accurate and fast measurement, simple operation, easy to use, automatic zero return after the test
3. Stepper motor control, precise positioning, automatic measurement, statistics, printing test results, and data saving function
4. Modern design concept of opto-mechatronics, compact structure, beautiful appearance, stable performance and reliable mass
Principle
The instrument adopts photoelectric control technology to automatically return the folding chuck after each experiment, which is convenient for the next operation. The folding process is precisely controlled by the stepper motor, the folding fatigue strength of the material is automatically measured, and it has a powerful data processing function, which can convert the number of double folds and corresponding values of a single sample, and at the same time count the experimental data of multiple samples in the same group.
Applications
Paper, Cardboard, Miscellaneous Sheet Material
Standards
ISO 5626、GB/T 2679.5、GB/475、QB/T 1049
Steps
1. Boot preparation, the instrument will automatically reset and return
2. Set test parameters, including spring tension, folding mouth seam distance, etc
3. Place the sample and start the test
4. Instrument automatic measurement, statistics and print test results
5. Automatic return after the test is completed, ready for the next operation
Notice
• Power Supply AC220V +/- 10% 50Hz
• Ambient Temperature should be in the range of 0~ 40 ℃
• relative humidity not more than 85%
• Make sure the sample thickness is less than 1mm
• Check whether the components of the instrument are normal before use
• Regular maintenance to ensure Measurement accuracy
