Overview

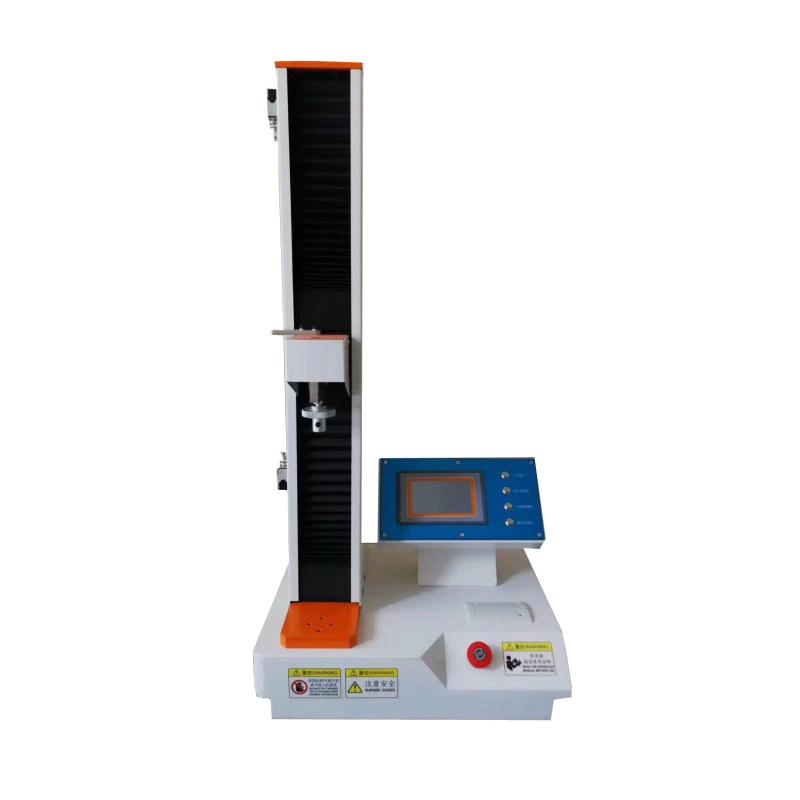

180 ° Peel strength tester is a professional testing equipment under the JINGHUAYIQI brand, model LD-BL-A (180 °/10kg), used for tensile testing and tensile strength testing of plastic, non-woven fabrics, leather, cloth zippers and other products. By configuring different fixtures, it can be extended to paint, Plastic film, Composite film, Soft Encasement material, Adhesive, adhesive tape, sticker, rubber, paper and other materials tensile test, tensile strength and elongation, breaking force and elongation, right angle tear, heat sealing strength, Tear strength, 180 ° Peel Strength (including T type), 90 ° disbonding, anti-puncture test and other tests.
Features
1. Capacity adjustable, range 0~ 10KG, optional 2kg to 200kg various capacities;
2. Accuracy grade up to 0.5, Force Measurement range, high resolution and constant throughout;
3. Test speed range 5~ 500mm/min, speed accuracy +/- 0.5%;
4. Equipped with High Accuracy Sensor and Stepper Motor Control system to ensure accurate testing;
5. Test bench lifting support computer digital control and manual pointing control, flexible operation;
6. Safety protection device, including software automatic diagnosis and electronic limit;
7. The re-test function supports manual high-speed return or automatic return to the initial position;
8. The fixture can be customized according to the user's sample requirements, with strong adaptability;
9. With A4 paper size printing report and a variety of Linear dispersion analysis functions;
10. Can distinguish the MAX Maximum, MIN Minimum, and average value in the sample, and calculate the results of different intervals.
Principle
The test machine makes sure that the disbonding surface is consistent with the test machine line by folding the free end of the sample in half 180 degrees and peeling it off the test plate, gluing the surface 25mm, and then clamping it on the upper and lower grippers. Continuous disbonding at a disbonding speed of 300mm/min +/- 10mm, the automatic recorder plots the disbonding Linear dispersion, and calculates the disbonding force according to the standard. The test results are calculated within a distance of 20-80mm after peeling, and the values are read every 20mm, and the average value is taken at least 4 points.
Applications
Plastic, Non-woven, Leather, Cloth Zipper, Paint, Plastic film, Composite film, Soft Encasement material, Adhesive, Adhesive tape, sticker, Rubber, paper
Standards
Adhesive tape disbonding test standard, ASTM D3330
Steps
1. Fold the free end of the sample 180 degrees and peel it off from the test plate with a gluing surface of 25mm.
2. Clamp the free end of the sample and the test plate on the upper and lower grippers respectively to ensure that the disbonding surface is consistent with the test machine line;
3. The testing machine continuously disbonding at a disbonding speed of 300mm/min +/- 10mm, and the automatic recorder plots the disbonding Linear dispersion;
4. The test results are calculated according to the distance of 20-80mm after peeling;
5. Read a number every 20mm within the disbonding range, at least 4 numbers;
6. Determine the average value of the read values.
7. Generate A4 paper size print report, Linear dispersion analysis;
8. Resolve the MAX Maximum, MIN Minimum and Average in the sample;
9. Calculate the results of different intervals and take point analysis.
Notice
• Ensure that the specimen is firmly clamped to avoid slippage affecting the test results.
• The disbonding speed should be strictly controlled within the range of 300mm/min +/- 10mm;
• Keep the disbonding surface consistent with the test machine line during the test;
• Take at least 4 points when reading the value to ensure data representativeness;
• Regularly calibrate equipment to ensure Accuracy grade;
• Safety protection device is checked before use;
• Select the appropriate fixture according to the sample requirements.
• Pay attention to electronic limits and software diagnostic functions when operating.
