Overview

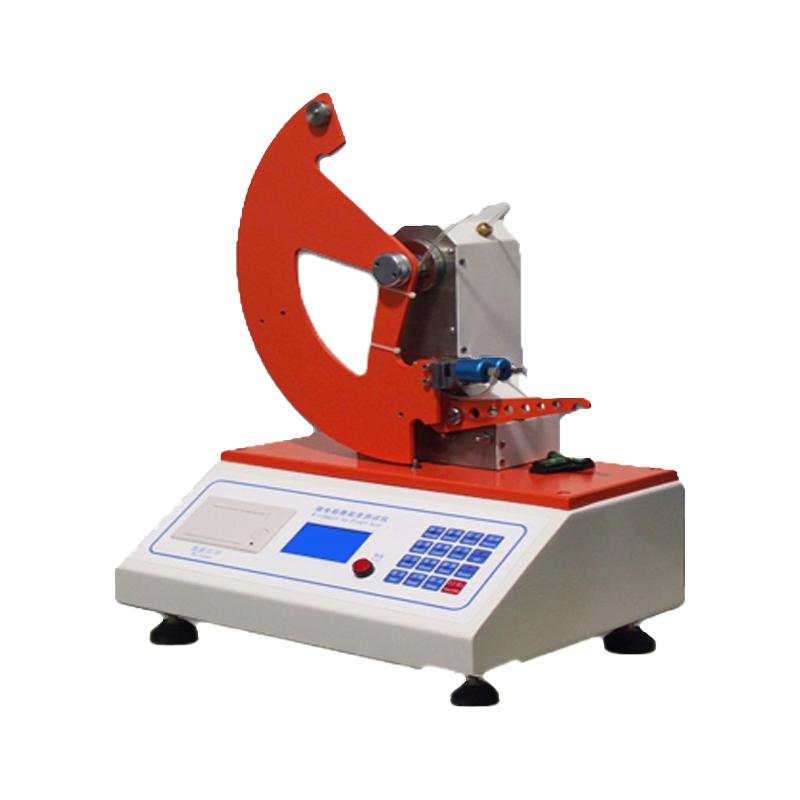

PUYUN PY-H610 Tear Strength Tester for Paper and Cardboard Tear strength, can also be used to test Spinning & weaving products, leather, film and other sheet composite tear resistance.
Features
1. Measurement range: A file 50~ 8000mN, B file 8000~ 16000mN
2.High accuracy: tearing arm 104 +/- 1mm, tearing initial angle 27.5 +/- 0.5 °, tearing distance 43 +/- 0.5mm
3. Easy to operate: equipped with solenoid valve telescopic column and reset tool holder
4. Wide range of application: can test a variety of sheet composites
Principle
Tearing strength of the material is measured by the force generated by the free swing of the pendulum body, when the bottom end of the pendulum body is tested at a distance of 6mm from the floor, the sample is torn under specific clamping conditions, and the material is evaluated by the measurement of the force value in the tearing process. Tear resistance performance.
Applications
Paper, Cardboard, Spinning & weaving, Leather, Film and other sheet composites
Standards
GB/T 455、ISO 1974、QB/T 1050
Steps
1. The size of the prepared sample is (63 +/- 0.5) mm * (50 +/- 2) mm
2. Install the sample in the paper clip, the size of the paper clip is 25 * 15mm
3. Set the appropriate measurement gear (A or B)
4. Start the test, and the pendulum swings freely to tear.
5. Read the test results to ensure that the reading is within 20% to 80% of the full scale
6. Check whether the tear offset is less than 10mm of the knife edge extension cable.
Notice
• Ambient Temperature should be in the range of 0~ 35 ℃
• Environmental humidity should be less than 85%
• Use 220V, 50Hz power supply
• Test readings should be within 20% to 80% of full scale
• The tear offset should be less than 10mm of the knife edge extension cable (when the offset number is less than 2)
• Make sure the distance between the paper jacks is 2.8 +/- 0.3mm
• The number of free pendulums should meet the requirements: min ≥ 20, mid ≥ 25, stand ≥ 35
