Overview

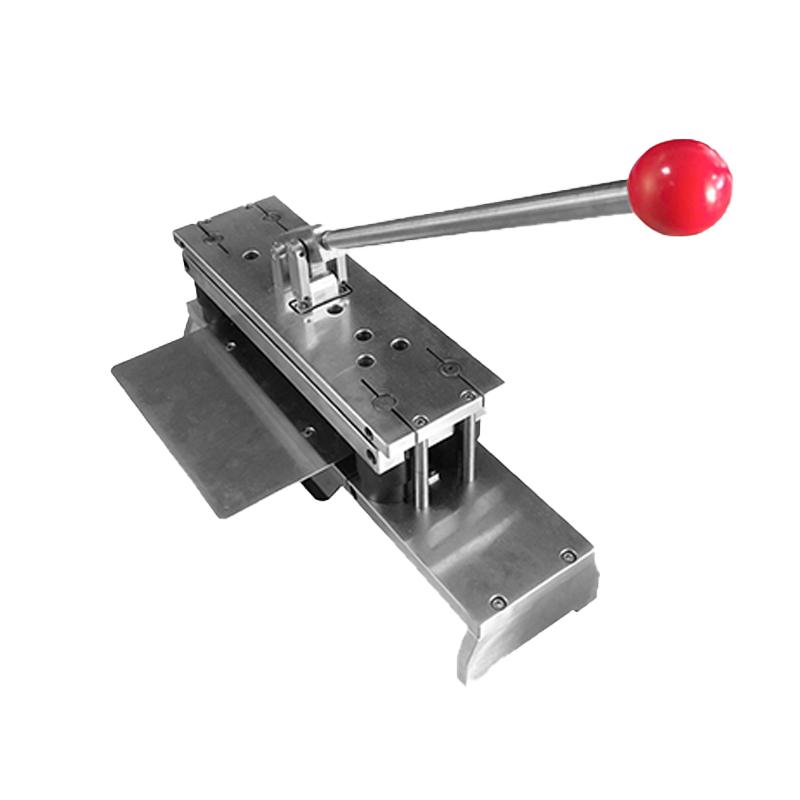

Puyun brand PY-H603B paper Ring Crush Test sampling knife is a special Sampler for paper and Cardboard Ring Crush Test and corrugated core paper Flat Crush Test. The technical indicators fully meet the sampling technical requirements of GB/T 2679.8. The sampling knife adopts bearings with good guiding accuracy and Repeatability, and adopts a reasonable fulcrum structure design to make the sampling more accurate, convenient and lightweight.
Features
1. Adopt Bearings with Excellent Guidance Accuracy and Repeatability
2. Adopt reasonable fulcrum structure design to make sampling more accurate, convenient and lightweight
3. Blade bite control adopts three-point positioning method, High Accuracy Coaxial Concentric Process
4. Built-in imported spring, resilience coefficient attenuation than China spring at least 2 times
5. The parallelism of the two long sides is less than or equal to 0.015mm
6. The tool material is made of chrome steel, molybdenum and vanadium are added, and the CNC numerical control fine grinding is cut with high precision wire, and the high temperature quenching is 3 times, and the durability is higher
Principle
This sampling knife achieves accurate sampling through bearings with good guiding accuracy and Repeatability and reasonable fulcrum structure design. Three-point positioning method and High Accuracy coaxial concentric process are used to ensure accurate sampling size.
Applications
Paper Ring Crush Test, Cardboard Ring Crush Test, Corrugated Core Paper Flat Crush Test
Steps
1. Prepare paper or Cardboard samples
2. Place the sample in the working area of the sampling knife
3. Operate the sampling knife for cutting sampling
4. Remove the sample that meets the size requirements
Notice
• The sampling thickness range should be between 0.1 and 1.2mm
• Check the tool condition before use to ensure cutting accuracy
• Regular maintenance to maintain good equipment performance
• Pay attention to safety during operation to avoid cuts
