Overview

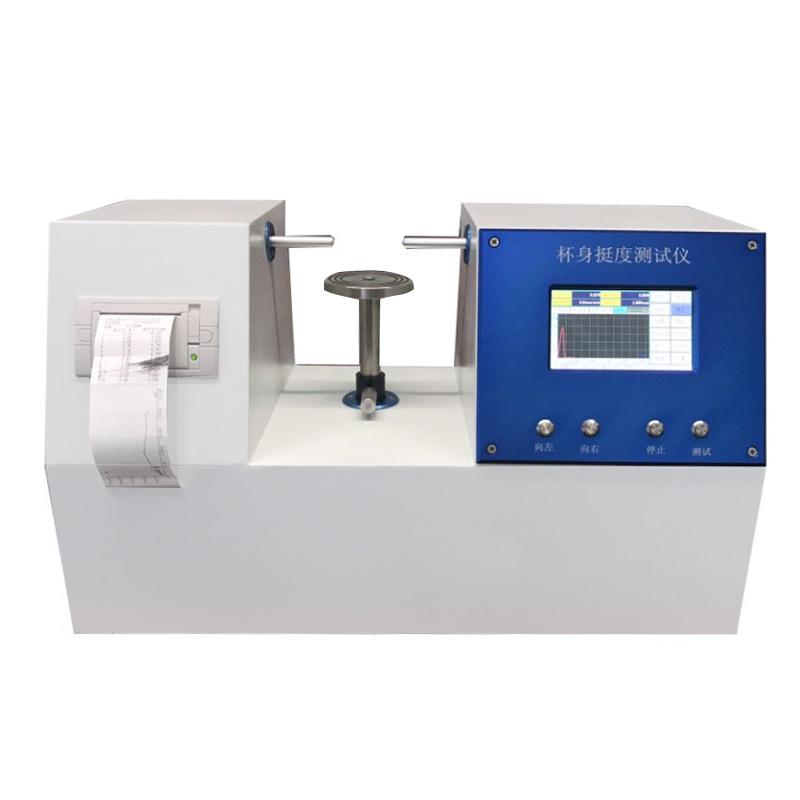

Cup body stiffness tester (model PY-J632) is a special instrument specially designed by PUYUN brand to detect the strength of Cardboard cup body, mainly used to control the physical mass of paper cups by detection. The instrument is suitable for paper cup manufacturers, mass supervision bureaus, university scientific research institutions and other units.
Features
1. Microcomputer processing system, aluminum alloy sand blasting control panel, Touchscreen LCD display
2. Fully automatic electronic testing equipment, easy to use and wider testing range
3. One-click operation of the experimental process to avoid human errors
4. Computer measurement and control automatically determine the initial test status
5. Built-in tray automatic lifting function, Degree of automation
6. Double measurement head structure design, more accurate test data
7. Test with real-time Linear dispersion function
8. Micro printer to print test data at any time
Principle
The cup body stiffness tester is designed with double measurement heads to automatically lift the tray during the test process, apply pressure to the cup body, and measure its stiffness strength. The microcomputer system controls the Test speed, displays the Linear dispersion in real time, and automatically judges the initial state to ensure the accuracy of the data.
Applications
Paper cup manufacturers, mass supervision bureaus, university research institutions
Standards
GB/T 27590、QB/T 2294－1997、JJG157－1995
Steps
1. Connect the power supply to ensure that the working environment meets the requirements
2. Place the paper cup on the tray and adjust it to the appropriate position
3. Set parameters through Touchscreen and start the test with one click
4. The instrument automatically lifts the tray, applies pressure and makes measurements
5. Observe Linear dispersion and data in real time, and automatically stop after the test is completed
6. Use a microprinter to print test data
Notice
• Power supply voltage 220V 50Hz to avoid voltage instability
• Operating Ambient Temperature should be maintained at 20 +/- 15 ° C, Humidity less than 85%
• The diameter of the paper cup should be within the range of 50~ 150mm, and the height should be 30-150mm.
• Check the spherical size of the probe and the deviation of the shaft to the line before the test to ensure that it is less than 0.2mm.
• Avoid human interference with the experimental process to reduce errors
• Regularly calibrate the instrument to ensure measurement accuracy greater than +/- 1%
