Overview

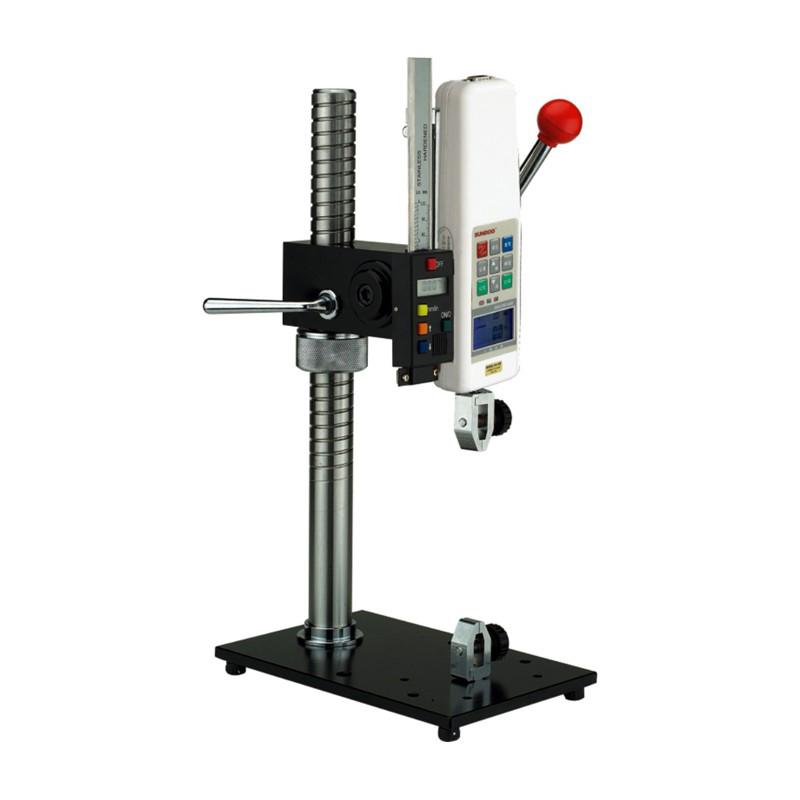

SPJ-B Hand Press Rack is a hand press test equipment equipped with Force Gauge produced by SUNDOO. This product is suitable for various industries and scientific research institutions to conduct tensile and compression load, insertion force, failure test and other tests. It has the characteristics of manual operation, simple and stable, fast and effective, and suitable for batch testing.
Features
1. Adopt gear pair transmission, hand pressure operation
2. The upper and lower heights of the rack can be adjusted
3. Force Gauge up and down with positioning structure
4. Manual operation, simple and stable, fast and effective
5. Suitable for batch testing
Principle
The SPJ-B hand pressure rack realizes hand pressure operation through gear pair transmission, the operator applies pressure manually, Force Gauge measurement tensile load, insertion force and other parameters, the height of the frame can be adjusted and Force Gauge is equipped with positioning structure to ensure the accuracy and Stability of the test.
Applications
Industries and scientific research institutions
Steps
1. Adjust the upper and lower heights of the rack as needed
2. Installation of Force Gauges and Corresponding Fixtures
3. Manually operate the hand press rack for testing
4. Read the test data displayed by the Force Gauge
Notice
• The rated load is 500N, please do not overload it
• Travel is 70mm, pay attention to the Travel Range when operating
• Force Gauges and Fixtures need to be purchased separately
• Check whether the rack and positioning structure are normal before use
