Overview

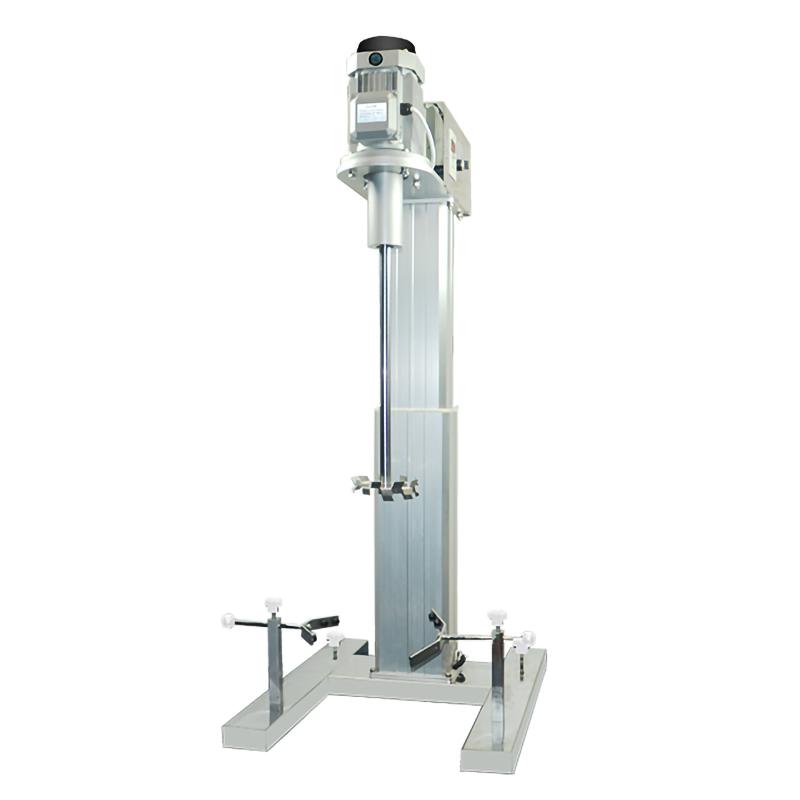

HUXI HR-3000BPF lifting platform pilot Disperser integrates dexterity and convenience. It uses variable frequency motors to operate more stably and with less noise, which can easily meet a variety of high-demand dispersion and mixing experimental requirements. The equipment adopts a high-quality electric lifting platform, which is stable, reliable and durable, can handle 300L materials, Power 3000W, and the speed range is 0~ 2880rpm.
Features
1. Choose a high-quality electric lifting platform for more stable, reliable and durable operation
2. Choose three-phase asynchronous motor, stable operation, less noise, long-term operation, safe and reliable design
3.The dispersion disc is made of good stainless steel with good corrosion resistance
4. The dispersion disc is connected with the hexagon screw and the dispersion shaft, which is easy and flexible to disassemble and assemble
5. Inverter stepless speed regulation, brushless motor, maintenance-free, no spark, no dust, higher safety performance
Principle
The Disperser drives the dispersion shaft swirl/spin through a three-phase asynchronous motor, and the dispersion disc performs high-speed dispersion and stirring operations in the material. The frequency converter is used to achieve stepless speed regulation, and the Rotation speed can be precisely controlled according to the process requirements. The electric lifting platform can adjust the position of the dispersion disc in the material, lifting Travel up to 500mm to ensure uniform dispersion effect.
Applications
Dispersion and stirring experiment
Steps
1. Connect the power supply (220V/380V)
2. Put the material into the processing container
3. Adjust the dispersion disc position through the electric lifting platform
4. Rotation speed (0~ 2880rpm)
5. Start the device for decentralized operations
6. Turn off the power after the job is completed
7. Remove dispersion disc for cleaning and maintenance
Notice
• Power supply voltage matching (220V/380V) before use
• Material viscosity should not exceed 30000cp
• Ensure that the dispersion disc is firmly installed before starting the device
N • Do not touch the swirl/spin parts when the device is running
• Regularly check the running status of the motor and lifting platform
• Please cut off the power supply when cleaning
