YONGLIDA QXP0-100 ISO GrindoMeter single-channe GrindoMeter Cr12 molybdenum vanadium steel

Name: YONGLIDA QXP0-100 ISO GrindoMeter single-channe GrindoMeter Cr12 molybdenum vanadium steel
Brand: YongLiDa
SKU: NB003369
Price: 168.0 USD
Availability: InStock

$ 168.00Ex works

Made of Cr12 molybdenum vanadium steel, with a range of 0 to 100 μm and a Graduation of 10 μm, the single-channe design is convenient for rapid detection of sample fineness in the laboratory.

Model

QXP0-100

Get Quote

Category : Fineness Gauge

Brand : YongLiDa

SKU : NB003369

Service :The delivery and service By NBCLab.Com

Overview

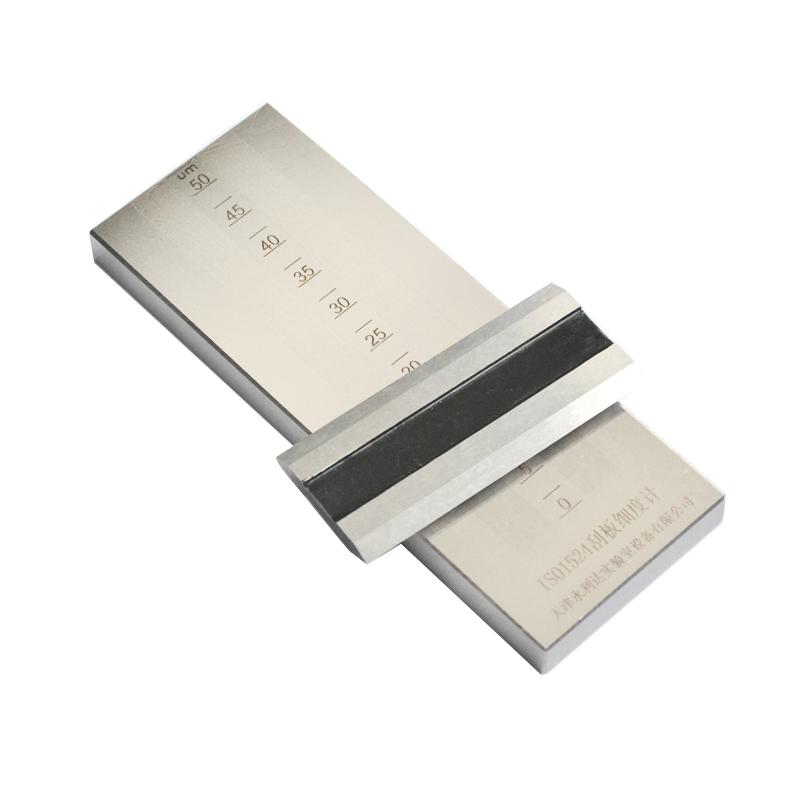

YONGLIDA ISO Grindometer (single-channe) model QXP0-100 is a single-channe Grindometer made of Cr12 molybdenum vanadium steel with a range of 0 to 100 μm, a Graduation of 10 μm, and a Dimension of 175x65x13mm, which can be applied to laboratory testing of GB/T 1724 standard.

Features

1. Made of Cr12 molybdenum vanadium steel 2. Single-channe Grindometer Design 3. Range from 0 to 100 μm 4. Graduation is 10 μm 5. Dimension is 175x65x13mm

Principle

ISO Grindometer scrapes the sample on the scraping groove by drawdown blade, and judges the fineness range according to the distribution of the sample in the scraping groove. Graduation is 10 μm, which can accurately measure the fineness of the sample in the range of 0~ 100 μm.

Applications

Laboratory testing

Standards

GB/T 1724

Steps

1. Prepare the sample to be tested 2. Use the matching drawdown blade to evenly scrape the sample on the scraping groove 3. Observe the distribution of the sample in the scraping groove 4. Read the fineness value according to the scale Step 5 Record test results

Notice

• Make sure the scraper is clean and drying before use • Maintain uniform force when scraping samples • Avoid impact or scratching the scraper • Clean and maintain in time after use • Test according to standard operating procedures

Scraper Type
single-channe
Number of grooves
1
Range
0~100μm
Scale unit
μm
Scraper material
Cr12 molybdenum vanadium
Scraper Size
175*65*13mm
Applicable standard
GB/T 1724
Graduation
10μm
