Overview

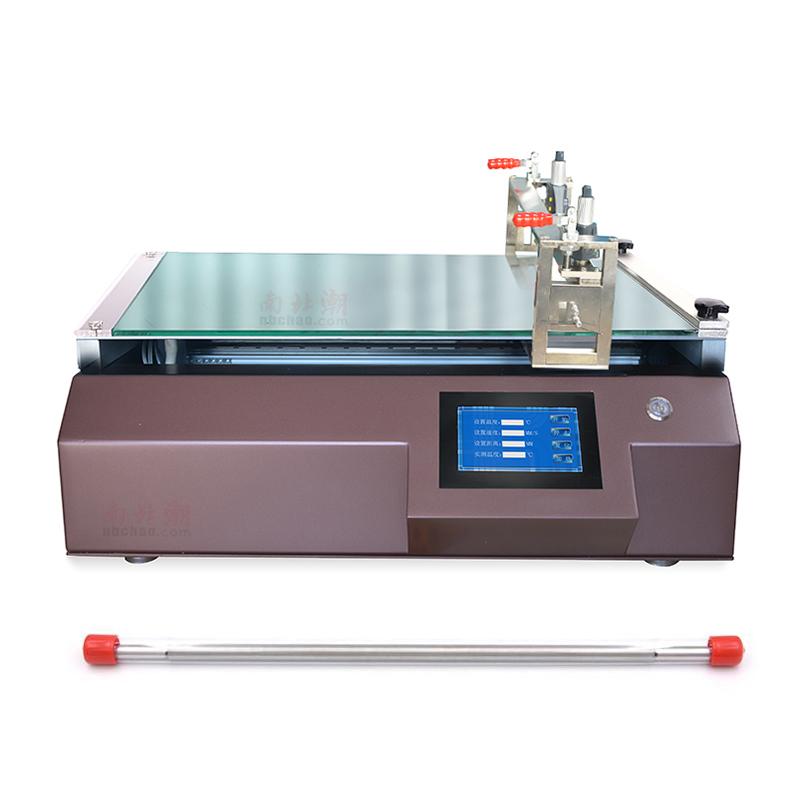

TBJ-B2-XB Automatic Film Applicator is a small Lab Film Applicator for experiments. It adopts imported accessories and has a good price. It is favored by multinational R & D institutions, universities and scientific research institutions at home and abroad. The Spreader coating effect is guaranteed by controlling the speed and stable pressure to ensure uniformity and smoothness, solve the problem of artificial film inconsistency, and improve film reproducibility. Standard 1 China bar and 1 imported bar, the imported bar film accuracy is up to 1μm.
Features
1. Using imported accessories, the price is good and cheap; 2. Control speed and stable pressure to ensure the uniformity and smoothness of Spreader; 3. Improve film reproducibility and reduce manual differences; 4. Standard China and imported bar, imported bar accuracy up to 1μm; 5. Various coating methods, including bar and drawdown blade; 6. Adjustable coating speed, range 5~ 200mm/s; 7. Effective coating area 400 * 300mm, can be customized; 8. Touchscreen control, easy to operate; 9. Optional accessories are rich, such as leakage tank, substrate fixing fixture, etc.; 10. Customizable features such as automatic lame plating, UV curing, etc.
Principle
The Automatic Film Applicator flows through the paint into the film head, combines the bar and drawdown blade, and uniformly coats the material surface by its own gravity. Control the Spreader speed and the pressure applied to the film applicator to ensure the uniformity and smoothness of the Spreader coating.
Applications
Multinational enterprise R & D institutions, domestic and foreign universities, scientific research institutions
Steps
1. Prepare the substrate and fix it with a mechanical fixture; 2. Select the coating method (bar or drawdown blade) and set the thickness and rate of the Spreader; 3. Set the Spreader Travel through Touchscreen control; 4. Start the device and automatically complete the Spreader process; 5. Check the film effect and adjust the parameters if necessary.
Notice
* Make sure that the power supply of the equipment is 220V 50HZ before operation; * Spreader thickness needs to be set according to the bar model or drawdown blade to avoid exceeding the range; * The substrate should be fixed firmly to prevent movement from affecting the uniformity of the Spreader; * The coating speed should not be too fast or too slow, it is recommended to adjust within 5~ 200mm/s; * Regularly clean the film head and bar to keep the equipment hygienic; * Optional accessories such as liquid leakage tanks need to be installed correctly; * Customized functions such as automatic lame plating need to be operated by professionals; * Net weight 55KG of the equipment, pay attention to safety when handling.
