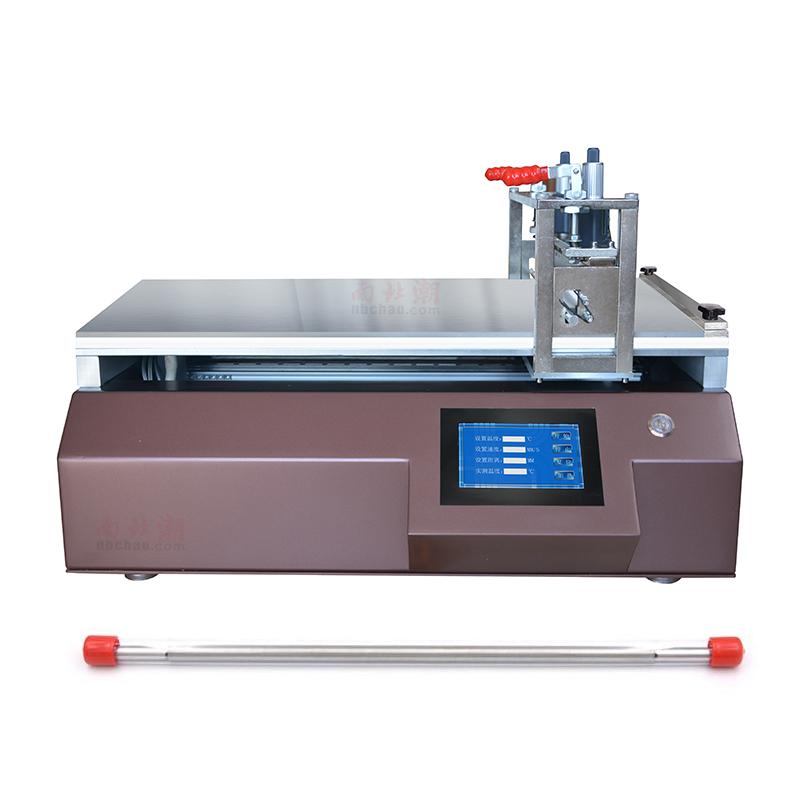

China TBJ-X2-XB Automatic Film Applicator drawdown Bar & blade Spreader accuracy +/- 0.003mm

Name: China TBJ-X2-XB Automatic Film Applicator drawdown Bar & blade Spreader accuracy +/- 0.003mm
Brand: zy
SKU: NB033805
Price: 3220.0 USD
Availability: InStock

$ 3220.00Ex works

Spreader accuracy of +/- 0.003mm, Spreader thickness range of 0.001~ 10mm adjustable, using Vacuum chuck fixed substrate, Touchscreen control easy to operate, to ensure high film repRoducibility.

Model

Get Quote

Category : Automatic Film Applicator

Brand : zy

SKU : NB033805

Service :The delivery and service By NBCLab.Com

Overview

TBJ-X2-XB Automatic Film Applicator adopts imported accessories, which are cheap and favored by multinational R & D institutions, universities and scientific research institutions at home and abroad. By controlling the speed and stable pressure, the uniformity and smoothness of Spreader glue coating are ensured, the problem of artificial film inconsistency is solved, and the film reproducibility is improved. Standard 1 China bar and 1 imported bar, film accuracy up to 1μm.

Features

1. Adopt imported accessories, reliable performance; 2. Control Spreader speed and pressure to ensure Spreader uniformity; 3. Standard China and imported bar, high film accuracy; 4. Support a variety of coating methods (bar + drawdown blade); 5. Spreader parameters adjustable to adapt to different needs; 6. Optional Accessories and custom functions.

Principle

Automatic Film Applicator controls the speed of the Spreader and the pressure applied to the film applicator to achieve accurate Spreader wet-film on different substrates. The combination of bar and drawdown blade is used to ensure the thickness and uniformity of the Spreader, reduce human differences, and improve film reproducibility.

Applications

Multinational enterprise R & D institutions, domestic and foreign universities, scientific research institutions

Standards

Not mentioned

Steps

Not mentioned

Notice

Not mentioned

coating method
Bar + drawdown blade
Coating size
300 * 400Mm (Miscellaneous size can be customized)
Coating table size
300 * 400Mm (can be customized)
Coating table material
aluminum alloy
Substrate clamping method
Vacuum chuck
coating speed
5-200Mm/s (< 5mm/s can be customized)
Speed Control mode
Infinitely variable speed
Drawdown blade type
Integrated drawdown blade
Drawdown blade material
304 stainless steel
Blade Coating Thickness Range
0.001~ 10Mm adjustable
Blade Coating accuracy
±3μm
Bar Specifications
Standard 1 China bar and 1 import bar (film accuracy 1μm)
meyer rod coating thickness range
1-571.5 μm (determined according to bar model)
meyer rod coating accuracy
±0.001mm
Vacuum chuck area
300 * 400Mm (can be customized)
Vacuum aperture diameter
Φ1.2mm
Vacuum hole pitch
20*20mm
Vacuum pump size
380*180*280mm
Control mode
Touchscreen control
display screen
Touchscreen
Host size
630 * 410 * 520Mm (length * width * height)
Host weight
65KG
Host power supply
220V 50HZ
standard accessories
1 China bar, 1 imported bar
Accessories
Leakage tank, substrate fixture, trimming horizontal height support foot device, Glass plate, silicone pad and weight, application width control baffle
optional feature
Automatic lame plating device, UV curing device, automatic inking system, air knife drying, remote control, upper infrared heating, double extrusion Spreader

[Q] Is the price listed on the website the final cost for overseas purchases?

[A] No, it isn't. This is the ex-factory price of the product in the Chinese Mainland. In addition to this price, buyers from different countries need to account for additional costs such as shipping fees, tariffs, and others. For specific regional quotes, please consult our customer service or fill out a quotation form.

[Q] What is the specific process for purchasing the product?

[A] First, please click on the quotation form on the website and fill in detailed information. Our customer service personnel will then send you a quotation based on your specific country and region, confirming payment and delivery methods. Following this, we proceed with contract signing, payment, and shipment. You can then await delivery.

[Q] What should I do if the instrument I purchase needs repair?

[A] After-sales repair for overseas instruments is an unavoidable issue. Our repair terms stipulate that the sender is responsible for the shipping and insurance costs incurred for the repair. Repairs within the warranty period are free, while repair costs beyond the warranty period are determined based on the actual situation.
