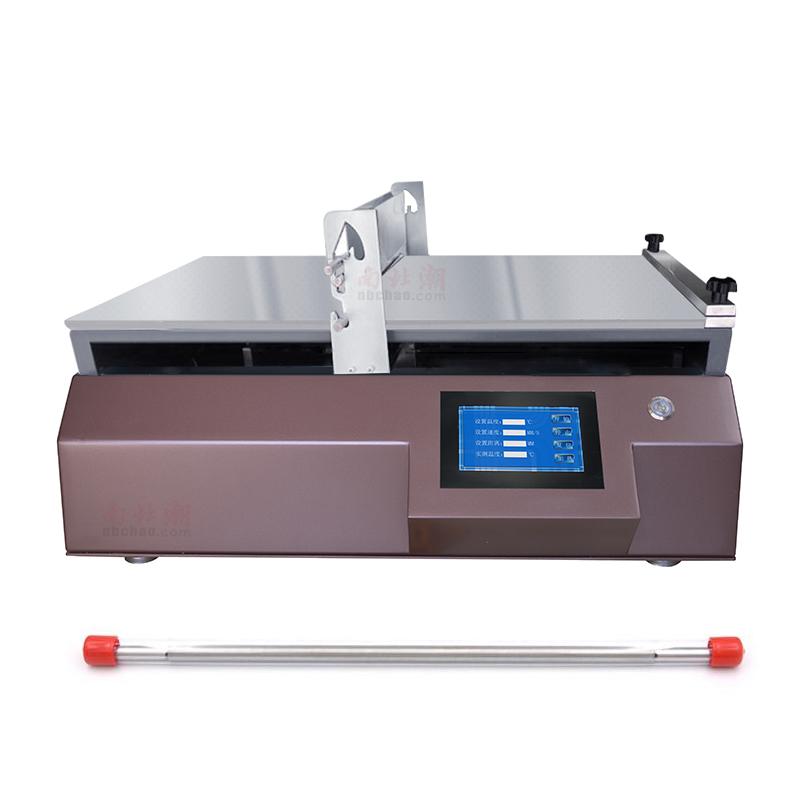

China TBJ-A2-XB Automatic Film Applicator bar Lab Film Applicator +/- 0.001mm accuracy

Name: China TBJ-A2-XB Automatic Film Applicator bar Lab Film Applicator +/- 0.001mm accuracy
Brand: zy
SKU: NB033806
Price: 2010.0 USD
Availability: InStock

$ 2010.00Ex works

Equipped with imported bar accuracy up to 1μm, coating speed 5-200mm/s adjustable, Heating Temperature range RT + -180 ℃, support mechanical fixture to ensure Spreader Stability.

Model

Get Quote

Category : Automatic Film Applicator

Brand : zy

SKU : NB033806

Service :The delivery and service By NBCLab.Com

Overview

The Touch Lab TBJ-A bar Lab Film Applicator is a newly upgraded product for Spreader accurate wet-film on different substrates, which can repeatedly and continuously prepare smooth, flat and flawless test samples. The device comes standard with 1 China bar and 1 imported bar with an accuracy of up to 1μm.

Features

1. The coating method is bar Spreader, the thickness range is 1~ 571.5μm (determined according to the bar model), and the accuracy is +/- 0.001mm. 2. The coating speed range is 5~ 200mm/s (< 5mm/s can be customized), and the effective coating area is 400 * 300mm (can be customized). 3. Substrate clamping method adopts mechanical fixture, Control mode is Touchscreen control 4. Temperature range RT +~ 180 ℃, temperature accuracy +/- 3 ℃, Heating mode is Platen Heating 5. Accessories and customization are available, including leakage tank, automatic lame plating device, UV curing device, etc

Principle

The Automatic Film Applicator uses the bar coating method to uniformly Spreader the substrate with a precision-controlled bar to form a wet-film of a specific thickness. The device provides a controlled temperature environment through the Platen Heating system, combined with a mechanical fixture to ensure the stability of the substrate, to achieve repeated, continuous Preparative smooth and flat test samples.

Applications

Corporate R & D Institutions, Universities & colleges

coating method
bar
Coating size
300mm*400mm
Effective application width
300mm
Effective application length
400mm
Coating table size
622*400*280mm
Coating table material
aluminum alloy
Substrate clamping method
Mechanical fixture
coating speed
5-200mm/s
Speed Control mode
Touchscreen control
Bar Specifications
Standard 1 China, 1 imported (accuracy 1μm)
Bar application width
300mm
meyer rod coating thickness range
1-571.5μm
meyer rod coating accuracy
±0.001mm
Heating element
Platen Heating
Heating location
baseplate
Temperature range
RT+~180℃
Temperature control accuracy
±3℃
Control mode
Touchscreen control
display screen
Touchscreen
Host size
622*400*280mm
Host weight
60kg
Host power supply
Single phase 220V 50Hz 100VA
total power consumption
100VA
standard accessories
1 China bar, 1 import bar
Accessories
Leakage tank, substrate fixture, trimming horizontal height support foot device, Glass plate, silicone pad and weight, application width control baffle
optional feature
Automatic lame plating device, UV curing device, automatic inking system, air knife drying, remote control, upper infrared heating, double extrusion Spreader

[Q] Is the price listed on the website the final cost for overseas purchases?

[A] No, it isn't. This is the ex-factory price of the product in the Chinese Mainland. In addition to this price, buyers from different countries need to account for additional costs such as shipping fees, tariffs, and others. For specific regional quotes, please consult our customer service or fill out a quotation form.

[Q] What is the specific process for purchasing the product?

[A] First, please click on the quotation form on the website and fill in detailed information. Our customer service personnel will then send you a quotation based on your specific country and region, confirming payment and delivery methods. Following this, we proceed with contract signing, payment, and shipment. You can then await delivery.

[Q] What should I do if the instrument I purchase needs repair?

[A] After-sales repair for overseas instruments is an unavoidable issue. Our repair terms stipulate that the sender is responsible for the shipping and insurance costs incurred for the repair. Repairs within the warranty period are free, while repair costs beyond the warranty period are determined based on the actual situation.
