Overview

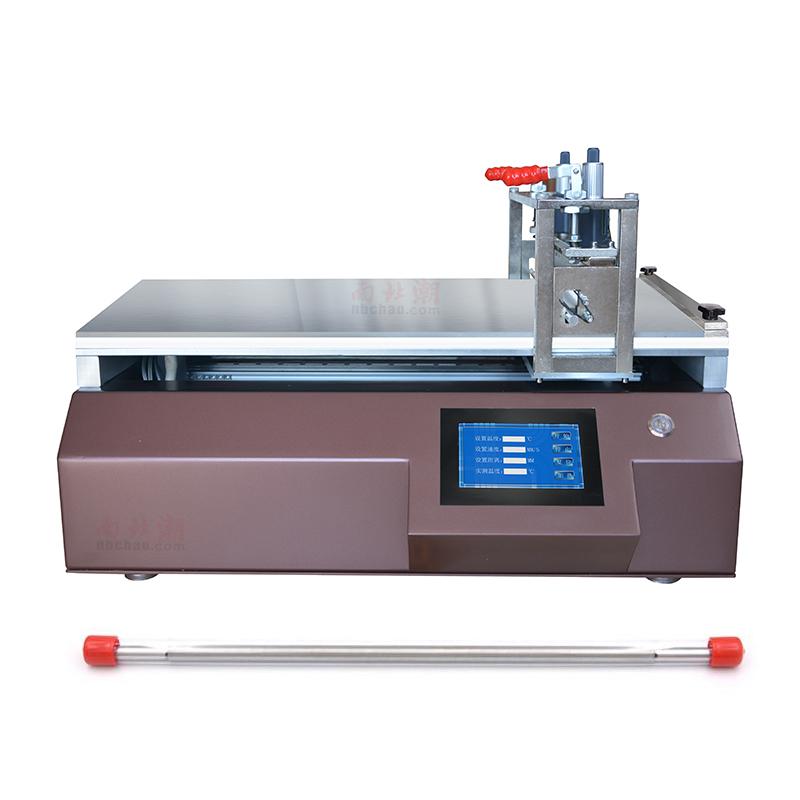

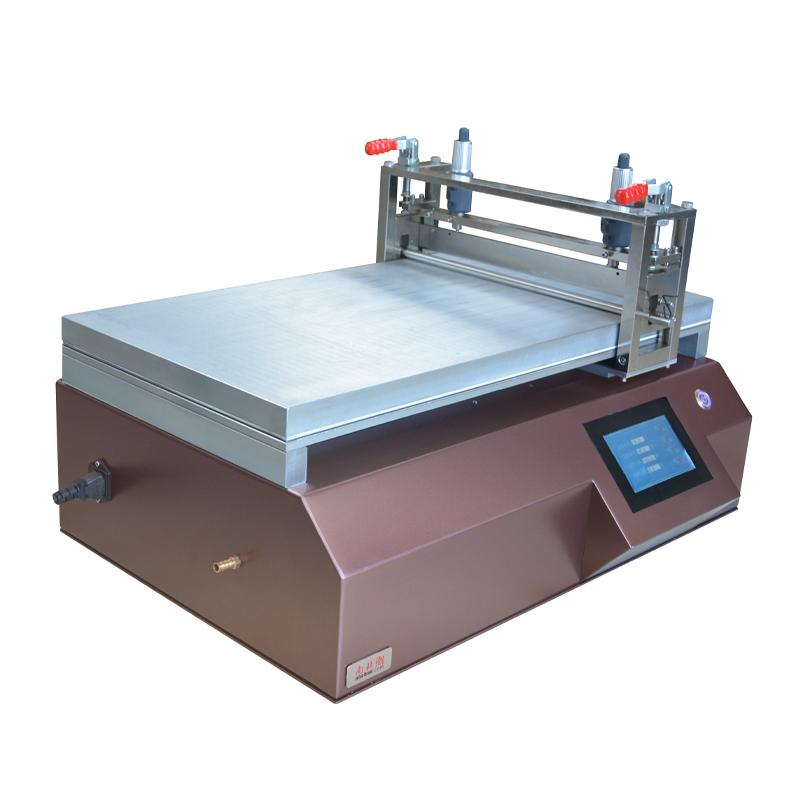

TBJ-B4-XB Automatic Film Applicator is a small experimental Lab Film Applicator with imported accessories and low price. It is favored by multinational R & D institutions, well-known universities and scientific research institutions at home and abroad. The uniformity and smoothness of Spreader's gluing are guaranteed by controlling the speed and stable pressure. Standard 1 China bar and 1 imported bar with an accuracy of up to 1μm.
Features
1. Using imported accessories, reliable performance
2. Excellent price and high cost performance
3. Precise control speed and stable pressure
4. 1 bar each for China and imported as standard
5. Support a variety of coating methods: bar + adjustable drawdown blade
6. High Spreader accuracy, Blade Coating accuracy +/- 0.003mm

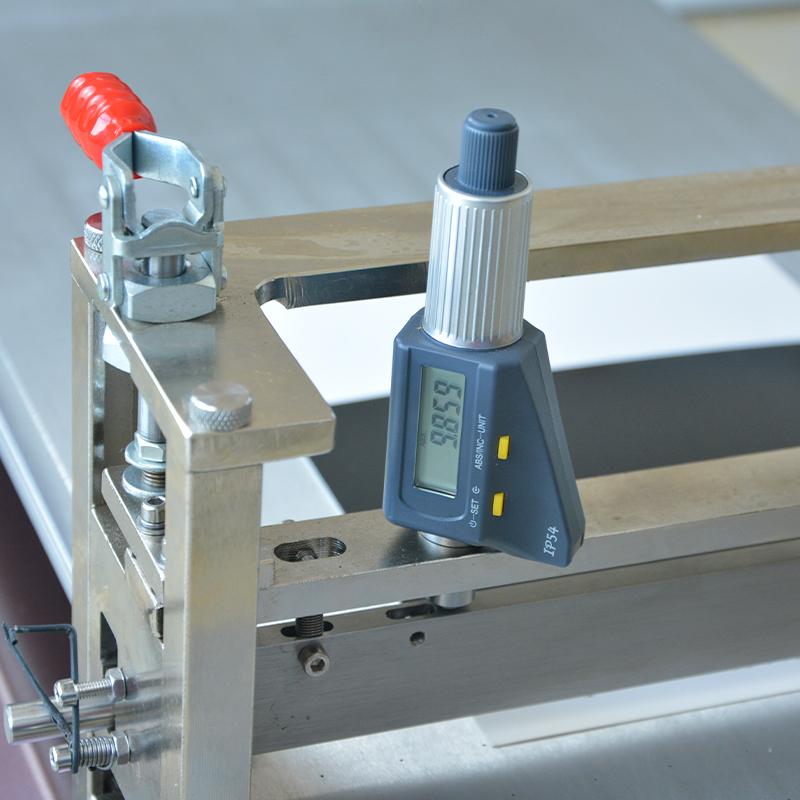

7. Spreader thickness range, drawdown blade 0.001~ 10mm adjustable
8. Adjustable coating speed range 5~ 200mm/s
9. Heating Temperature range RT +~ 180 ℃

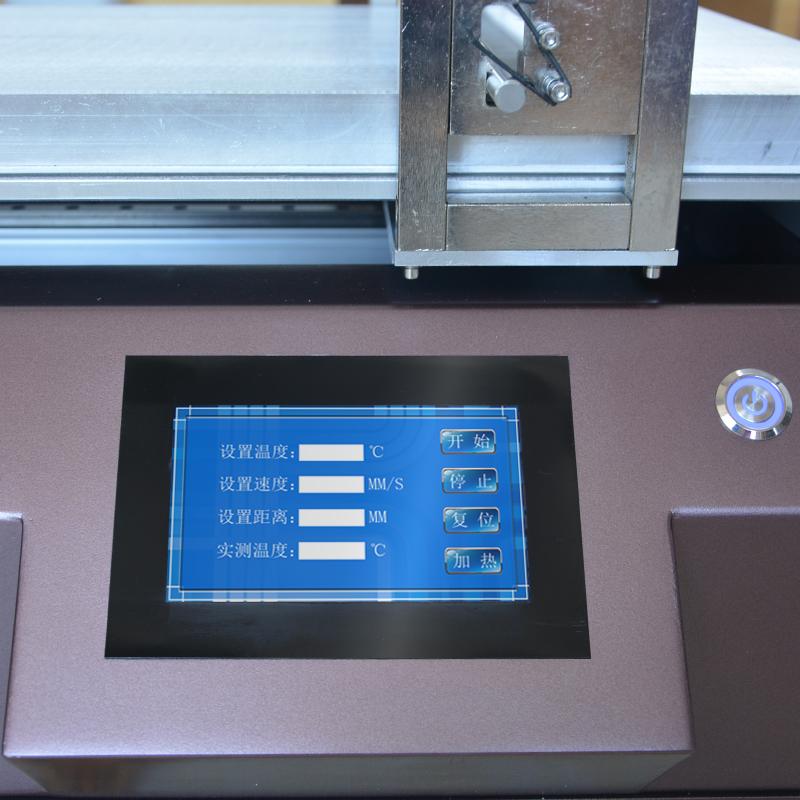

10. Touchscreen control, easy to operate
11. Support multiple customization functions and optional Accessories
Principle

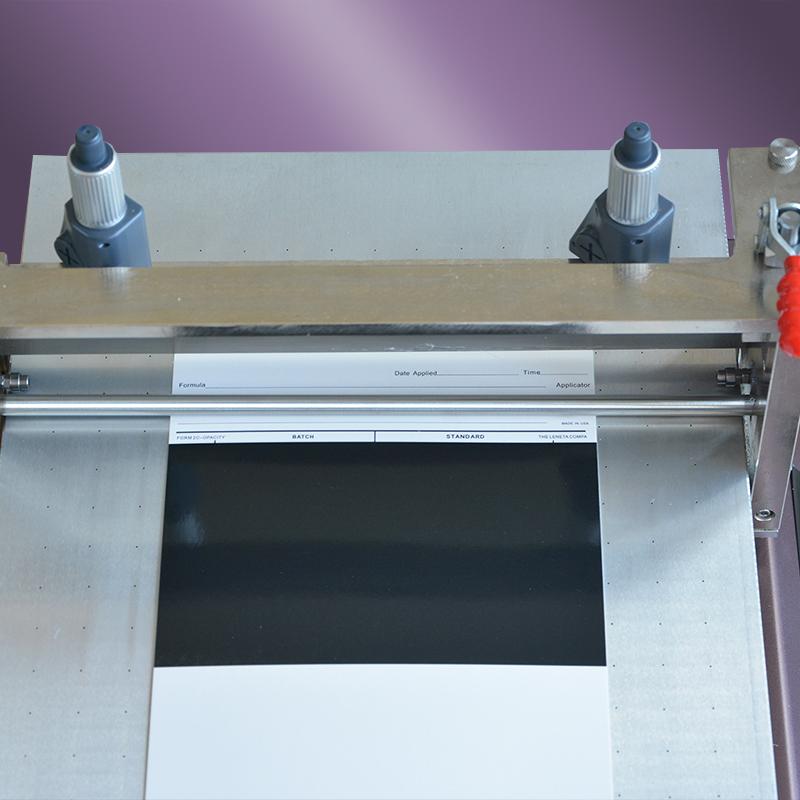

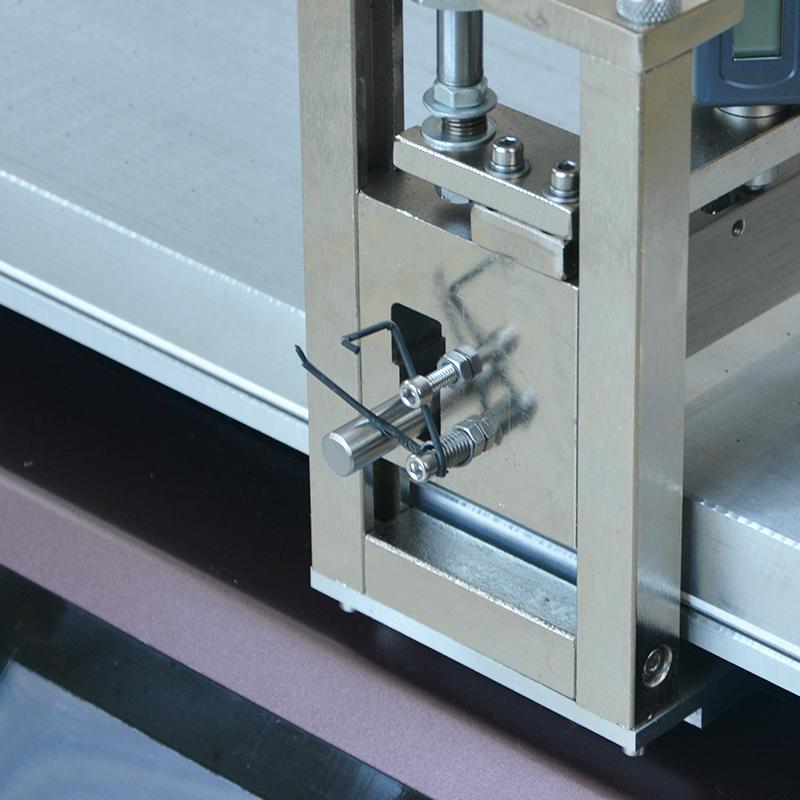

Spreader material is homogenized on the surface of the substrate with a bar or drawdown blade by controlling the Spreader speed and applying a steady pressure. The substrate is heated by Platen Heating method, and the mechanical fixture ensures the stability of the substrate for accurate Spreader thickness and uniformity control.
Applications
Multinational enterprise R & D institutions, domestic and foreign universities, scientific research institutions, laboratories Spreader test
Steps
1. Prepare the substrate and fix it on the mechanical fixture
2. Select the coating method (bar or drawdown blade) and install the corresponding tool
3. Set Spreader Parameters: Speed, Thickness, Travel, etc
4. If heating is required, set the heating temperature
5. Start the Spreader process via Touchscreen
6. Remove the sample after completing the Spreader
Notice
• Make sure the equipment is installed horizontally before use
• Choose the appropriate fixture or weight according to the thickness of the substrate
• Spreader thickness must be within the allowable range of bars or drawdown blades
• Pay attention to Temperature Uniformity Control when Heating
• Customized functions need to confirm compatibility in advance
• Regular cleaning and maintenance of Spreader tools
