Overview

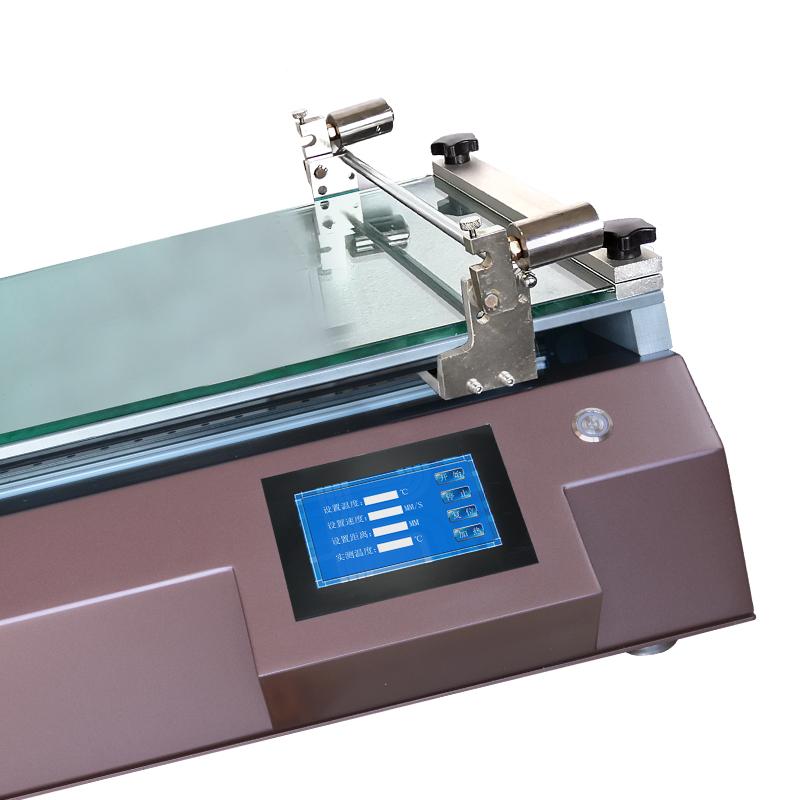

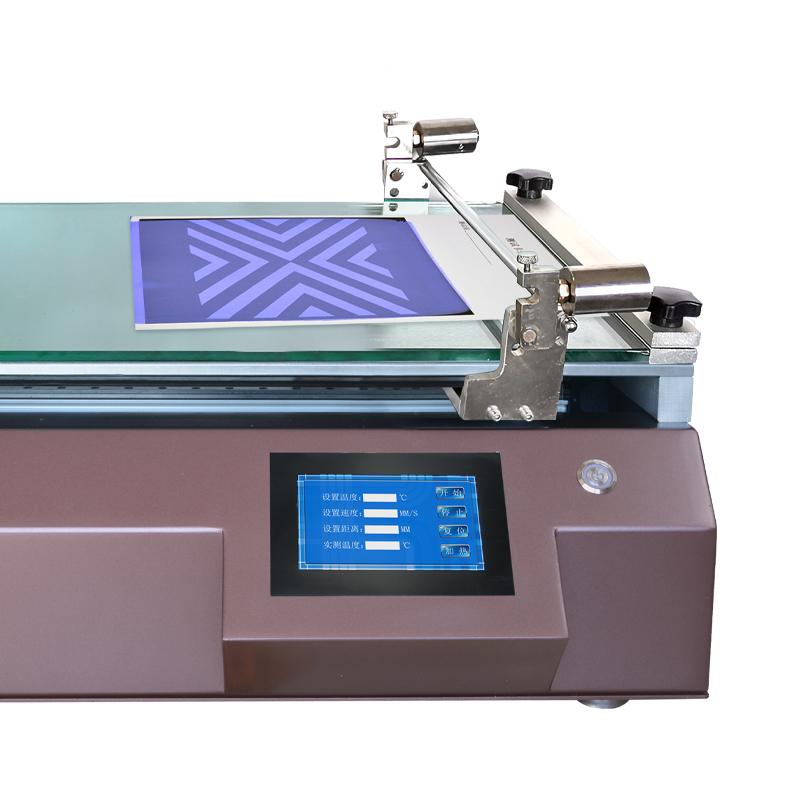

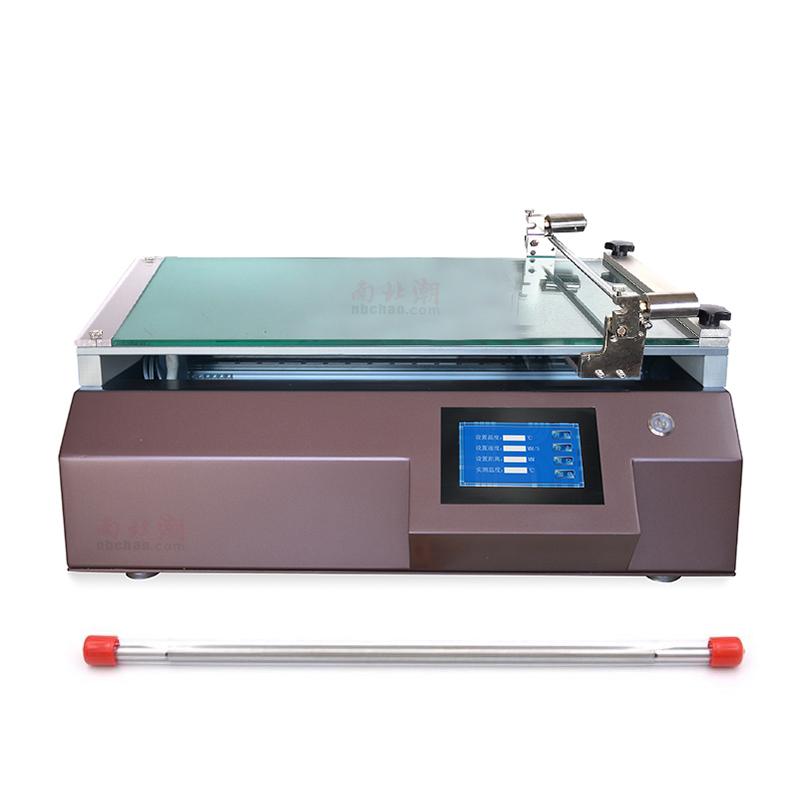

The TBJ-A1 bar Lab Film Applicator is a newly upgraded product. It is carefully designed for Spreader accurate wet-film on different substrates. It can repeatedly and continuously prepare smooth, flat and flawless test samples. After the equipment was put into the market, it was favored by many familiar companies, R & D institutions, Universities & colleges. This Automatic film applicator comes standard with 1 China bar and 1 imported bar with an accuracy of up to 1μm.
Features
1. coating method: bar Spreader
2. meyer rod coating thickness range: 1~ 571.5μm (Spreader thickness is determined according to bar model)
3. meyer rod coating accuracy ： +/- 0.001mm
4. Coating speed: 5~ 200mm/s (< 5mm/s can be customized)
5. effective coating area: 400 * 300mm (can be customized)
6. Spreader Travel: Digital arbitrary setting within the range of 1~ 400mm

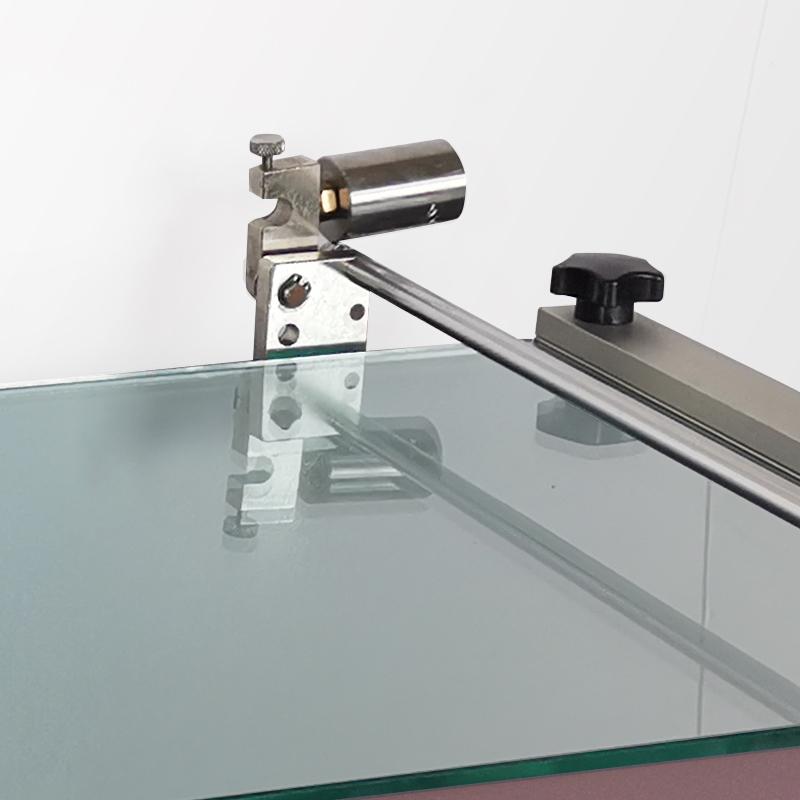

7. Substrate clamping method: mechanical fixture

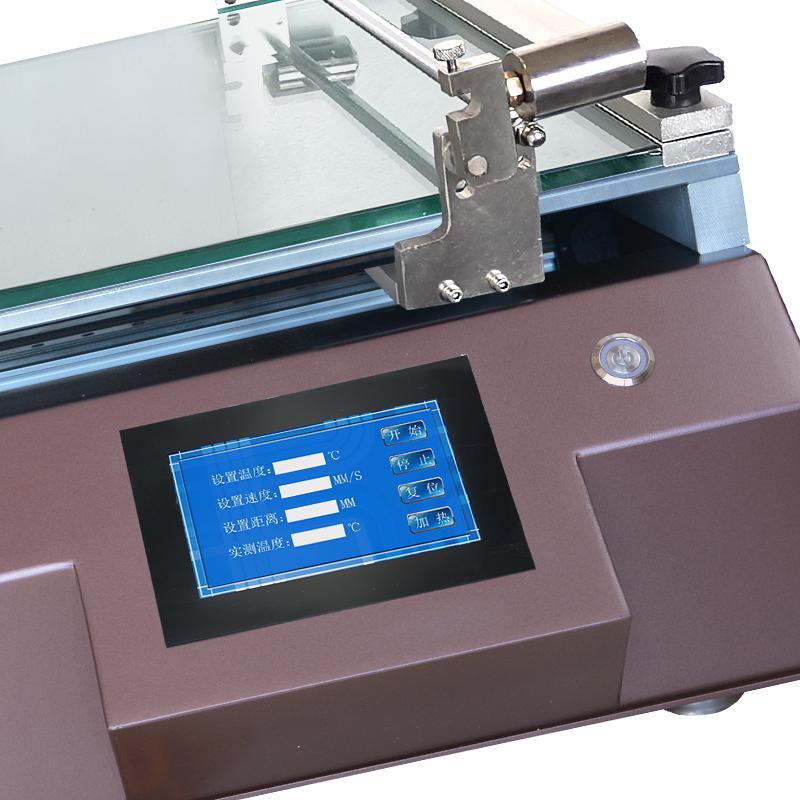

8. Control mode: Touchscreen control
9. Speed control: infinitely variable speed
10. Bottom plate material: Glass
Principle
Spreader accurate wet-film on different substrates by bar coating method. Mechanical fixture fixture is used to fix the substrate, and the coating speed and Travel are controlled by Touchscreen to achieve repeated and continuous preparation of smooth, flat and flawless test samples.
Applications
Companies, Research Institutions, Universities & colleges
Steps
1. Prepare the substrate and fix it on the mechanical fixture
2. Choose the right bar model according to your needs
3. Set coating speed and Travel parameters via Touchscreen
4. Start the device for Spreader operation
5. Remove the sample after completing the Spreader
Notice
• Spreader thickness range is determined according to bar model
• Customized coating speed below 5mm/s
• Customized effective coating areas
• Make sure the substrate is firmly fixed before use
• Optional silicone pad and weight according to uneven thickness of substrate
• Accessories such as leakage tank and substrate fixing fixture are available.
