Overview

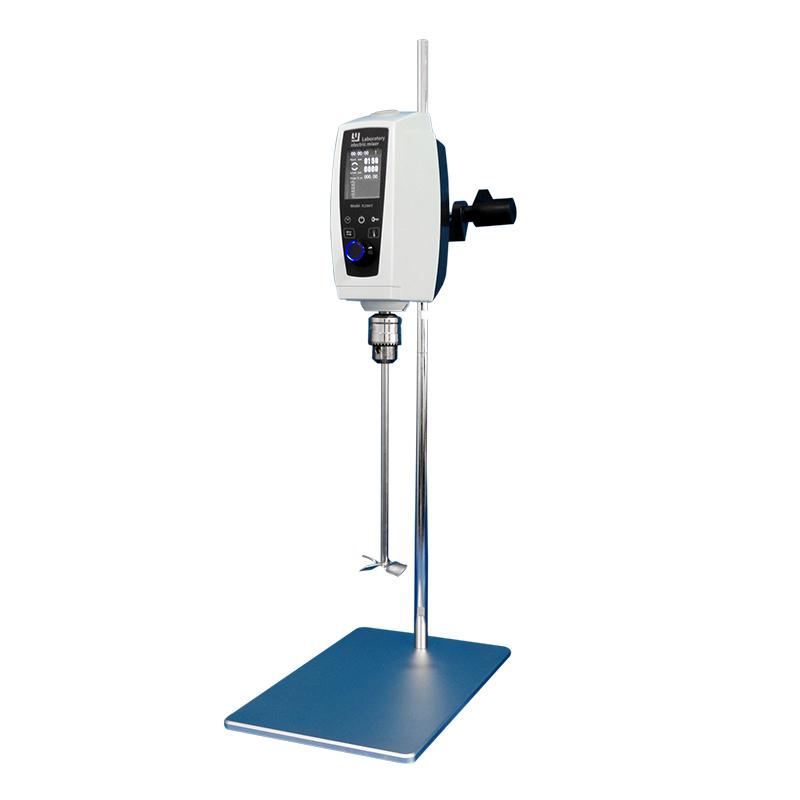

The LANYU K300T brushless DC constant speed Stirrer is driven by a brushless DC motor, which is suitable for stirring and mixing low to medium and high viscosity liquids in the laboratory. The machine has a reasonable and compact structure, with ultra-low noise and maintenance-free characteristics. The stirring Rotation speed is controlled by a microprocessor, which can instantly and effectively compensate for the Rotation speed changes caused by load changes and Power supply voltage fluctuations, ensuring constant speed and reliable operation.
Features
1. Driven by brushless DC motor, maintenance-free
2. Rotation speed controlled by microprocessor, immediate compensation for load and voltage fluctuations, constant speed reliable
3. Built-in automatic overload protection device to ensure long-term high-load continuous operation safety
4. Penetrating stirring chuck to expand the experimental application function of various types of stirringrod
5. Rotation speed of stirring is displayed digitally to ensure intuitive collection of experimental data
6. Stepless stirring speed regulation, meet the stirring Rotation speed correction at any time in the experiment
7. Stable Rotation speed, competent for high viscosity medium, Stock mixing
Principle
The Stirrer is driven by a brushless DC motor, and the stirring Rotation speed is controlled by a microprocessor, which can instantly and effectively compensate for the Rotation speed changes caused by load changes and Power supply voltage fluctuations, so as to achieve constant speed and reliable stirring operation.
Applications
Laboratory low viscosity liquid stirring, laboratory viscosity liquid stirring, laboratory high viscosity liquid stirring
Standards
Protection Rating IP 40
Steps
1. Connect AC110~ 220V power supply
2. Install suitable stirringrod to penetrating stirring chuck
3. Rotation speed by digital knob
4. Set the timing time as required
5. Start the equipment and start stirring
6. Rotation speed and running status monitoring via TFT display
Notice
• Power supply voltage must be within the range of AC110~ 220V
• Ambient Temperature should be maintained between 5 and 40 ° C
• The relative humidity should not exceed 80%
• Impeller clamping range is 1~ 10mm
• Processing capacity up to 50L
• Maximum viscosity is 150000mPa.s
• Speed range 30~ 2000rpm
• Timer Range 1~ 6000min
• Note Device Protection Rating is IP 40
