Overview

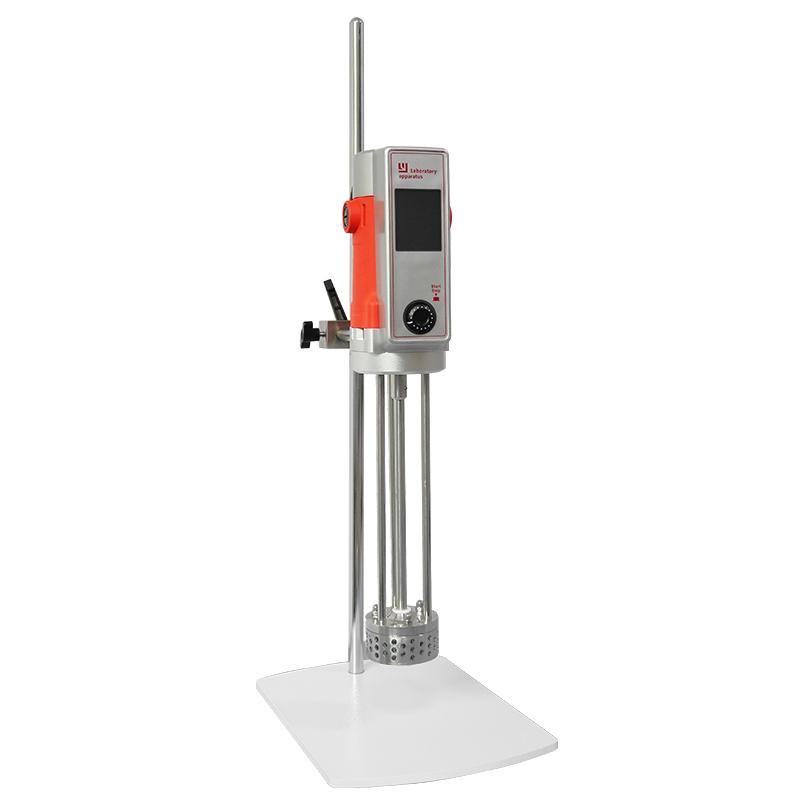

LANYU LYE500W-T (set 1) High shear dispersion Mulser 316 material is driven by a compact series micro high-speed motor, which is suitable for stirring and mixing of low to medium and high viscosity liquids in laboratories or pilot workshops, and shearing and emulsification of crushed granular materials in liquid media. The machine is composed of a high-speed motor, a shearing emulsification working head and a speed control controller. The driving host adopts good engineering plastics and die-casting aluminum alloys as the body, and the running state is stable. The working head is made of good stainless steel and has a wide range of experimental applications. The running Rotation speed is controlled by a microprocessor, which can immediately and effectively compensate for the change of Rotation speed caused by load changes and Power supply voltage fluctuations. The constant speed is reliable.
Features
1. Built-in soft start and automatic overload protection ensure the safety of continuous operation at full load for a long time.
2. Rotation speed stepless adjustment, to meet the experimental stirring Rotation speed correction at any time.
3. Voltage, Frequency, Current, Output Power, Output Torque and other real-time numerical display for experimental data collection to provide convenience.
4. Run the timing control function to ensure that the timing of the experiment is effectively controllable.
5. The working head is made of SS316L stainless steel with strong corrosion resistance.
6. The working head stator configuration of different specifications meets the different experimental requirements such as crushing, emulsification, homogenization, coalescence, suspension, dissolving and stirring.
Principle
The experimental equipment is driven by a high-speed motor to rotate the stator with precision matching of the shearing emulsification working head. Under the high-speed swirl/spin of the rotor, high-frequency, strong circumferential tangential velocity, angular velocity and other comprehensive kinetic energy are formed, which prompts the experimental material to be sucked into the rotor area from the bottom of the experimental vessel and thrown out of the stator hole under the action of huge centrifugal force. The stator and rotor form strong, reciprocating hydraulic shearing, friction, centrifugal extrusion, liquid flow collision and other comprehensive effects in a reasonable narrow gap. The experimental material is cycled in the container and bears tens of thousands of shearing, tearing, impact and mixing per minute, so as to achieve the effect of shearing emulsification. Its working process efficiency is about a thousand times higher than that of ordinary stirring.
Applications
Tissue dispersion in the field of biotechnology, sample preparation, enzyme treatment in the food industry, industrial, cosmetic industry, paints industry and Petrochemicals and other liquid and liquid phase, liquid and solid phase experiments, homogenization and emulsification processes in the production of dairy products, beverages, cosmetics, pharmaceuticals, etc
Steps
1. Place the equipment in a clean drying place to ensure that the Ambient Temperature does not exceed 40 ° C.
2. Connect the power supply, if used in a humid environment, please use a leakage protection device.
3. Select the appropriate head stator configuration according to the experimental requirements.
4. Set the Speed range (1000~ 14000rpm) and Timer Range (1~ 1000min).
5. Start the device, perform stepless speed regulation through the touch knob, and monitor the real-time display parameters.
6. After the experiment, turn off the power and clean the equipment.
Notice
• The machine should be placed in a clean drying place, keep it clean and tidy to prevent moisture, the operating Environment temperature should not exceed 40 ° C, and all kinds of foreign matter should be strictly prevented from splashing into the motor.
• When this machine is used in a humid environment, please use a leakage protection device to ensure the personal safety of the operator.
• This machine is used in the power grid with intense voltage fluctuations, which will cause the Rotation speed to lose control. Please use a power supply voltage stabilizer.
When this machine is used in a strong corrosion environment, in order to prevent mechanical and electrical performance damage of the equipment, please pay attention to the necessary protective measures.
• In case of volatile flammable and other media experiments, effective measures to prevent the emission of flammable gases are required to avoid flammable and explosive gases from igniting and causing fire accidents.
