Overview

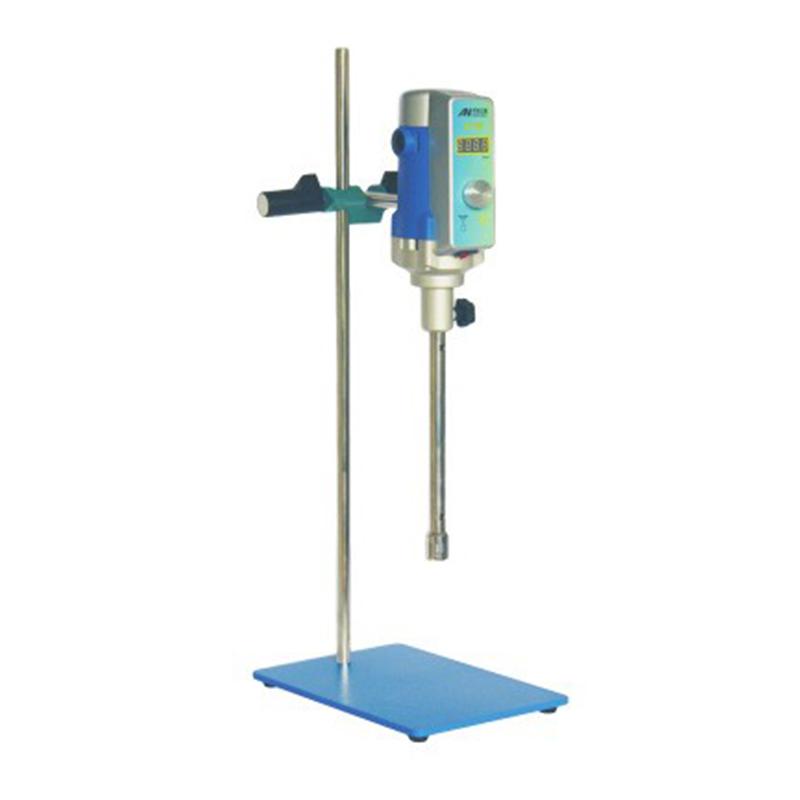

The AD25 High Shear Disperse Mulser is driven by a high-speed motor, which is suitable for low to medium and high viscosity liquid mixing or liquid medium separation, tissue cell crushing, etc. The integrated structure of the drive output and the positioning of the working head ensures stable operation. The working head is made of SS 316L stainless steel, which has a wide range of experimental applications.
Features
1. Run Rotation speed microprocessor control, with instant compensation for Rotation speed changes caused by load changes and power fluctuations, constant speed and reliable
2. Built-in soft start and automatic overload protection ensure the safety of continuous operation at full load for a certain period of time
3. Rotation speed stepless adjustment, meet the experimental Rotation speed correction at any time
4. Rotation speed of digital display is intuitive, and experimental data collection is convenient
5. Run timing control to ensure effective control of experimental time
6. The working head is made of SS 316L stainless steel, with strong corrosion resistance
Principle
The device uses a high-speed motor to drive the working head swirl/spin, generating high shear force to achieve dispersion, emulsification and homogenization of liquids. The microprocessor Control system monitors and compensates for changes in Rotation speed in real time, ensuring constant Rotation speed and stable treatment results under different load conditions.
Applications
Liquid mixing, dispensing, tissue crushing, emulsification homogenization
Steps
1. Connect the power supply and ensure that the voltage meets the requirements of AC220V
2. Select the appropriate working head according to the experimental requirements and install it
3. Rotation speed required to adjust the combined control knob setting (1000~ 28000rpm range)
4. Immerse the working head in the liquid to be treated, ensuring that the immersion height is between 40 and 220mm
5. Start the device and observe the Rotation speed of the LED display
6. Set up running timing control
7. Turn off the power after the experiment is completed and clean the working head
Notice
• Before use, please confirm that the Rated voltage is AC220V, Frequency 50/60HZ
• The height of the working head immersed in the liquid should be within the range of 40mm~ 220mm
• Ambient Temperature shall not exceed 40 ° C, relative humidity shall not exceed 80%
• The maximum operating temperature is 120 ° C, please do not use it over temperature
• The maximum processing viscosity is 5000cp, please do not use beyond the range
• Standard Processing capacity is 50~ 1500mL, please operate within this range
The equipment has an automatic overload protection function, but please avoid running at full capacity for a long time
• Regularly check the working head and bearing status to ensure the normal operation of the equipment
