Overview

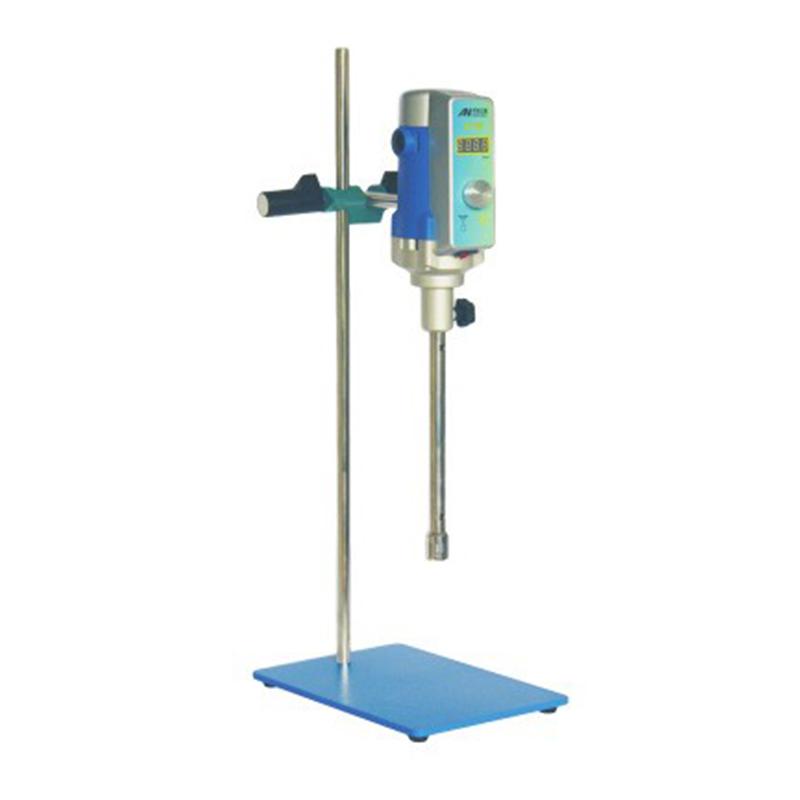

The AD25 Disperse Homogenizer is a high shear dispersion Mulser, driven by a high-speed motor, suitable for low to medium and high viscosity liquid mixing or liquid medium separation, tissue cell crushing, etc. The device has an integrated structure design, stable operation, the working head is made of stainless steel, and it has a wide range of experimental applications. It is equipped with a microprocessing Control system to ensure constant speed and reliable operation.
Features
1. Integrated structure of drive output and working head positioning, more stable running state
2. The working head is made of good stainless steel, with a wide range of experimental applications
3. Running Rotation speed microprocessor control, with instant compensation for Rotation speed changes caused by load changes and power fluctuations, constant speed and reliable
4. Built-in soft start and automatic overload protection ensure the safety of continuous operation at full load for a certain period of time
5. Rotation speed stepless adjustment, meet the experimental Rotation speed correction at any time
6. Rotation speed of digital display is intuitive, and experimental data collection is convenient
7. Run timing control to ensure effective control of experimental time
Principle
The AD25 Disperse Homogenizer drives the working head swirl/spin through a high-speed motor to generate high shear force for liquid mixing, dispersion, emulsification and crushing of tissue cells. The Microprocessing Control system monitors and compensates for changes in Rotation speed in real time, maintaining constant speed operation to ensure stable treatment results.
Applications
Liquid mixing, dispensing, tissue crushing
Steps
1. Connect the power supply, ensure that the Rated voltage is AC220V
2. Immerse the working head in the liquid, ensuring that the immersion height is between 40mm and 220mm
3. Set the required Rotation speed through the combined control knob, the range is 1000~ 28000rpm
4. Set the running timing as required
5. Start the device and observe the LED display Rotation speed
6. After the experiment is completed, turn off the equipment and clean the working head
Notice
• Permissible Ambient Temperature ≤ 40 ℃
• Allowable relative humidity ≤ 80%
• Maximum operating temperature 120 ° C
• Minimum immersion liquid height 40mm
• Maximum immersion liquid height 220mm
• Maximum processing viscosity 5000cp
• Processing capacity 50~ 1500mL
