Overview

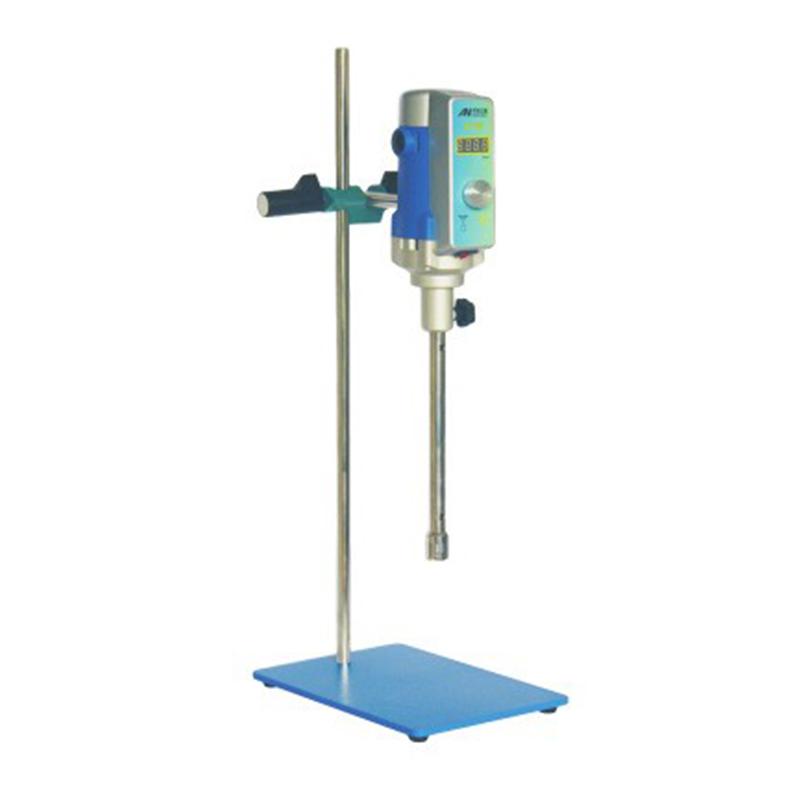

The AD25 (25G) High Shear Dispersion Mulser is driven by a high-speed motor and is suitable for mixing, dispersing, emulsification and crushing of low to medium and high viscosity liquids. The device adopts an integrated structure of drive output and working head for stable operation. The working head is made of SS 316L stainless steel, which is widely used in experiments. It has functions such as stepless speed regulation, digital display, and timing control to ensure convenient experimental data collection and safe operation.
Features
1. Driven by a high-speed motor, it is suitable for handling liquids of various viscosities.
2. The drive output and working head are integrated, resulting in more stable operation.
3. The working head is made of SS 316L stainless steel, which is resistant to corrosion and has a wide range of applications.
4. Rotation speed controlled by microprocessor, instant compensation for load and power fluctuation, constant speed and reliability.
5. Built-in soft start and automatic overload protection to support full load continuous operation.
6. Stepless speed regulation, Speed range 1000~ 28000rpm, to meet the experimental needs.
7. LED digital display Rotation speed, intuitive and convenient data collection.
8. Run timing control to effectively manage the experiment time.
9. Rotation speed memory function, easy to operate.
Principle
The AD25 Disperse Homogenizer uses a high-speed motor to drive the working head swirl/spin, generating high shear force for liquid mixing, dispersion, emulsification and cell crushing. The microprocessor controls the Rotation speed to automatically compensate for load changes and power fluctuations to maintain constant speed operation; soft start and overload protection mechanisms ensure equipment Stability and safety in continuous operation.
Applications
Liquid mixing, dispersion, emulsification, histiocyte crushing
Standards
Rated voltage AC220V, Rated Frequency 50/60HZ, Duty Cycle S1 (continuous)
Steps
1. Connect the power supply and ensure that the voltage is AC220V.
2. Dip the working head into the liquid, with a minimum height of 50mm and a maximum height of 225mm.
3. Use the combined control knob to turn on the device and adjust the stepless speed to the required Rotation speed (1000~ 28000rpm).
4. Rotation speed is monitored through LED display and running time is controlled by timing function.
5. After the experiment, turn off the power and clean the working head.
Notice
• Ensure that the Ambient Temperature does not exceed 40 ° C and the relative humidity does not exceed 80%.
• The height of the working head immersed in the liquid should be between 50mm and 225mm.
• The maximum processing viscosity does not exceed 5000cp, and the standard Processing capacity is 80~ 5000mL.
The maximum operating temperature should not exceed 120 ° C to avoid overheating damage.
• In case of overload during operation, the equipment will automatically protect and check the load.
• Regularly check the working head and bearing material (PTFE) to ensure no abrasion.
