Overview

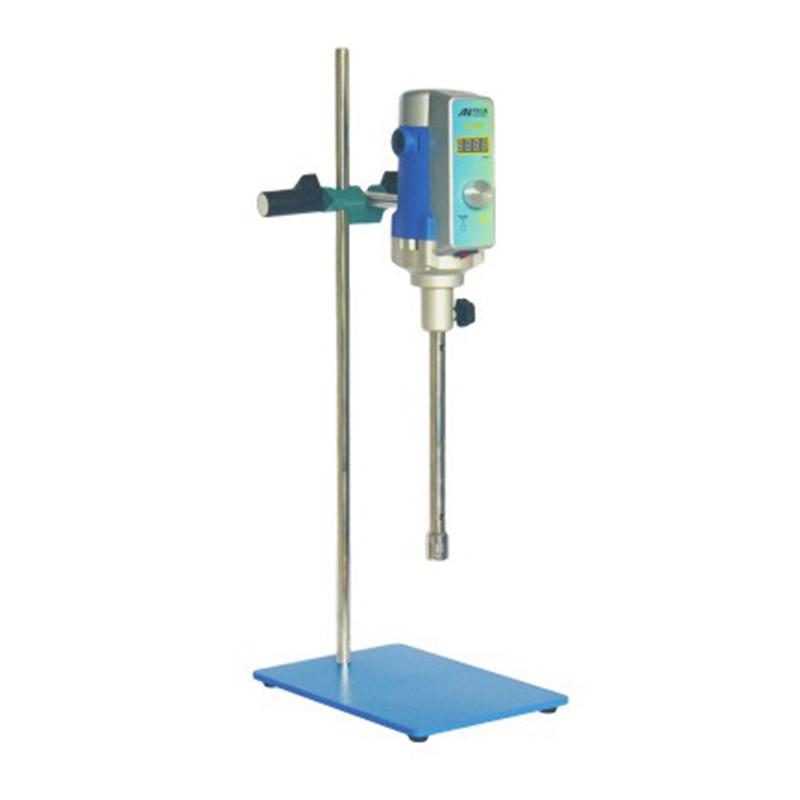

The AD25 Disperse Homogenizer is a high-shear disperse Mulser of the ANGNI brand. It is driven by a high-speed motor and is suitable for mixing, dosing and crushing of low to medium and high viscosity liquids. The device adopts an integrated structure of drive output and working head for stable operation. The working head is made of stainless steel and has a wide range of experimental applications. It has functions such as micro-processing control Rotation speed, constant speed operation, soft start, overload protection, etc. It supports stepless speed regulation and timing control, and digital display Rotation speed is convenient for data collection.
Features
1. High-speed motor drive, suitable for low to medium and high viscosity liquid mixing, dispensing and tissue cell crushing.
2. The drive output and working head are integrated, and the running state is stable.
3. The working head is made of stainless steel, providing a wide range of experimental applications.
4. Rotation speed controlled by microprocessor, instant compensation for load changes and power fluctuations, constant speed and reliability.
5. Built-in soft start and automatic overload protection to support safe continuous operation at full load.
6. Stepless speed regulation to meet the experimental correction of Rotation speed at any time.
7. Digital LED display Rotation speed, experimental data collection is convenient.
8. Run the timing control to ensure effective control of the experimental time.
Principle
The AD25 Disperse Homogenizer uses a high-speed motor to drive the working head swirl/spin, generating high shear force to achieve dispersion, homogenization and emulsification of the liquid medium. The Microprocessor Control system monitors and compensates for Rotation speed fluctuations caused by load changes or power supply fluctuations in real time, maintaining constant speed operation to ensure uniform mixing or crushing effect.
Applications
Liquid mixing, dispensing, tissue crushing
Steps
1. Connect the power supply, ensure that the Rated voltage AC220V and Frequency 50/60HZ match.
2. Immerse the working head in the liquid, ensuring that the immersion height is between 50mm and 225mm.
3. Use the combined control knob for stepless speed regulation, and set the required Rotation speed within the range of 1000~ 28000rpm.
4. Rotation speed is observed through the LED display and parameters are adjusted using the Rotation speed memory function.
5. Set up the running timing control and start the equipment for decentralized or homogeneous operation.
6. After the operation is completed, turn off the power supply and clean the working head.
Notice
• Ensure that the Ambient Temperature does not exceed 40 ° C and the relative humidity does not exceed 80%.
• The height of the working head immersed in the liquid shall not be less than 50mm or more than 225mm.
The maximum viscosity of the processing liquid does not exceed 5000cp, and the standard Processing capacity is 80~ 5000mL.
The maximum operating temperature is 120 ° C to avoid overheating.
• Regularly check the bearing and working head materials to ensure no damage.
• Pay attention to safety during operation to avoid overload. The equipment has built-in protection functions but needs to be used reasonably.
