Overview

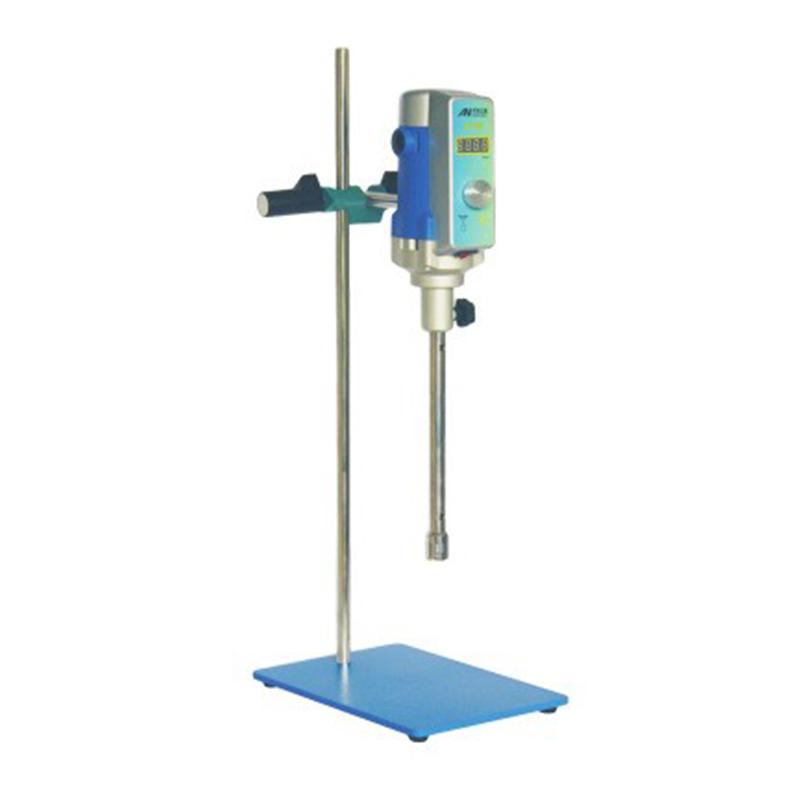

AD25 Disperse Homogenizer is a high shear dispersion Mulser, driven by a high-speed motor, suitable for low to medium and high viscosity liquid mixing or liquid medium separation, tissue cell crushing, etc. The drive output and the working head are positioned in an integrated structure, and the running state is more stable. The working head is made of good stainless steel, which has a wide range of experimental applications. Running Rotation speed microprocessing control, with instant compensation for Rotation speed changes caused by load changes and power fluctuations, constant speed and reliable. Built-in soft start and automatic overload protection ensure the safety of continuous operation of the experiment at full load for a certain period of time. Rotation speed stepless adjustment, to meet the experimental Rotation speed correction at any time. Rotation speed of digital display is intuitive, experimental data collection is convenient; running timing control ensures effective control of experimental time.
Features
1. Drive output and work head positioning integrated structure, more stable running state; 2. Work head with good stainless steel, wide range of experimental applications; 3. Running Rotation speed microprocessor control, with instant compensation due to load changes and power fluctuations caused by Rotation speed changes, constant speed reliable; 4. Built-in soft start, automatic overload protection, to ensure the safety of continuous operation at full load at a certain time; 5. Rotation speed stepless adjustment, to meet the experimental Rotation speed at any time correction; 6. Digital display Rotation speed intuitive, experimental data collection is convenient; 7. Running timing control to ensure effective control of experimental time; 8. Rotation speed memory function, easy to repeability experiment.
Principle
The AD25 Disperse Homogenizer uses a high-speed motor to drive the working head swirl/spin, generating high shear forces for liquid mixing, dispensing or tissue crushing. The Microprocessing Control system instantly compensates for load changes and power fluctuations to maintain a constant Rotation speed, ensuring uniform and reliable dispersion and emulsification.
Applications
Liquid mixing, dispensing, tissue crushing
Standards
S1 (continuous)
Steps
1. Connect the power supply to ensure that the Rated voltage is AC220V; 2. Immerse the working head in the liquid, the minimum immersion height is 60mm, and the maximum immersion height is 230mm; 3. Use the combined control knob for stepless speed regulation, and set the Rotation speed in the range of 1000~ 28000rpm; 4. Set the running timing as needed; 5. Start the device and observe the LED Rotation speed display to ensure stable operation; 6. After the experiment is completed, turn off the power and clean the working head.
Notice
• Permissible Ambient Temperature does not exceed 40 ° C; • Allowable relative humidity does not exceed 80%; • Minimum immersion liquid height is 60mm, maximum 230mm; • Maximum operating temperature is 120 ° C; • Standard Processing capacity is 100~ 8000mL, maximum processing viscosity is 5000cp; • Ensure that the input Power does not exceed 950W, output power does not exceed 570W; • Clean the working head in time after use to avoid corrosion; • Avoid overload operation, built-in automatic overload protection function.
