Overview

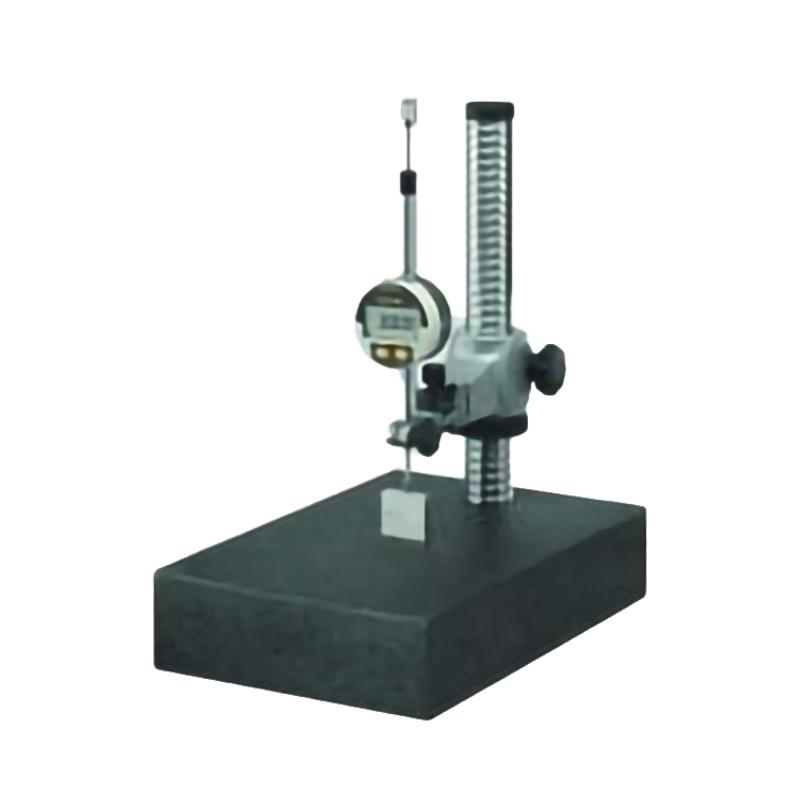

HORIZON CHY-T Benchtop thickness gauge meets the standards GB/T451.3, GB/T6547, mainly suitable for measurement of the thickness of various types of Plastic film, foil, paper, Cardboard, corrugated paper and other thin sheets. Measurement range 0~ 12.7mm, resolution 0.001mm, Measurement accuracy < 0.005mm, contact pressure 20 +/- 0.5Kpa, contact area 10 +/- 0.2cm ², measurement surface parallelism ≤ 0.035mm.
Features
1. Measurement range: 0~ 12.7mm
2. High resolution: 0.001mm
3. Measurement accuracy: < 0.005mm
4. Stable contact pressure: 20 +/- 0.5Kpa
5. Standard contact area: 10 +/- 0.2cm ²
6. Excellent parallelism: measurement plane parallelism ≤ 0.035mm
Principle
By applying a standard contact pressure of 20 +/- 0.5Kpa and a contact area of 10 +/- 0.2cm ², the measurement surface is in full contact with the measured material, and the thickness of the material is measured by High Accuracy Sensor, and the parallelism of the measurement surface is less than or equal to 0.035mm to improve the measurement accuracy.
Applications
Plastic film, foil, paper, Cardboard, corrugated paper
Standards
GB/T451.3、GB/T6547
