PUYUN PY-H603C Base Paper Test Center Disc Ring Crushing Test Auxiliary Equipment

Name: PUYUN PY-H603C Base Paper Test Center Disc Ring Crushing Test Auxiliary Equipment
Brand: PuYun
SKU: NB033862
Price: 229.0 USD
Availability: InStock

$ 229.00Ex works

Equipped with thirteen kinds of specifications center plate to adapt to 0.1~ 1.0mm thickness samples, using special alloy material anode platings, CNC numerical control fine grinding chamfering treatment to ensure leveling accuracy, clamping thickness deviation ≤ 0.01mm.

Model

PY-H603C

Get Quote

Category : Sample Cutter

Brand : PuYun

SKU : NB033862

Service :The delivery and service By NBCLab.Com

Overview

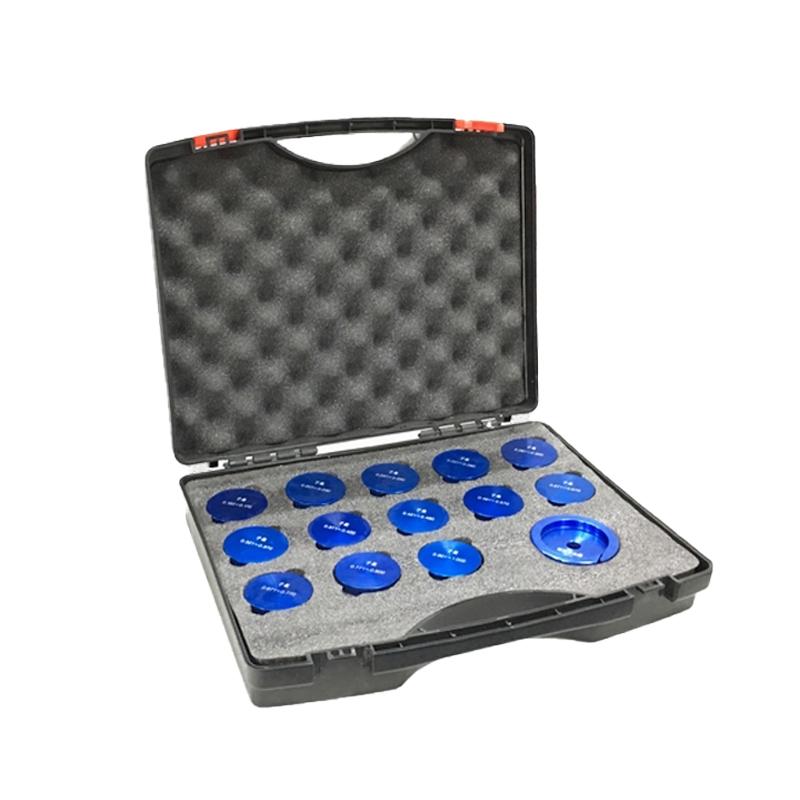

PY-H603C base paper test center plate is an auxiliary device required for the determination of paper and Cardboard Ring Crush Test on the Compressive Strength Tester. It is designed according to the provisions of the national standard GB/T 2679.8 "Determination of Paper and Cardboard Ring Crush Test" about the sample holder. This Accessories consists of a sample holder and thirteen different sizes of center plates, which can adapt to different thicknesses of samples and are widely used in industries and departments such as papermaking, Encasement and product mass supervision and inspection.

Features

1. Clamping length 152 * 127mm, clamping thickness range 0.1~ 1.0mm, clamping thickness deviation ≤ 0.01mm 2. The specifications of the ruler plate include one master plate and thirteen sub plates. 3. The ruler plate is treated with special alloy material anode platings 4. The thickness range of the ruler disc is based on the thickness range of each sub-disc laser printing according to the national standard 5. The center plate box is lined with soft cotton cushioning foam to prevent scratches on the ruler plate, and the external plastic hard box is stuck. Encasement 6. Each sub-plate and master plate lining are processed by CNC numerical control grinding chamfering to ensure leveling accuracy

clamping length
152*127mm
Clamping thickness Range
0.1~1.0mm
Clamping thickness deviation
≤0.01mm
Ruler specification
One master plate and thirteen sub plates.
Ruler plate material
Special alloy material anode platings treatment
Ruler plate thickness Range
According to the national standard, the thickness Range of each sub-disc laser printing
Center tray
Lined with soft cotton cushioning foam to prevent scratches on the ruler plate, external plastic hard box card position Encasement
chamfering
Each sub-plate and master plate lining are CNC numerical control fine grinding chamfer treatment to ensure leveling accuracy

[Q] Is the price listed on the website the final cost for overseas purchases?

[A] No, it isn't. This is the ex-factory price of the product in the Chinese Mainland. In addition to this price, buyers from different countries need to account for additional costs such as shipping fees, tariffs, and others. For specific regional quotes, please consult our customer service or fill out a quotation form.

[Q] What is the specific process for purchasing the product?

[A] First, please click on the quotation form on the website and fill in detailed information. Our customer service personnel will then send you a quotation based on your specific country and region, confirming payment and delivery methods. Following this, we proceed with contract signing, payment, and shipment. You can then await delivery.

[Q] What should I do if the instrument I purchase needs repair?

[A] After-sales repair for overseas instruments is an unavoidable issue. Our repair terms stipulate that the sender is responsible for the shipping and insurance costs incurred for the repair. Repairs within the warranty period are free, while repair costs beyond the warranty period are determined based on the actual situation.
