PUYUN PY-H603D gluing fixture Corrugated Board adhesive strength test fixture

Name: PUYUN PY-H603D gluing fixture Corrugated Board adhesive strength test fixture
Brand: PuYun
SKU: NB033863
Price: 229.0 USD
Availability: InStock

$ 229.00Ex works

Equipped with A/B/C/E four kinds of corrugated pins, the diaMeter of the pins is Φ 2-3mm, the straight line is arranged without bending, and the unit length Corrugated Board gluing line can be separated to meet the testing needs of different sizes of paper pRoducts.

Model

PY-H603D

Get Quote

Category : Sample Cutter

Brand : PuYun

SKU : NB033863

Service :The delivery and service By NBCLab.Com

Overview

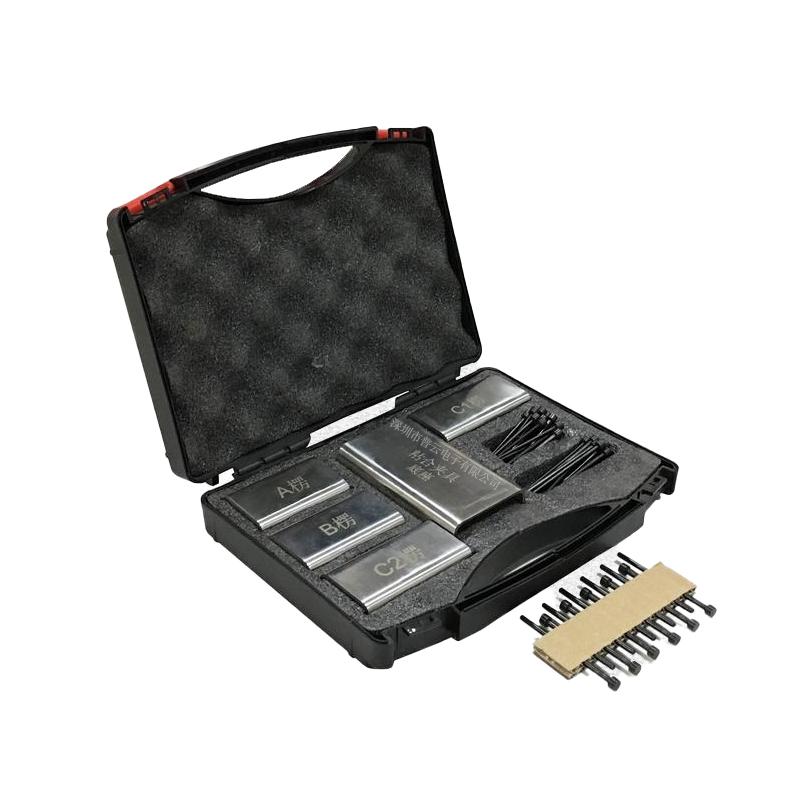

The PY-H603D gluing fixture is a PUYUN brand product used to separate the fixture required for a unit length Corrugated Board gluing line under specified test conditions. The product is used to determine the adhesive strength after pasting on two-sided Corrugated Boards. It meets the GB6548-2011 standard and is divided into two sets: E corrugated for micro-cartons and A/B/C corrugated for small and medium-sized cartons. All pins are straight without bending.

Features

1. Suitable for different corrugated types: E corrugated for micro-small cartons, A/B/C corrugated for small and medium-sized cartons 2. Pin design: All pins are in a straight line without bending 3. Complete specifications: including a master disk and four sub-disks (A/B/C1/C2) 4. Meet the standard: meet the requirements of GB6548-2011 standard

Principle

The gluing fixture is used to separate the gluing line of a unit length Corrugated Board under the specified test conditions by a pin to determine the adhesive strength after pasting on both sides of the Corrugated Board. The pin diameter is designed according to the different corrugated shapes to ensure accurate measurement.

Applications

Corrugated Board adhesive strength test, carton and carton manufacturing quality control

Standards

GB6548-2011

Steps

1. Select the corresponding sub-disc according to the Cardboard corrugated type (A/B/C1/C2) 2. Install the fixture on the test equipment 3. Place the Corrugated Board Sample in the Clamp 4. Start the test equipment for gluing line separation 5. Record the force data required for separation

Notice

• Check whether the pin is straight and not bent before use • Correctly select the sub-plate according to the Cardboard shape • Make sure the fixture is clean to avoid affecting the test results • Follow equipment safety regulations when operating

Suitable for corrugated Type
A/B/C corrugated
Pin diameter
Φ 3mm (A/C corrugated), Φ 2mm (B corrugated)
Dimension
(100*50*45)mm
Number of fixtures
One master disk, four child disks (A/B/C1/C2)
weight
2kg
