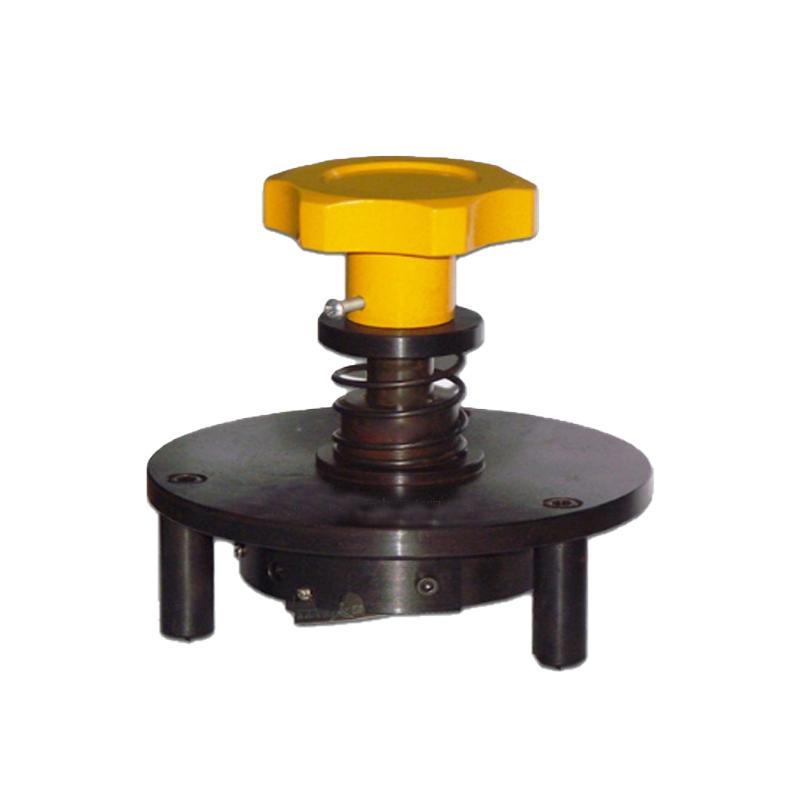

PUYUN PY-H603F Sampler Corrugated Board FCT Flat Crush Test

Name: PUYUN PY-H603F Sampler Corrugated Board FCT Flat Crush Test
Brand: PuYun
SKU: NB033864
Price: 519.0 USD
Availability: InStock

$ 519.00Ex works

It can cut 32.2cm ² and 64.5cm ² samples, the sampling error is less than 0.5cm ², and the maximum sampling thickness is 15mm, which meets the accurate sampling requirements of Corrugated Board Flat Crush Test.

Model

PY-H603F

Get Quote

Category : Sample Cutter

Brand : PuYun

SKU : NB033864

Service :The delivery and service By NBCLab.Com

Overview

Corrugated Board FCT Flat Crush Test Sampler is a special sampling device required for corrugated Flat Crush Test (FCT), which can quickly and accurately cut the specified area of the sample. It is a satisfactory auxiliary test device for Corrugated Board and carton production, scientific research and mass supervision and inspection departments.

Features

1. Optional sampling size: 32.2cm ² (φ 64mm) or 64.5cm ² (φ 90.6mm) 2. Small sampling error: < 0.5cm ² 3. Wide sampling thickness range: maximum thickness < 15mm 4. Lightweight: 5kg

Principle

The Sampler can quickly and accurately cut the Corrugated Board specimen of the specified area by mechanical cutting to ensure that the specimen size meets the requirements of the FCT Flat Crush Test.

Applications

Corrugated Board production, carton production, scientific research department, mass supervision and inspection department

Steps

1. Corrugated Board prepared for sampling Select the desired sampling size (32.2cm ² or 64.5cm ²) 3. Align Sampler to sampling position 4. Apply pressure for cutting sampling 5. Remove the sample for inspection

Notice

• Check whether the Sampler knife edge is sharp before use • Ensure sampling thickness does not exceed 15mm • Keep sample edges intact during sampling • Regular cleaning and maintenance of Sampler • Pay attention to safety during operation and avoid scratches

Sampling area
32.2Cm ² (Φ 64mm) or 64.5cm ² (Φ 90.6mm)
Specimen area error
<0.5cm²
Maximum thickness of sampling
<15mm
weight
5kg
