Overview

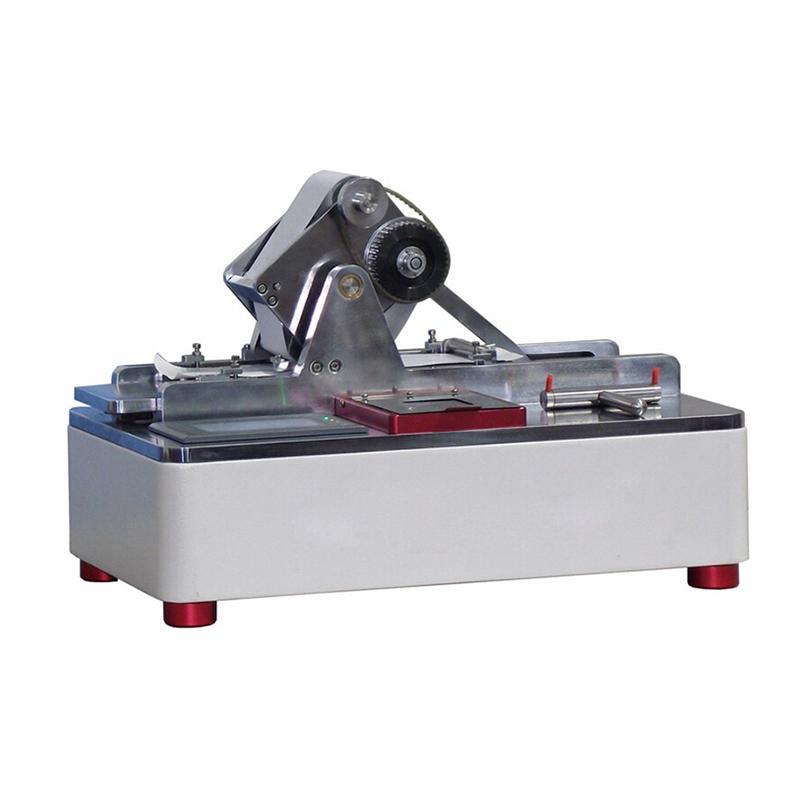

The PY-H619 Ink Absorption Tester is a professional instrument of the PUYUN brand. It is used to determine the performance of paper or Cardboard in absorbing standard inks over a specified time and area. The instrument evaluates ink penetration and conjunctiva by simulating the acceptance and absorption capacity of inks by paper, which affects ink film drying and surface performance.
Features
1. Adopt 4.3-inch color Touchscreen control, intuitive and convenient operation
2. The ink wiping speed is precisely controlled at 15.5 +/- 1.0cm/min
3. The opening area of the ink-coated platen is 20 +/- 0.4cm ², and the thickness is 0.1 +/- 0.02mm.
4. The ink absorption time is set to 120 +/- 5s to ensure test accuracy
5. Strong environmental adaptability, Temperature range 20 +/- 10 ℃, Humidity < 85%
Principle
The instrument applies standard inks to the surface of paper or Cardboard by inking platen to measure the absorption performance of inks within a specified time. The process simulates the penetration and curing behavior of inks after contact with paper, and evaluates the acceptance of inks by paper and the absorption capacity of vehicles.
Applications
Paper testing, Cardboard testing, Printing material evaluation
Standards
GB/T456、GB/T10379
Steps
1. Prepare Sample Paper or Cardboard
2. Set the instrument parameters, including ink wiping speed and ink absorption time
3. Launch the test via Touchscreen
4. Ink platen Apply inks and start timing
5. Read the absorption performance data after waiting for the specified time
Notice
• Ensure Ambient Temperature Range of 20 +/- 10 ℃
• Environmental humidity should be less than 85%
• Check whether the Power supply voltage meets the 220V/50Hz requirements before use
• Regularly calibrate instruments to ensure Test accuracy
• Avoid damage to the ink platen during operation
