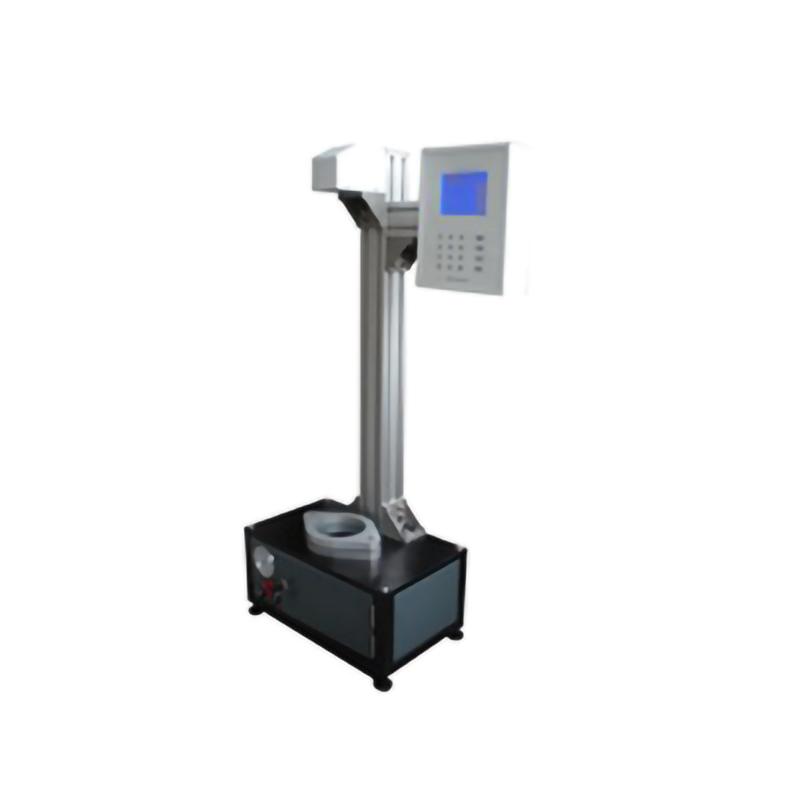

HORIZON XLB-30 Impact Tester Plastic film Impact performance test

Name: HORIZON XLB-30 Impact Tester Plastic film Impact performance test
Brand: Horizon
SKU: NB033902
Price: 3376.0 USD
Availability: InStock

$ 3376.00Ex works

With A/B dual test mode, Measurement accuracy of 0.1g, sample pneumatic clamping to reduce errors, intelligent automatic data processing during the test process, no manual intervention.

Model

XLB-30

Get Quote

Category : Other Instruments

Brand : Horizon

SKU : NB033902

Service :The delivery and service By NBCLab.Com

Overview

HORIZON XLB-30 Impact Tester is suitable for impact testing of various Plastic films and sheets. This product meets the requirements of GB/T9639, ISO7765 and ASTMD1709 standards for test equipment.

Features

1. The mechanical shape is novel and easy to operate 2. Test Methods A and B Dual Mode Design 3. Unique lighting observation lamp, convenient and fast test 4. Microcomputer processing of test data 5. The test process is intelligent and efficient 6. The specimen is pneumatically clamped and released, reducing the test error and test time 7. The test process does not require manual drawing and marking, and the data parameter system LCD display 8. The test data system automatically recognizes and calculates without manual intervention 9. The test ends automatically, and the results are displayed in various units. Micro-print output

Principle

Impact performance test of Plastic film and sheet was carried out by free falling dart method. Pneumatic clamping samples and free falling dart impact samples were used. The system automatically processed the test data and output the results.

Applications

Plastic film, sheet

Standards

GB/T9639、ISO7765、ASTMD1709

Steps

1. Prepare sample size > 150mm × 150mm 2. Select method A or method B test mode 3. Install the corresponding weight configuration 4. Pneumatic clamping of specimens 5. Start test, drop dart free fall Impact 6. The system automatically processes the data and displays the results 7. Microprinter output test results

Notice

• Specimen size must be greater than 150mm × 150mm • Power supply voltage AC220V +/- 10% 50Hz before test • Choose method A or method B to configure the weight according to the test requirements • Ensure that the test environmental conditions are 23 ° C 50% RH (standard) • Regularly check that the pneumatic clamping device is functioning normally

Measurement Range
300~ 2000G B method
Measurement accuracy
0.1g(0.1J)
Measuring method
Method A, Method B (optional)
test conditions
23 ℃ 50% RH (standard)
Specimen Size
＞150*150mm
power supply
AC 220V±10％ 50Hz
Host Size
A method 500L * 450 (B) * 1320 (H) mm; B method 500L * 450 (B) * 2160 (H) mm
Net weight
70kg
specimen clamping
Pneumatic

[Q] Is the price listed on the website the final cost for overseas purchases?

[A] No, it isn't. This is the ex-factory price of the product in the Chinese Mainland. In addition to this price, buyers from different countries need to account for additional costs such as shipping fees, tariffs, and others. For specific regional quotes, please consult our customer service or fill out a quotation form.

[Q] What is the specific process for purchasing the product?

[A] First, please click on the quotation form on the website and fill in detailed information. Our customer service personnel will then send you a quotation based on your specific country and region, confirming payment and delivery methods. Following this, we proceed with contract signing, payment, and shipment. You can then await delivery.

[Q] What should I do if the instrument I purchase needs repair?

[A] After-sales repair for overseas instruments is an unavoidable issue. Our repair terms stipulate that the sender is responsible for the shipping and insurance costs incurred for the repair. Repairs within the warranty period are free, while repair costs beyond the warranty period are determined based on the actual situation.
