Overview

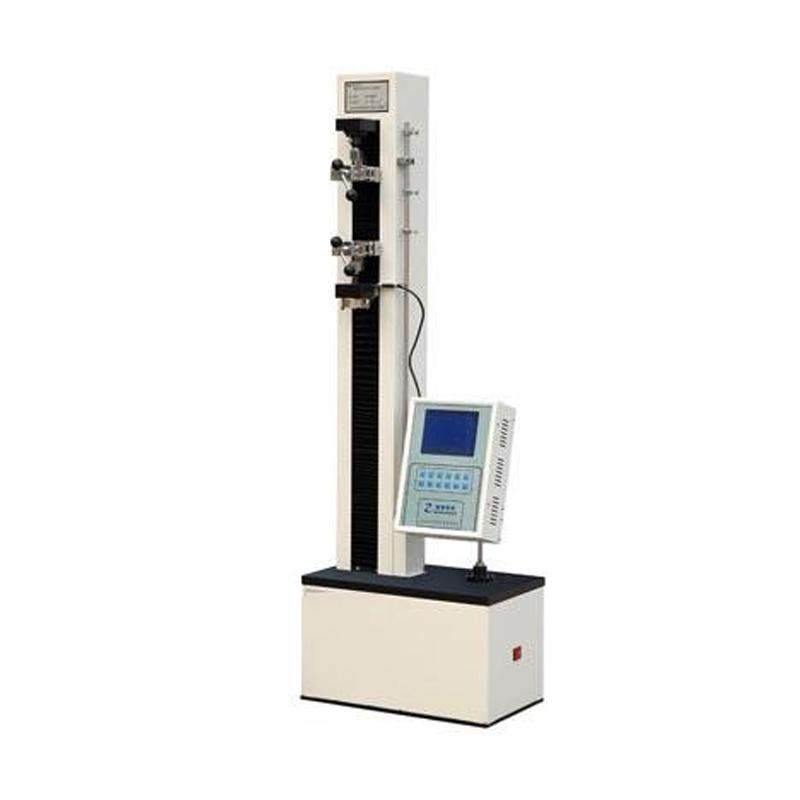

HORIZON DLS-05 Electronic Tensile Tester is suitable for Plastic film, composite film tensile strength, fracture elongation, Modulus of Elasticity measurement, as well as disbonding, tearing, heat sealing strength and other performance tests.
Features
1. Operation mode of touch keys, LCD display multiple interfaces in real time
2. It can be broken off and maintained at peak value, with over-current, over-voltage and overload protection devices
3. Measurable stretching, heat sealing, disbonding, tearing and other items
4. Can be determined elongation force value, fixed force value to measure elongation, display force value and displacement Linear dispersion
5. Single point speed regulation or stepless speed regulation (1-500mm/min)
The 60,000 joint adopts the structure of cross latch and has the function of swing angle limit to ensure concentricity and eliminate the influence of irregular samples
7. Control mode closed loop, high control accuracy
Principle
The Electronic Tensile Tester precisely applies tensile force through closed-loop Control mode, uses Sensor measurement of force value and displacement, and displays the test Linear dispersion in real time, which can perform a variety of performance tests.
Applications
Plastic film, composite film
Standards
GB/T13022、GB/T8808、GB 1040、GB/T4850、GB/T 16578、QB/T 2358、QB/T 1130
Steps
1. Connect the power supply and turn it on.
2. Select test methods and parameters
3. Install the specimen and hold it
4. Test speed
5. Start testing and observe real-time data
6. View results and Linear dispersion after the test is complete
7. Use the micro printer to output the report
Notice
• Power supply voltage 220V +/- 10% V
• Check whether the fixture is firmly installed before the test
• Avoid overloading equipment
• Regularly calibrate Sensors for Measurement accuracy
• Clean the equipment promptly after use
