Overview

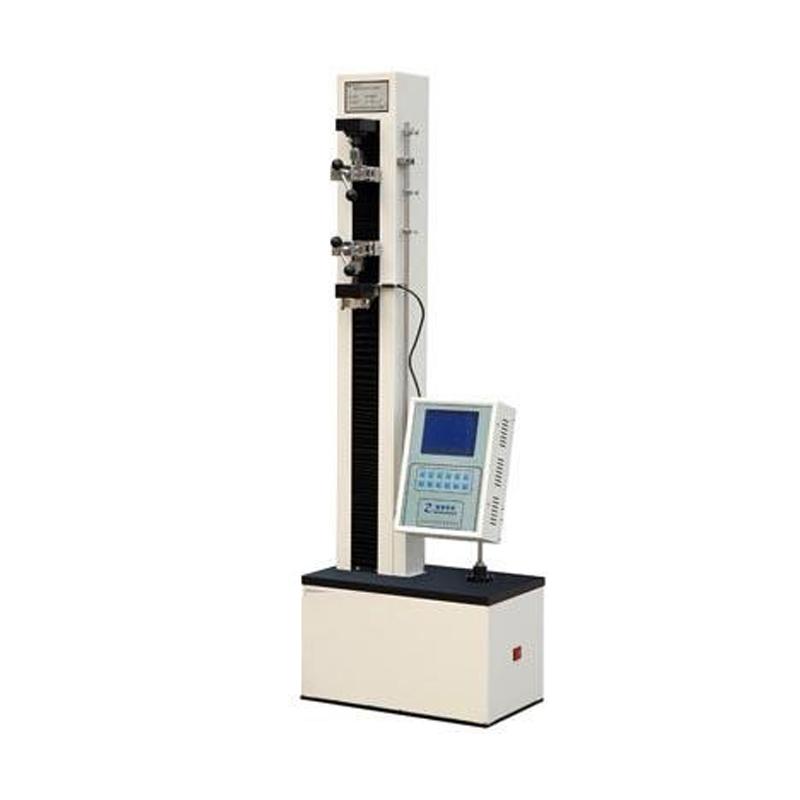

HORIZON DLS-05 Electronic Tensile Tester is a professional testing equipment for Plastic film, composite film tensile strength, fracture elongation, Modulus of Elasticity measurement, as well as disbonding, tearing, heat sealing strength and other performance tests.
Features
1. Operation mode of touch keys, LCD display multiple interfaces in real time
2. Can be pulled off and stopped and peak maintained, with overcurrent, overvoltage and overload protection
3. Can test tensile, heat sealing, disbonding, tearing and other items
4. Support constant elongation force value, constant force value to measure elongation, can display force value and displacement Linear dispersion
5. Single point speed regulation or stepless speed regulation, speed range 1-500mm/min
The 60,000 joint adopts the structure of cross latch and has the function of swing angle limit to ensure concentricity and eliminate the influence of irregular samples
7. Control mode closed loop, high control accuracy
Principle
The device applies tension accurately through closed-loop Control mode, real-time measurement of force and displacement, tensile, disbonding, tearing and other tests, and displays relevant Linear dispersion and data.
Applications
Plastic film, composite film
Standards
GB/T13022、GB/T8808、GB 1040、GB/T4850、GB/T 16578、QB/T 2358、QB/T 1130
Steps
1. Connect the power supply and turn it on.
2. Select test methods and parameters
3. Install the specimen and fix it with a fixture
4. Start the test, the equipment runs automatically and displays the results
5. Use the micro printer to output data
Notice
• Power supply voltage 220V +/- 10%
• Check whether the protective device is normal before use
• Install the specimen correctly to ensure concentricity
• Avoid overloading equipment
• Regularly calibrate force values and displacement accuracy
