Overview

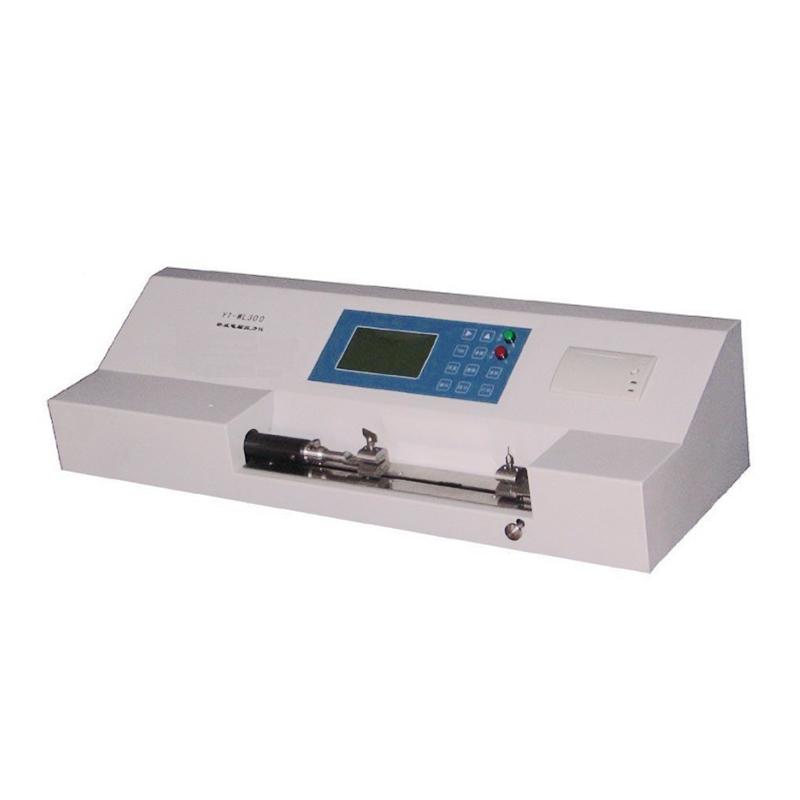

The HORIZON DLS-Z paper tensile testing machine (horizontal) adopts a unique horizontal design, which has the characteristics of compact structure, complete function and convenient operation. The instrument is designed according to the requirements of the new national standard GB/T 1 2914-91 (constant speed stretching method), and can measure paper tension, Tensile Strength, elongation, fracture length, Tensile Energy Absorption, tensile index, Tensile Energy Absorption index, especially can sense small quantities, and has the ability to measure the corresponding parameters of paper (including wet strength value).
Features
1. The transmission mechanism adopts ball bearings for smooth and accurate transmission
2. Adopt imported motors, with low noise and accurate control
3. On-screen LCD display, Chinese menu. During the test, the stretching time, load tension, etc. can be displayed in real time; and the tensile curve can be displayed and printed
4. Thermal printer, lower noise and clearer
5. Measurement range of 0~ 30N, accuracy up to 0.01N, resolution 0.01N, professional measurement of paper parameters
6. Direct measurement results: After completing a set of tests, it is convenient to directly display measurement results and print statistical reports, including average, Standard Deviation and Coefficient of Variation
7. Variable sample size and tensile speed: For commonly used standard size samples, tensile test can be carried out directly at the specified speed, and the appropriate tensile speed can be set as needed to change the test length and width of the sample
8. Degree of automation: Instrument design uses professional devices at home and abroad, single-chip microcomputer for information sensing, data processing and action control, with automatic reset, data memory, overload protection and fault self-diagnosis characteristics
9. Measurement range: Measurement range can be changed according to user needs to configure different dynamometers, which can be widely used in tensile testing of various papers and materials
10. Multifunctional, flexible configuration: the instrument is mainly used for paper measurement, changing the configuration of the instrument can be widely applied to the measurement of other materials
Principle
The instrument adopts horizontal design, and information sensing, data processing and action control are carried out by a single-chip microcomputer to realize automatic reset, data memory, overload protection and fault self-diagnosis. The transmission mechanism adopts ball bearings and imported motors to ensure smooth and accurate transmission and accurate control. During the test process, parameters such as stretching time and load tension are displayed in real time, and tensile curves can be displayed and printed.
Applications
Paper, Aluminum foil, Aluminum plastic tape, Plastic film, Food bag, Towel, Pressure sensitive adhesive tape, Synthetic fiber filament, Zipper
Standards
GB/T 12914-91、GB 13022-91、GB/T1040-92、GB2792-81、GB/T 14344-9、GB/T 2191-95、QB/T 2171-95
