Overview

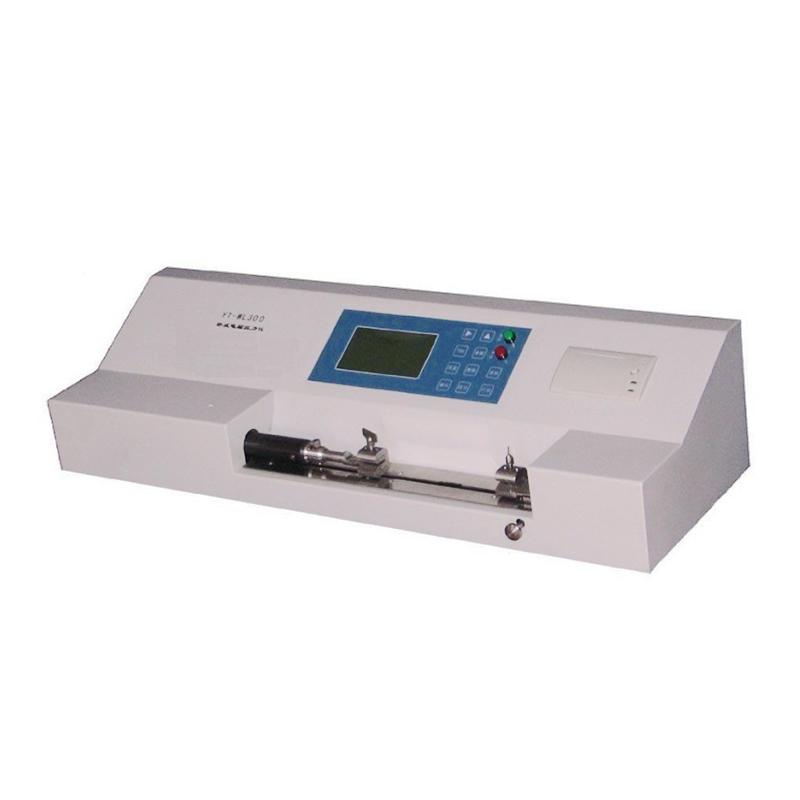

HORIZON DLS-Z paper tensile testing machine (horizontal) adopts a unique horizontal design, with compact structure, complete functions and convenient operation. The instrument is designed according to the national standard GB/T 1 2914-91 (constant speed stretching method), and is used for the measurement of paper, aluminum foil, Plastic film and other materials. Tension resistance, elongation and other parameters.
Features
1. The transmission mechanism adopts ball bearings for smooth and accurate transmission
2. Adopt imported motors, with low noise and accurate control
3. On-screen LCD display, Chinese menu, real-time display of stretching time, load tension, can display printing tensile curve
4. Thermal printer, lower noise and clearer
5. Measurement range of 0~ 30N, accuracy up to 0.01N, resolution 0.01N, professional for paper parameter measurement
6. Directly obtain measurement results, display and print statistical reports including Average, Standard Deviation and Coefficient of Variation
7. Variable sample size and stretching speed, support standard size and custom settings
8. Degree of automation, with automatic reset, data memory, overload protection and fault self-diagnosis
9. Measurement range, can be converted by configuring different dynamometers, suitable for various materials
10. Versatile, flexible configuration, mainly for paper measurement, but also for Miscellaneous materials
Principle
The instrument adopts horizontal design and is driven by ball bearings and imported motors to achieve smooth and accurate stretching motion. A single-chip microcomputer is used for information sensing, data processing and action control, real-time monitoring of load and displacement during stretching, calculation of anti-tension, elongation and other parameters.
Applications
Paper, Aluminum foil, Aluminum plastic tape, Plastic film, Food bag, Sanitary napkin, Pressure sensitive adhesive tape, Synthetic fiber filament, Zipper
Standards
GB/T 12914-91、GB 13022-91、GB/T1040-92、GB2792-81、GB/T 14344-9、GB/T 2191-95、QB/T 2171-95
Steps
1. Power supply AC220V +/- 10% 50HZ
2. Set the sample size, the length can be adjusted arbitrarily in 180mm, 200mm, 100mm, 90mm, 50mm, 0mm six-speed manual adjustment or computer control 0-200mm
3. Set the stretching speed 1~ 399mm/min and the return speed 1~ 399mm/min
4. Place the sample and start the test
5. Real-time observation of liquid crystal display stretching time, load tension and other data
6. After the test is completed, the measurement results are displayed directly
7. Use a thermal printer to print statistical reports, including Average, Standard Deviation, and Coefficient of Variation
Notice
• Power supply must meet AC220V +/- 10% 50HZ requirements
• Precision of force value is +/- 1% to ensure use in the range of 0~ 500N
• Stretching and return speed can be adjusted digitally to avoid exceeding the range of 1~ 399mm/min
• When adjusting the size of the sample, pay attention to the six-speed hand adjustment or computer control options
• The instrument has an overload protection function, but it is still necessary to avoid overload use
• Regularly check the transmission mechanism and motor to ensure smooth operation
• When using a thermal printer, pay attention to maintenance to maintain a clear print effect
