Overview

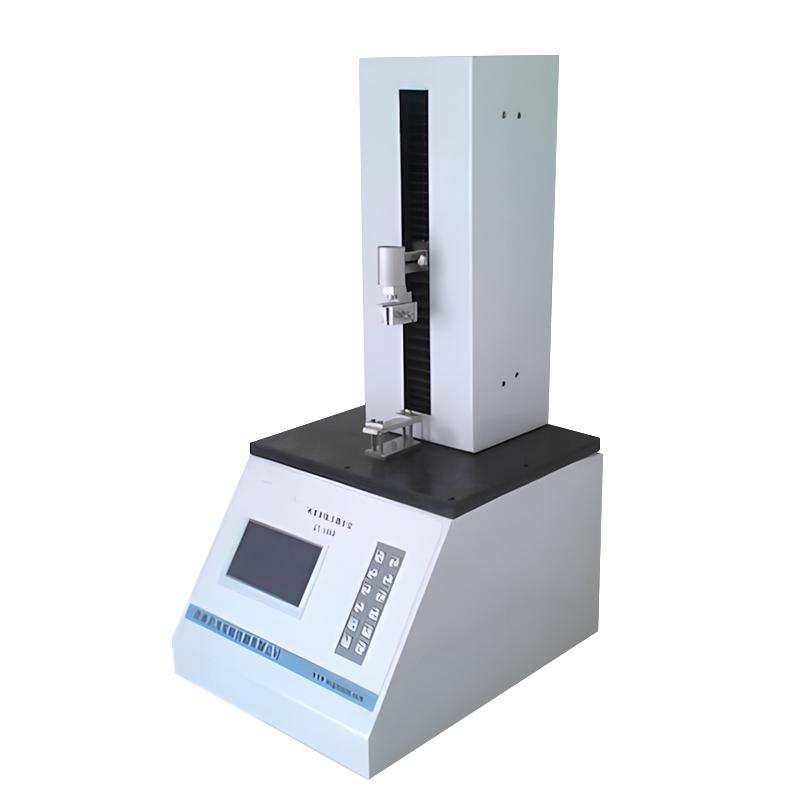

LT-1000 Ring Initial Adhesion Tester is a professional test instrument of HORIZON brand. It has a compact and exquisite structure and adopts imported Sensors and motors. It is mainly used for the initial adhesion test of various tapes, gluing agents and other products. The product meets FINAT, ASTM and other international standards and is suitable for research institutions, Adhesive import and export enterprises, Inspection & Quarantine institutions, etc.
Features
1. Compact, lightweight, and user-friendly structural design
2. Display MAX Maximum, MIN Minimum, Average
3. Large LCD display (now upgraded to Touchscreen display)
4. Equipped with a micro printer
5. Humanized fixture, can arbitrarily change the adhesive substrate
Principle
After the LT-1000 annular Initial viscosity tester completely contacts the annular sample with the standard float Glass test plate at a constant speed of 300mm/min, the instrument automatically reverses to completely separate the annular sample and the test plate at a constant speed of 300mm/min, and the maximum force generated is the annular initial adhesion of the tested sample.
Applications
Research Institutions, Adhesive Import and Export Enterprises, Inspection & Quarantine Institutions
Steps
1. The size of the prepared sample is 180 * 25mm
2. Fully contact the annular specimen with the standard float Glass test plate at a constant speed of 300mm/min
3. The instrument automatically reverses to completely separate the sample and test plate at a constant speed of 300mm/min
4. Read the maximum force value displayed on the LCD screen as the annular initial adhesion force
5. Can store 20 sets of test results and print experimental reports
Notice
• Ensure that the sample size meets the 180 * 25mm requirements
• The size of the test board should be 30 * 25 * 3mm
• Power Supply 220V, 50HZ
Measurement range 0~ 200N, accuracy less than +/- 1%
• Measurement speed adjustable range 0~ 500mm/min, resolution 0.01N
