Overview

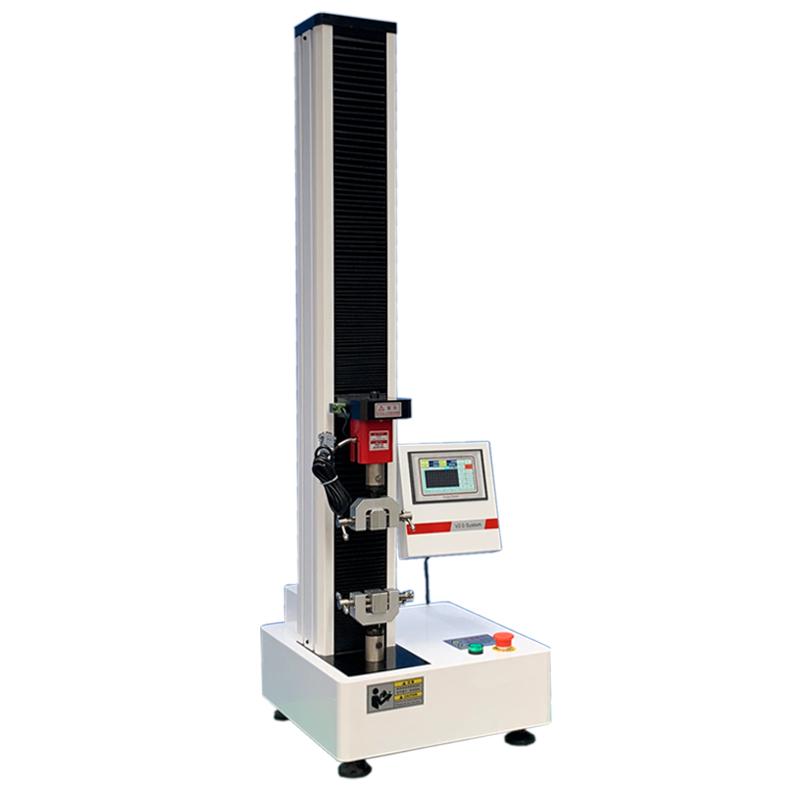

JINGWEN JW103C-01 paper Tensile Strength Tester is suitable for the testing of paper strength, Plastic film, Composite film, Adhesive, Adhesive tape, medical patch, protective film, release paper, rubber, artificial leather, paper fiber and other products. The instrument integrates professional and independent testing procedures such as tensile, disbonding, tearing, heat sealing, constant extension resistance, downward pressure, and annular primary adhesion, providing users with a variety of test items.
Features
1. Adopt ball screw transmission, which is more stable and accurate.
2. Adopt a well-advanced stepper motor with low noise and accurate control.
3. Large screen touch screen display, Chinese menu, real-time display of test force, speed, displacement and Linear dispersion: force-time, force-deformation, force-displacement, etc.
4. Built-in micro printer, print data and test results: tensile strength, elongation.
5. Visual display of test results: After a set of tests are completed, display measurement results and print statistical reports, average, MAX Maximum, MIN Minimum.
6. Microcomputer data processing and control, automatic reset, data memory, overload protection, etc.
7. AC speed regulation, sample damage automatic shutdown, photoelectric safety limit.
8. The test force is not divided into gears throughout the process, and it is automatically switched.
9. Adding attachments can complete compression, bending, shearing, Tear strength, etc.
Principle
The sample is clamped between the two chucks of the fixture, and the two chucks move relatively. Through the force value Sensor located on the moving chuck and the built-in displacement Sensor of the machine, the force value change and displacement change during the test are collected, so as to calculate the performance indicators such as tensile, tear and deformation rate of the sample.
Applications
Paper, Plastic film, Composite film, Adhesive tape, Medical patch, Protective film, Release paper, Rubber, Artificial leather, paper fiber
Standards
GB 8808、GB/T 1040.1-2006、GB/T 1040.2-2006、GB/T 1040.3-2006、GB/T 1040.4-2006、GB/T 1040.5-2008、GB/T 4850-2002、GB/T 12914-2008、GB/T 17200、GB/T 16578.1-2008、GB/T 7122、GB/T 2790、GB/T 2791、GB/T 2792、GB/T 17590、ISO 37、ASTM E4、ASTM D882、ASTM D1938、ASTM D3330、ASTM F88、ASTM F904、JIS P8113、QB/T 2358、QB/T 1130
Steps
1. Clamp the specimen between the two chucks of the fixture.
2. Start the test and move the two collets relative to each other.
3. Acquire force and displacement data through Sensor.
4. After the test is completed, the results are automatically displayed and printed.
Notice
• Ensure that the working environment is at room temperature -35 ° C, and the relative humidity does not exceed 80%.
• Use single-phase 220V +/- 10%, 50Hz power supply.
• Pay attention to the photoelectric safety limit function to avoid overload.
• Regularly check the equipment to ensure that the force value Precision is within +/- 1%.
