Overview

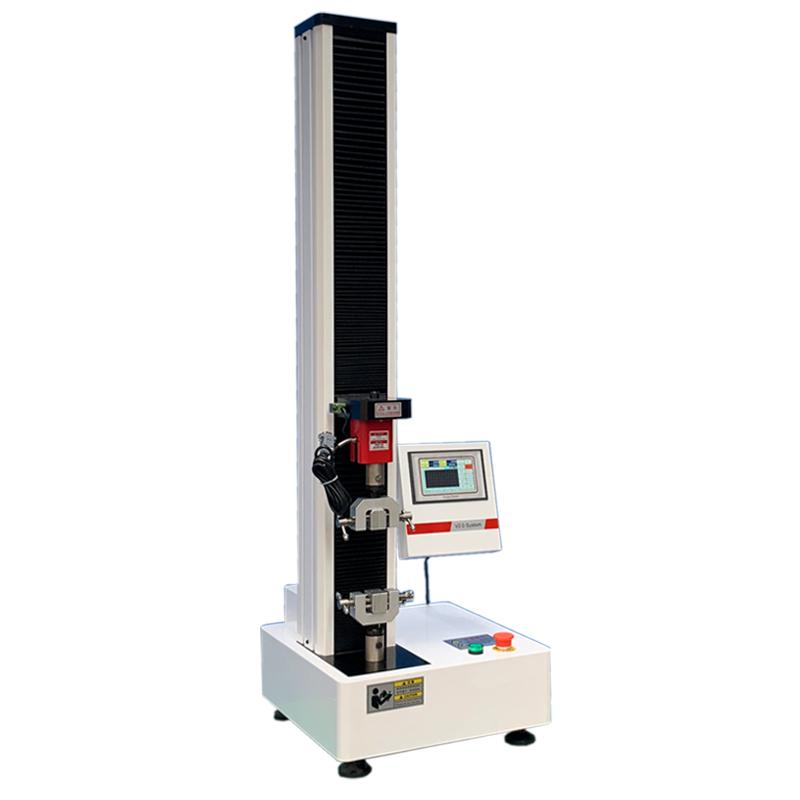

JINGWEN JW103C-05 paper Tensile Strength Tester is suitable for the testing of paper, Plastic film, Composite film, Adhesive, Adhesive tape, medical patch, protective film, release paper, rubber, artificial leather, paper fiber and other products. The instrument integrates professional and independent test procedures such as stretching, disbonding, tearing, heat sealing, extension resistance, downward pressure, and ring primary adhesion, providing users with a variety of test items.
Features
1. Adopt ball screw transmission, which is more stable and accurate.
2. Adopt a stepper motor for low noise and accurate control.
3. Large screen touch screen display, Chinese menu, real-time display of test force, speed, displacement and Linear dispersion (force-time, force-deformation, force-displacement, etc.).
4. Built-in micro printer, print data and test results (tensile strength, elongation).
5. Visual display of test results: After a set of tests are completed, the measurement results are displayed and the statistical report is printed, including the average, MAX Maximum, MIN Minimum.
6. Microcomputer data processing and control, automatic reset, data memory, overload protection, etc.
7. AC speed regulation, sample damage automatic shutdown, photoelectric safety limit.
8. The test force is not divided into gears throughout the process, and it is automatically switched.
9. Adding attachments can complete compression, bending, shear, Tear strength and other tests.
Principle
The sample is clamped between the two chucks of the fixture, and the two chucks move relatively. Through the force value Sensor located on the moving chuck and the built-in displacement Sensor of the machine, the force value change and displacement change during the test are collected, so as to calculate the performance indicators such as tensile, tear and deformation rate of the sample.
Applications
Paper, Plastic film, Composite film, Adhesive tape, Medical patch, Protective film, Release paper, Rubber, Artificial leather, paper fiber
Standards
GB 8808、GB/T 1040.1-2006、GB/T 1040.2-2006、GB/T 1040.3-2006、GB/T 1040.4-2006、GB/T 1040.5-2008、GB/T 4850-2002、GB/T 12914-2008、GB/T 17200、GB/T 16578.1-2008、GB/T 7122、GB/T 2790、GB/T 2791、GB/T 2792、GB/T 17590、ISO 37、ASTM E4、ASTM D882、ASTM D1938、ASTM D3330、ASTM F88、ASTM F904、JIS P8113、QB/T 2358、QB/T 1130
Steps
1. Clamp the specimen between the two chucks of the fixture.
2. Start the instrument and set the test parameters.
3. The two collets move relative to each other for testing.
4. Acquire force and displacement data through Sensor.
5. After the test is completed, the instrument automatically displays and prints the results.
Notice
• Ensure that the working environment is at room temperature -35 ° C, and the relative humidity does not exceed 80%.
• Use single-phase 220V +/- 10%, 50Hz power supply.
• Pay attention to the overload protection function to avoid overload use.
• During the test, the sample will automatically stop if it is damaged, and pay attention to the safety limit.
• Regularly check Sensors and transmission components to ensure accuracy.
