Overview

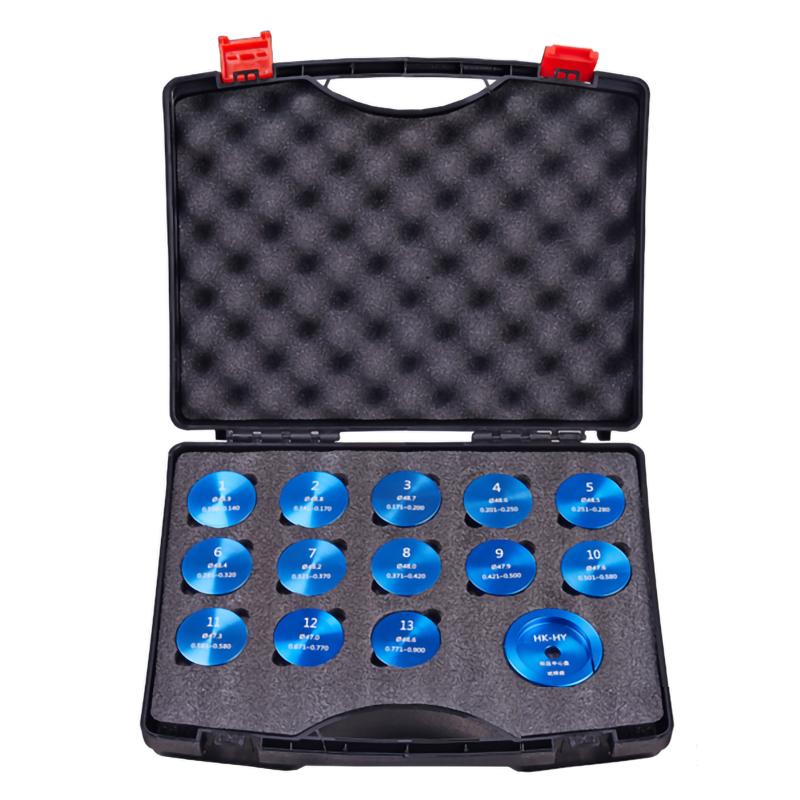

The YINUO YN-RCT02 base paper test center plate is a special center test plate of the paper Ring Crush Test instrument, which is used to load 152 * 12.7mm size ring pressure samples for testing. The product consists of 13 sub-discs and 1 master disk, covering the thickness range of 0.1~ 1mm. It is an essential accessory for paper making and scientific research institutions to conduct Ring Crush Testing.
Features
Equipped with 13 loading sizes, covering a thickness range of 0.1 to 1mm
2. It is composed of 13 sub-disks and 1 master disk, with a complete structure
3. Specially designed for 152 * 12.7mm annular pressure specimens
4. Clamping thickness deviation ≤ 0.01mm, high accuracy
5. Suitable for a variety of paper Ring Crushing Tests
Principle
The base paper test center plate precisely clamps 152 * 12.7mm ring pressure samples through the combination of sub-plates and mother plates of different sizes, and tests on the Ring Crush Test instrument. By controlling the clamping thickness in the range of 0.1~ 1.0mm, the sample remains stable during the test and accurate Ring Crush Test data is obtained.
Applications
Paper, bobbin paper ring pressure measurement
Standards
GB/T 2679.8、GB/T 6546、GB/T 6548、GB/T 2679.6
Steps
1. Select the appropriate sub-plate according to the thickness of the sample
2. Install the sub-disk into the mother disk
3. Place 152 * 12.7mm annular pressure sample
4. Put the loaded center plate into the Ring Crush Test
5. Test according to the instrument operating specifications
Notice
• Check whether the size of the center plate matches the thickness of the sample before use
• Make sure the sample size is 152 * 12.7mm
• Regularly check clamping accuracy to ensure deviation ≤ 0.01mm
• Keep the center plate clean to avoid affecting the test results
• Test according to standard operating procedures
