Overview

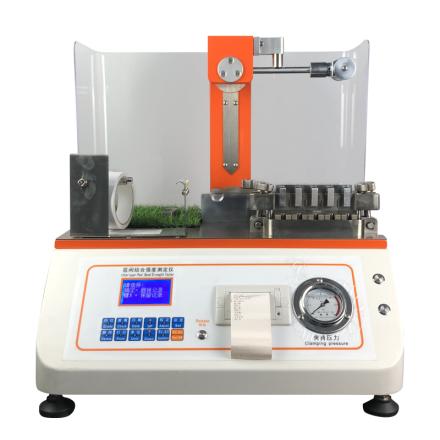

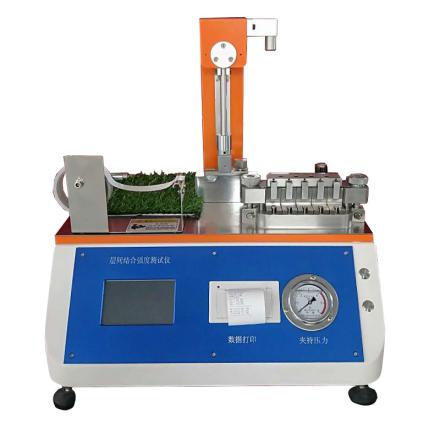

The YN-IBTF01 microcomputer Interlayer bond strength tester is a professional instrument designed based on TAPPI T569 and ISO 16260 methods for measuring the internal bond strength of various paper and Cardboard materials. It uses a falling pendulum to perform high-speed Impact on paper samples. By sandwiching the sample between the double-coated tape substrates, the total energy required for delamination of the fiber along the Z-shaped direction is measured. It is widely used in the interlayer Peel Strength test of industrial papers such as Electrical Insulating Paper Board, Bobbin Paper, Grey Cardboard, etc. It is suitable for paper mills, scientific research institutions and Quality control departments.
Features
1.7.0 inch touch screen Linear dispersion display, support Chinese and English bilingual language free switch
2. Hydraulic viscose pressure sample, the pressure can be automatically adjusted (patented technology)
3. With test data statistical processing function
4. Optional 5-level calibrated tool set
5. The whole machine has strong rigidity and stable structure, avoiding energy loss caused by vibration during testing
6. Reliable sample clamping and positioning to reduce sample errors due to sampling
7. Optional connection to computer to automatically draw real-time test data Linear dispersion diagram (optional)
Principle
The working principle of the interlayer bonding tester is based on a sandwich structure formed by double-sided tape-specimen-double-sided tape, which is pressed between a flat metal anvil and an aluminum block. The aluminum block is flipped and destroyed in the Z direction by striking the inner surface of the upper part of the aluminum block with a pendulum, and then the swing position is measured to calculate the energy absorbed during the failure of the sample. The result is expressed in J/m ².
Applications
Electrical Insulating Paper - Interlayer Strength Test of Electrical Cardboard, Bobbin Paper, Gray Cardboard, Cardboard, Encasement Box and Other Industrial Paper
Standards
GB/T 25203、ASTM T569 pm-00、DIN ISO 16260、TAPPI-UM403
Steps
1. Prepare the sample with a size of 25.4 * 25.4mm or 25.4 * 128mm
2. The sample is sandwiched between double-sided tape to form a sandwich structure
3. Press the interlayer between the metal anvil and the aluminum block
4. Set test parameters, such as pressure adjustable range 0~ 400N
5. Start the instrument, the pendulum is automatically released for Impact test
6. The instrument automatically calculates and displays the absorbed energy results
7. Optional print output or connect computer to draw data Linear dispersion
Notice
• Ensure that the sample size meets the standard requirements to avoid sampling errors
• Check the double-sided adhesive force before use to ensure that it is greater than 486N/m
• Keep the instrument stable during the test to prevent vibration from affecting the accuracy
• Regularly calibrate instruments, optional special calibrating tools
• Note that the sample thickness range is between 0.1 and 5mm
• Follow safety regulations when operating to avoid pendulum Impact injuries
