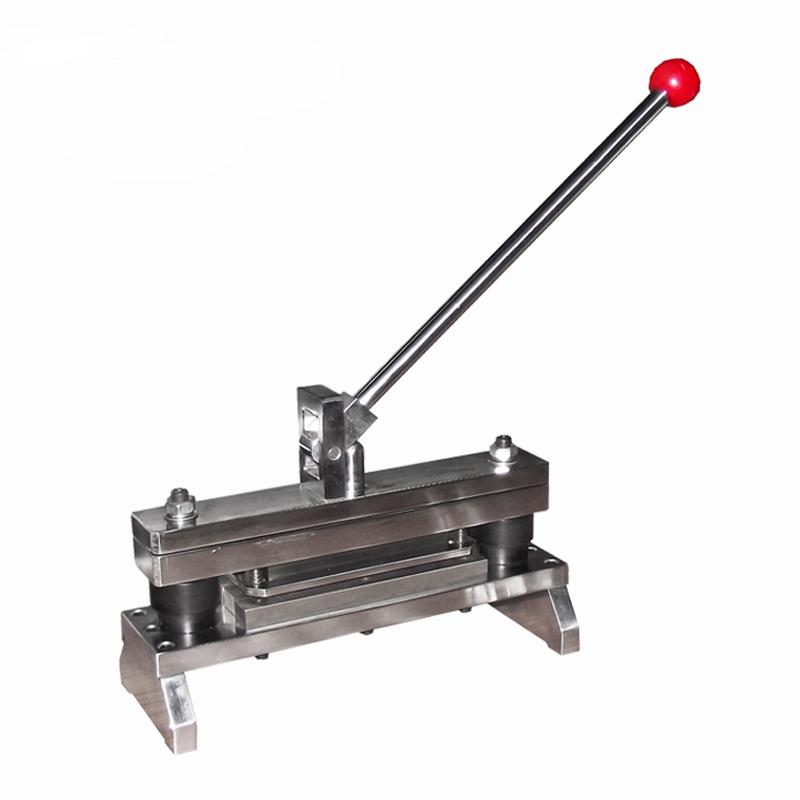

YINUO YN-IBTD01 Sampler for interlayer bonding 25.4mm * 140mm sampling size

Name: YINUO YN-IBTD01 Sampler for interlayer bonding 25.4mm * 140mm sampling size
Brand: YiNuo
SKU: NB033997
Price: 656.0 USD
Availability: InStock

$ 656.00Ex works

Sampling size 25.4mm * 140mm, thickness range 0.05~ 1.2mm, parallelism of two long sides ≤ 0.015mm, to ensure High Accuracy sampling, Improve Test Reliability.

Model

YN-IBTD01

Get Quote

Category : Sample Cutter

Brand : YiNuo

SKU : NB033997

Service :The delivery and service By NBCLab.Com

Overview

The YINUO YN-IBTD01 Interlayer Bonding Sampler is a companion sampling tool designed for the Internal Bond Strength Tester for accurate sample acquisition.

Features

1. Special Sampler for use with Internal Bond Strength Tester 2.Accurate sampling size is 25.4mm * 140mm 3. Two long sides parallelism ≤ 0.015mm, high accuracy 4. The sampling thickness range is 0.05~ 1.2mm, with a wide range of applications 5. Dimension 580 * 150 * 620mm, compact structure 6.Weight 18kg, easy to handle and operate

Principle

The Sampler uses a precision mechanical structure to cut samples from the material that meet the requirements of the Internal Bond Strength test according to the set size of 25.4mm * 140mm and the parallelism requirement of ≤ 0.015mm.

Applications

Internal Bond Strength Testing, Material performance Testing

Steps

1. Place the Sampler on the material to be sampled 2. Adjust the Sampler position to ensure that the sampling area meets the requirements 3. Operation Sampler for cutting sampling 4. Take out the cut 25.4mm * 140mm sample 5. Check whether Sample size and parallelism meet the requirements

Notice

• Check that all Sampler components are in good condition before use • Ensure smooth material placement during sampling • Regularly check the sampling accuracy • Pay attention to safety protection during operation • Clean and maintain equipment in time after sampling

Specimen Size
25.4*140mm
Parallelism of two long sides
≤0.015mm
Sampling thickness
0.05~1.2mm
Dimension
About 580 * 150 * 620mm
weight
18kg
