Overview

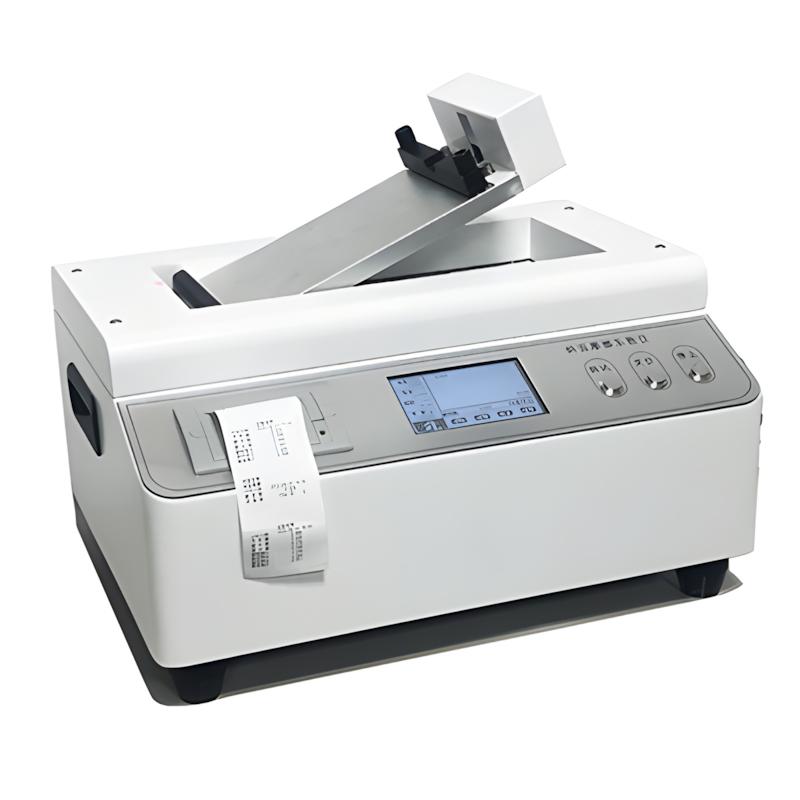

YINUO YN-MC02 Bevel Coefficient of Friction Tester is a professional equipment used to test the Coefficient of Friction of paper, Cardboard, Plastic film, sheet, conveyor belt and other materials. By measuring the smoothness of materials, it can control and adjust the opening of Encasement bags, Encasement machine speed and other process indicators to meet the production mass requirements.
Features
1. Continuously variable angular speed, automatic reset of the platform, easy to achieve different test conditions
2. Static COF of professional test specimen on inclined surface
3. The test table and test slider are degaussed and remanence detected to effectively reduce system errors
4. Microcomputer control, Menu Operating interface, PVC control panel and LCD screen for easy operation and data viewing
5. Equipped with a micro printer
Principle
The instrument evaluates the smoothness of the material by measuring the Static COF of the specimen on the inclined surface. When the inclined surface angle gradually increases, the critical angle at which the specimen begins to slide is recorded, and the friction coefficient value is calculated based on this.
Applications
Paper, Cardboard, Plastic film, Sheet, Conveyor belt
Standards
ASTM D202、ASTM D4918、TAPPI T815
Steps
1. Prepare the specimen and place it on the test bench
2. Operating interface setting test parameters
3. Start the test, the instrument automatically completes angle adjustment and data collection
4. View the test results on the LCD screen
5. Use the micro printer to output the test report
Notice
• Ensure Ambient Temperature at 23 +/- 2 ° C and Humidity within 20% RH~ 70% RH before use
• Regularly degaussing the test bench and slider
• Select the appropriate slider mass according to the test requirements (standard 1300g, optional 235g or 200g)
• Power supply voltage is AC 220V 50Hz
• Keep the equipment clean to avoid affecting Test accuracy
