Overview

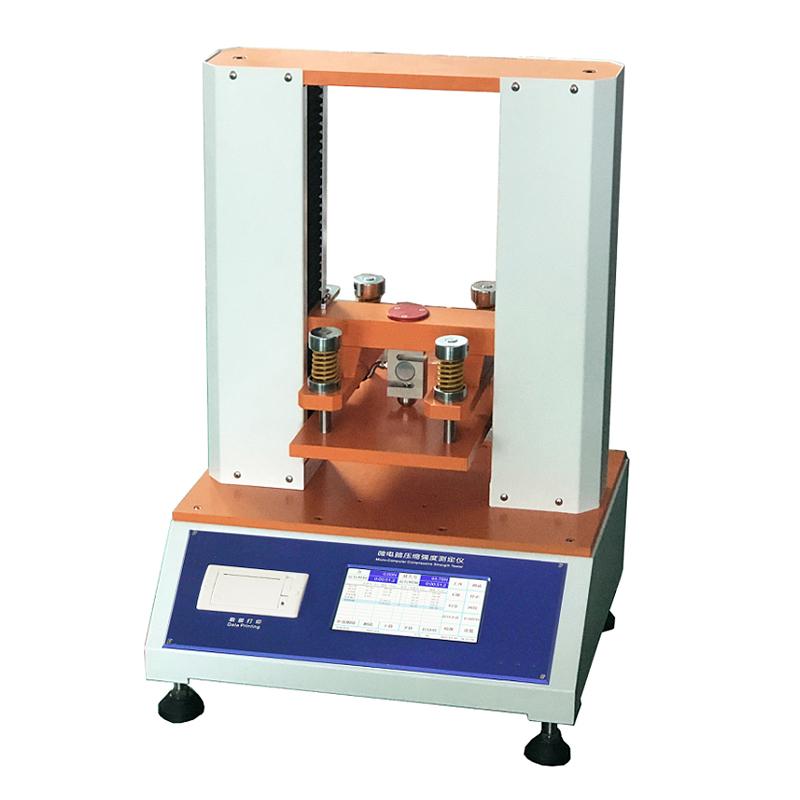

YN-ZG200 microcomputer paper bowl compression tester is specially used for the test of the compressive strength of carton paper bowls. The equipment specifications should be selected according to the size of the carton Dimension. The carton and the pressing plate need to be accurately parallel during the test to ensure the smoothness and repeatability of the test results. The compression tester conforms to the international compression strength inspection method of Encasement transportation parts. It is suitable for the compression test, constant pressure test, stacking test compression displacement test and deformation test of high-strength Encasement parts such as corrugated cartons and honeycomb boxes. It can also be used for the compression test of plastic drums and other material container containers.
Features
1.7In Touchscreen Chinese and English bilingual system, real-time display of anti-stress information, more intuitive data;
2. The power and time can be directly set, and the carton will be automatically reset after the test is completed, and the compression result and compression deformation of the carton will be automatically recorded;
3. Open structure design, double ball screw, double guide column, good parallelism, good Stability, strong rigidity, long service life;
4. Extreme Travel Protection, Overload Protection and other intelligent configurations to ensure user operation safety;
5. Built-in power protection device can protect the equipment from damage due to excessive or unstable power supply magnetic field.
6. The instrument is equipped with a high-speed micro-printer, and the printing content includes: test time, test number, maximum crushing force, compression displacement and other data;
7. Can be equipped with computer-specific analysis software, Linear dispersion detail analysis, with dedicated programmable file management analysis report, A4 printing (optional).
Principle
The equipment applies pressure to the sample through the pressure plate, pressurizes according to the set test mode (fixed value test, pressure test, stacking test, compression displacement test), until the sample is damaged or reaches the predetermined conditions, and monitors and records the pressure and displacement data in real time to ensure the accuracy and repeatability of the test results.
Applications
Corrugated cartons, honeycomb cartons, single-layer Cardboard boxes, strength testing of heavy-duty cartons, paper products, paper corner protectors, paper barrels, cartons, paper cans, wooden box export wooden boxes, sliding wooden boxes, hoarding boxes, plywood boxes Strength testing of plastic Encasement barrels, strength testing of container barrels, compression testing of other fiberboard containers
Standards
GB/T 4857.4、GB/T 4857.3、ISO 12408、ISO 2234、QB/T 1048、ASTM D642、ASTM D4169、TAPPI T804
Steps
1. Select equipment specifications according to Carton Dimensions;
2. Ensure that the carton and platen are placed accurately in parallel.
3. Set test parameters (force, time, etc.) through 7in Touchscreen;
4. Start the test, and the device automatically pressurizes and records data.
5. Automatically reset, print or export the test results after the test is completed.
Notice
• The carton and platen must be accurately parallel during the test to ensure the smoothness and repeatability of the test results;
• Travel protection, power protection and emergency stop devices are required to be familiar with safety functions during operation;
• The working environment should be controlled under the conditions of temperature (20 +/- 10 ℃) and Humidity < 85%;
• Power requirements are 220V/50Hz, Power 400W~ 2000W to ensure stable power supply;
• Regularly check key components such as Sensors and Screw to ensure equipment accuracy and longevity.
