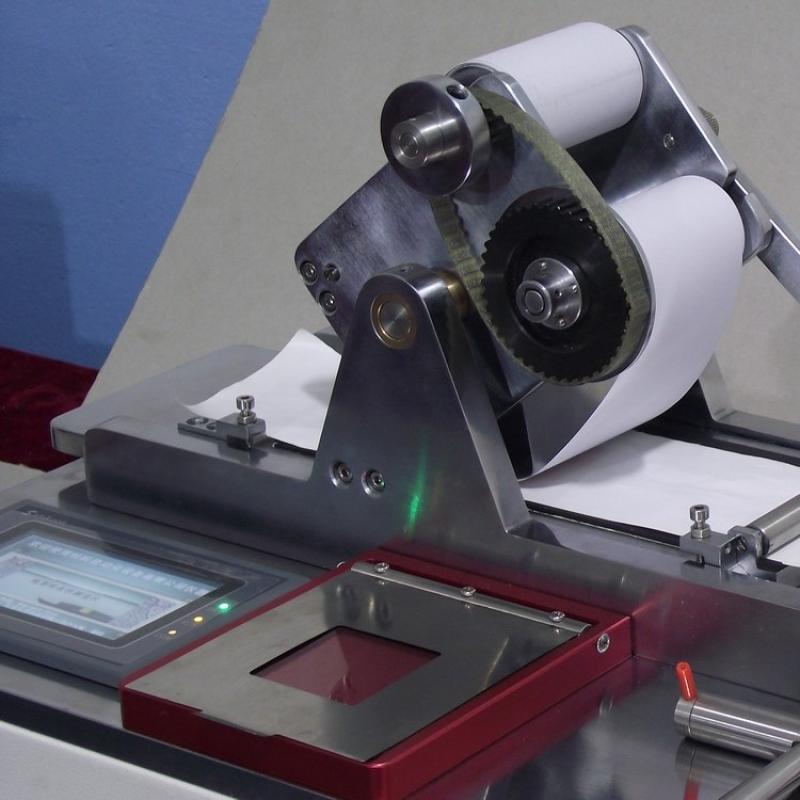

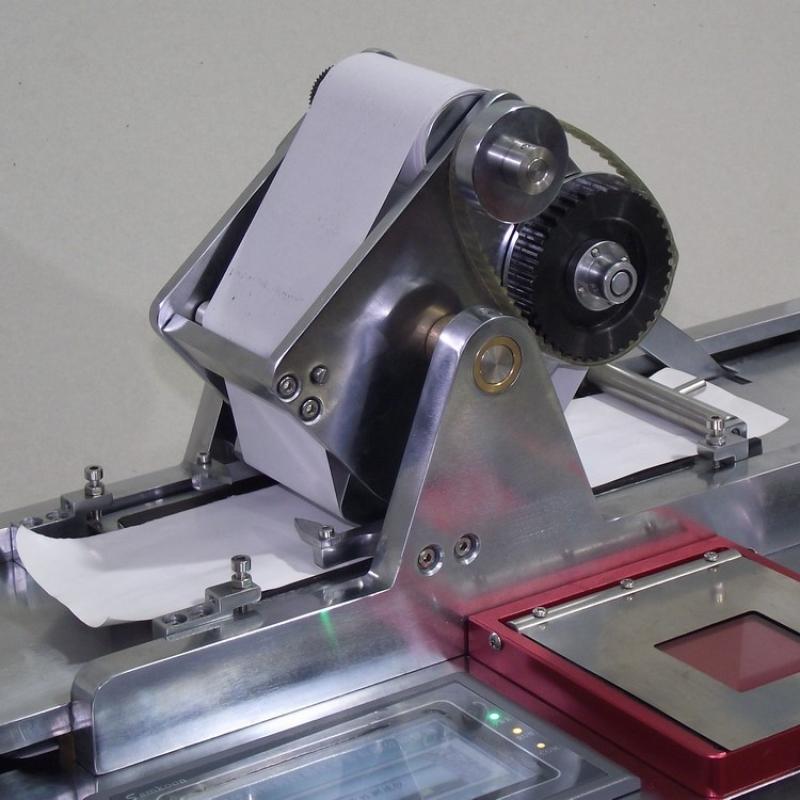

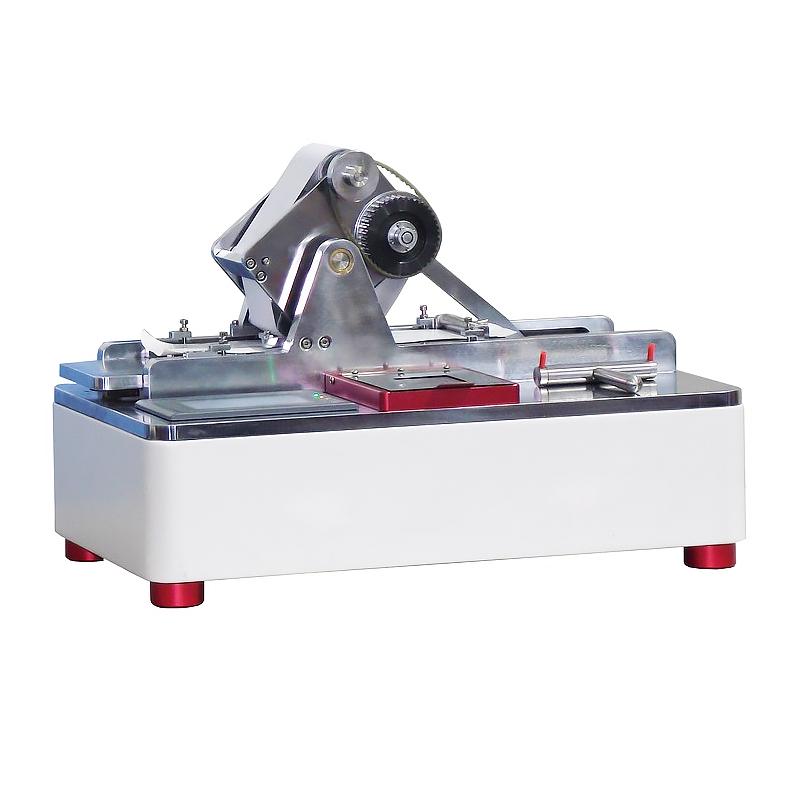

YINUO YN-SXY01 Ink absorbency Tester paper Ink Absorption Tester

Name: YINUO YN-SXY01 Ink absorbency Tester paper Ink Absorption Tester
Brand: YiNuo
SKU: NB034020
Price: 4072.0 USD
Availability: PreOrder

$ 4072.00Ex works

The ink wiping speed is 15.5cm/min, the opening area of the ink coating platen is 20cm ², and the ink absorption time is 120s. The test process is automatically controlled to accurately determine the absorption capacity and penetration performance of the paper to inks.

Model

YN-SXY01

Get Quote

Category : Ink Absorption Tester

Brand : YiNuo

SKU : NB034020

Service :The delivery and service By NBCLab.Com

Overview

YINUO YN-SXY01 Ink absorbency tester is a professional instrument used to measure the absorption performance of standard inks by paper or Cardboard over a certain time and area. The instrument mainly measures the performance of paper and Cardboard absorbing inks over a specified time and area, reflecting the acceptance of inks by paper and the absorption capacity of vehicles in inks, which directly affects the penetration of inks to paper and conjunctiva.

Features

1.Wiping speed: 15.5 +/- 1.0cm/min 2. Inked platen opening area: 20 +/- 0.4cm ² 3. Inked platen thickness: 0.1 +/- 0.02mm 4. Ink absorption time: 120 +/- 5s 5. Human-machine interface: 4.3 "Color Touchscreen control, the company developed Operating system 6. Power supply: 220v/50Hz, 110W, 1A 7. Ambient Temperature: 20 +/- 10 ℃ 8. Dimensions: 490 * 280 * 350mm 9. weight: 25kg 10. Environmental humidity: < 85%

Principle

The instrument applies standard inks on the surface of paper or Cardboard by inking platen to measure paper absorption performance of inks within a specified time. This process reflects the acceptance of inks by paper and the absorption capacity of vehicles in inks, and affects the penetration of inks to paper and conjunctiva.

Standards

GB/T456、GB/T10379

ink erasing speed
15.5±1.0 cm/min
Opening area of ink-coated platen
20±0.4 cm²
Inked platen thickness
0.1±0.02mm
Automatic control of ink absorption time
120±5 s
Human Machine Interface
4.3
power supply power
220v/50Hz、110W、1A
Operating temperature
(20 +/- 10℃), Humidity < 85%
Dimension
490*280*350mm
weight
25 kg

[Q] Is the price listed on the website the final cost for overseas purchases?

[A] No, it isn't. This is the ex-factory price of the product in the Chinese Mainland. In addition to this price, buyers from different countries need to account for additional costs such as shipping fees, tariffs, and others. For specific regional quotes, please consult our customer service or fill out a quotation form.

[Q] What is the specific process for purchasing the product?

[A] First, please click on the quotation form on the website and fill in detailed information. Our customer service personnel will then send you a quotation based on your specific country and region, confirming payment and delivery methods. Following this, we proceed with contract signing, payment, and shipment. You can then await delivery.

[Q] What should I do if the instrument I purchase needs repair?

[A] After-sales repair for overseas instruments is an unavoidable issue. Our repair terms stipulate that the sender is responsible for the shipping and insurance costs incurred for the repair. Repairs within the warranty period are free, while repair costs beyond the warranty period are determined based on the actual situation.
