Overview

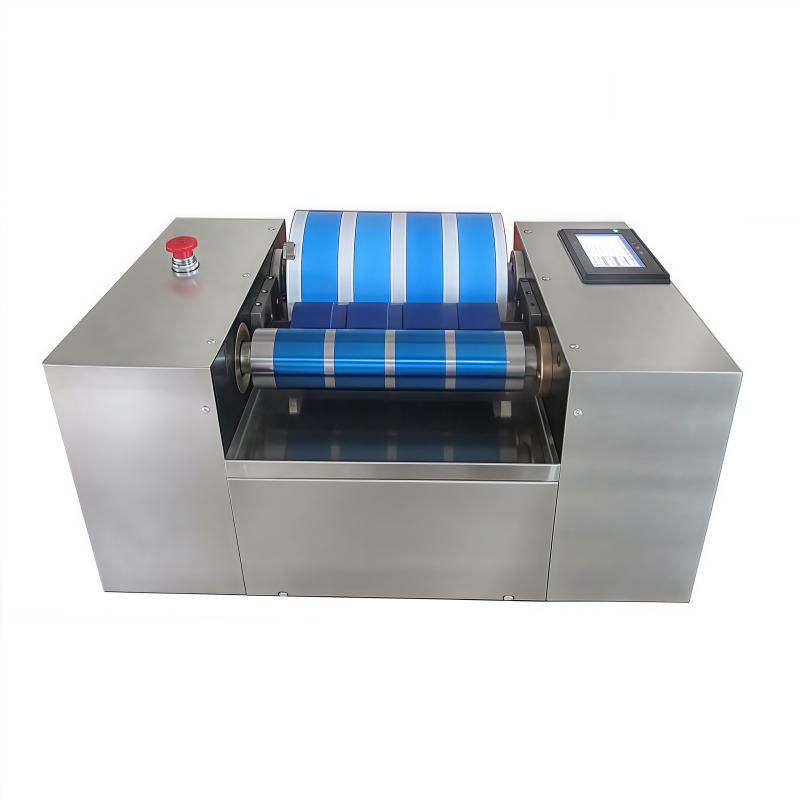

YINUO YN-ZSY-4 inks Color Display Instrument - Offset Printing Process Color is a professional inks inspection equipment that uses automatic ink leveling, equipped with German/Japanese main accessories, can precisely adjust the printing pressure, suitable for inks color development and printing sampling work.
Features
1. Automatic ink leveling method
2. The printing pressure can be precisely adjusted according to the thickness of the material
3. Adopt German/Japanese main accessories
4. Uniform ink printing speed can be adjusted
5. Built-in leakage switch, safe and reliable
6. Equipped with 4 color bars (4 in the primary color area and 4 in the light color area)
Principle
The equipment distributes inks evenly on the rubber roller through the automatic ink leveling system, and then realizes accurate printing through the printing pressure adjustment system, and finally forms a clear ink development spline on the paper.
Steps
1. Make sure that the live wire, neutral wire and ground wire are complete, and turn on the power switch
2. Prepare paper, inks and cleaning cloths
3. Install the paper, adjust the ink viscosity, inject the inks into the ink injector and drain the air
4. Align the nozzle of the ink injector with the surface of the ink roller and inject the required amount of inks
5. Set the operation screen data and press the "uniform ink" button
6. Press the "printing" button after the ink is stopped
7. Clean inks on rubber roller and steel roller after printing sampling
8. Ensure effective cleaning of rubber and steel rollers
9. Turn off the power after the work is completed
Notice
• Try not to use equipment in thunderstorm weather
• The equipment should not be powered off for a long time. It is recommended to turn it on and power on twice a month.
• It is better to use white fabric when cleaning rubber rollers and steel rollers
• Crowd equilibrating degree when adjusting pressure
• Excessive pressure will cause the pattern to deform inks
• White points will appear when the pressure is small
• The emergency stop switch needs to be re-unscrewed and powered on after use
