$ 12439.00Ex works
The vacuum pressure plate is made of pure bronze, the drying temperature can be adjusted from room temperature to 120 ℃, equipped with double drying stations and intelligent drainage system, and the paper uniformity can reach 96.
Category : Other Instruments
Brand : YiNuo
SKU : NB034029
Service :The delivery and service By NBCLab.Com

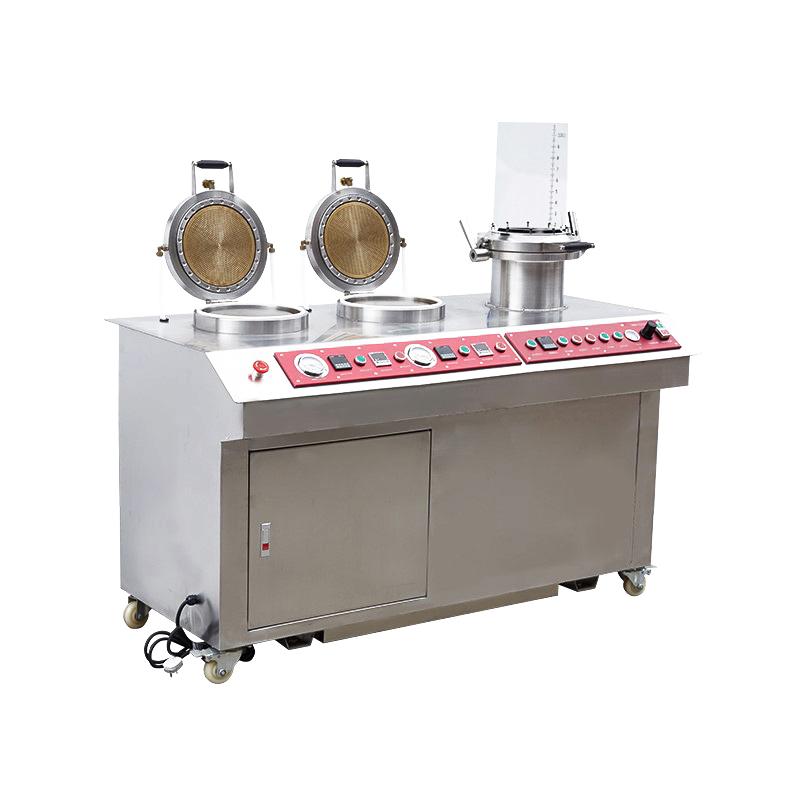

The paper sheet former (model YN-CP01) is an experimental equipment that uses the fast Kaiser method to copy Pulp into shape and perform vacuum drying. It can dissolve plant, mineral and other fibers through standard, stir in the sheet copy cylinder, suctionfiltration forming, and then press and vacuum drying to form a round paper sheet with a diameter of 200mm for physical inspection.
1. Wide range of forming Grammage, minimum 5g, maximum thickness up to 20mm 2. High paper uniformity, up to about 96 3. Equipped with multi-mesh selection (80/100/120/200/300/400/500) 4. Adopt fully enclosed rep semi-enclosed water-sealed vacuum pump assembly, high vacuum strength 5. drying temperature room temperature~ 120 ℃ stepless adjustable 6. Equipped with one-button tap water circulation and white water circulation system 7. Adopt imported Omron temperature control system 8. The main components are made of 304 stainless steel and pure bronze
The pulp is stirred in the sheet-copying cylinder by the fast Kaiser method, and then formed by the fast suctionfiltration. The formed sheet is processed by pressing and vacuum drying, and disc heating is used to ensure uniform transverse temperature and achieve uniform heating and drying, and finally a round sheet sample is formed.
Pulp forming, physical test sample prepative
GB/T24324-2009、QB/T3703-1999、SO 5269/2 & ISO 5269/3、5269/2、NBR 14380/99、TAPPI T-205、DIN 54358、ZM V/8/76
1. Pulp for standard dredging 2. Put it in the sheet copy barrel and stir 3. Rapid suctionfiltration molding Step 4 Perform pressing treatment 5. Vacuum drying to form sheets
• The standard diameter of the sample is round φ ≤ 200mm, square and other sizes need to be customized • Grammage and thickness depending on fiber type • Paper uniformity depends on different fiber types and molding requirements • Mesh selection should be equipped according to different fiber characteristics • Power supply voltage 220v, 50Hz before use
