Overview

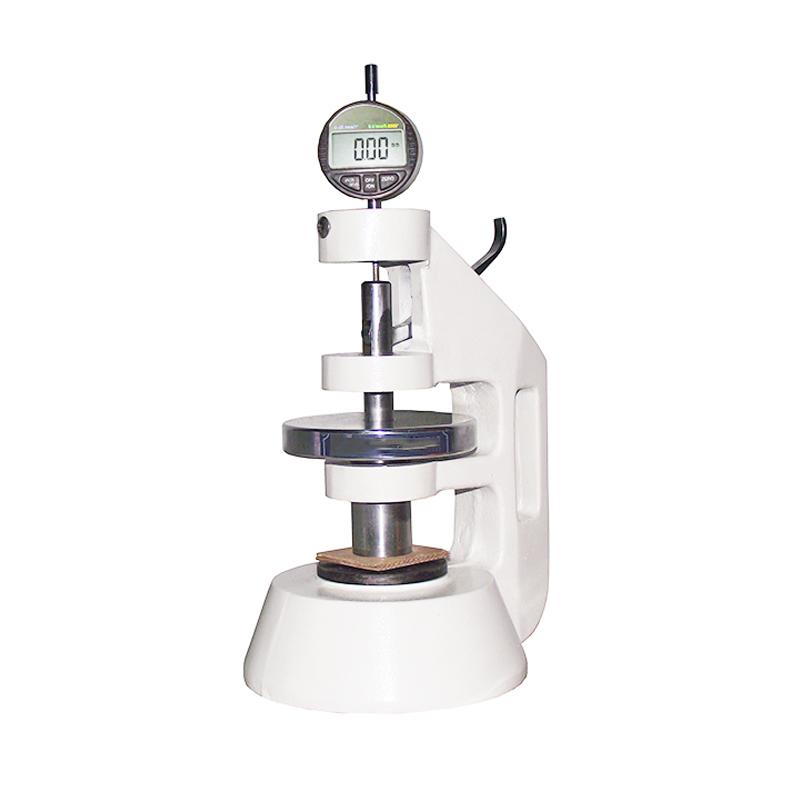

YN-HDY02 Corrugated Board Thickness Tester is a professional instrument for detecting the thickness of Corrugated Board and carton products. It is suitable for Cardboard factories, carton factories, R & D institutions and Quality control departments. It is used to detect Corrugated Board within 20mm.
Features
1. Digital Handheld High Accuracy, Stable Reading
2. Compact structure, lightweight to carry, strong and durable
3. Exquisite paint baking process, anti-rust, anti-corrosion, beautiful and beautiful
4. Can be customized according to customer needs accuracy and thickness
5. Can be connected to a computer to automatically draw real-time test data Linear dispersion diagram (optional)
Principle
Corrugated Board The distance measured between two parallel planes of the Thickness Gauge specimen under specified pressure.
Applications
Film, Sheet Paper, Corrugated Board, Metal Wafer, Silicon Wafer, Spinning & Weaving Materials, Nonwovens, Other Materials
Standards
QB/T 1055、GB/T 6547、ISO 534
Steps
1. Prepare Corrugated Board Specimen
2. Place the specimen between two parallel surfaces of the Thickness Gauge
3. Pressure measurement is applied
4. Read the thickness value displayed by the digital display
5. Optional connection computer to draw real-time test data Linear dispersion map
Notice
• Ensure that the Operating Ambient Temperature is within the range of (20 +/- 10) ° C
• Environmental humidity should be less than 85%
• Check whether the parallelism of the measurement surface meets the requirements before use
• Regularly calibrate instruments to ensure Measurement accuracy
• Avoid using the instrument in humid or corrosion environments
