China ZY-CH18 Paper and Cardboard Thickness Gauge, Thickness Gauge, Contact Pressure 100kPa

Name: China ZY-CH18 Paper and Cardboard Thickness Gauge, Thickness Gauge, Contact Pressure 100kPa
Brand: zy
SKU: NB034067
Price: 511.0 USD
Availability: InStock

$ 511.00Ex works

Measurement range 0-18mm, contact pressure 100kPa, contact area 200mm ², Indication Error 2.5μm, suitable for accurate measurement of paper and Cardboard thickness.

Model

ZY-CH18

Get Quote

Category : Paperboard Thickness Gauge

Brand : zy

SKU : NB034067

Service :The delivery and service By NBCLab.Com

Overview

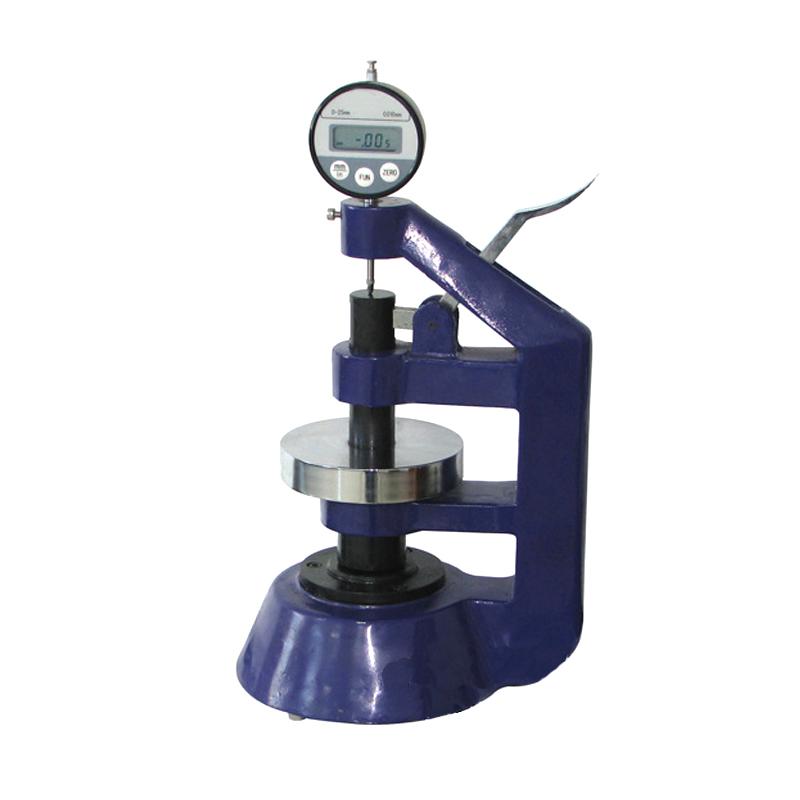

This device is a China ZY-CH18 paper and Cardboard thickness gauge, suitable for measuring the thickness of paper and Cardboard samples.

Features

1. Measurement range: 0~ 18mm 2. Contact area: 200mm ² 3. Contact pressure optional: 100kPa, 50kPa 4. High indication accuracy:% gauge value 0.01mm, indication deviation +/- 2.5μm, Indication Error 2.5μm 5. Small size: 80 * 120 * 120mm 6.Light weight: 2.5kg

Principle

By applying a standard contact pressure (100kPa or 50kPa) on the 200mm ² contact area, the thickness of the paper and Cardboard specimens is measured, and the thickness value is indicated by a dial meter.

Applications

Paper and Cardboard Thickness Determination

Standards

ISO 534 Paper and Cardboard - Determination of single layer thickness and calculation method of Cardboard tightness, ISO 438 Paper - Determination of laminated thickness and tightness, GB/T 451.3 Paper and Cardboard thickness, GB/T 1938 Determination of soft paper thickness

Steps

The information does not mention the specific operation steps

Notice

The information does not mention specific precautions

Measurement Range
0~18mm
Measurement area
200mm²
Measuring pressure
100kPa，50kPa
Indicator percentage grid value
0.01mm
Indication deviation
±2.5μm
Measurement Repeatability
2.5μm
Size
80*120*120mm
weight
2.5kg

[Q] Is the price listed on the website the final cost for overseas purchases?

[A] No, it isn't. This is the ex-factory price of the product in the Chinese Mainland. In addition to this price, buyers from different countries need to account for additional costs such as shipping fees, tariffs, and others. For specific regional quotes, please consult our customer service or fill out a quotation form.

[Q] What is the specific process for purchasing the product?

[A] First, please click on the quotation form on the website and fill in detailed information. Our customer service personnel will then send you a quotation based on your specific country and region, confirming payment and delivery methods. Following this, we proceed with contract signing, payment, and shipment. You can then await delivery.

[Q] What should I do if the instrument I purchase needs repair?

[A] After-sales repair for overseas instruments is an unavoidable issue. Our repair terms stipulate that the sender is responsible for the shipping and insurance costs incurred for the repair. Repairs within the warranty period are free, while repair costs beyond the warranty period are determined based on the actual situation.
