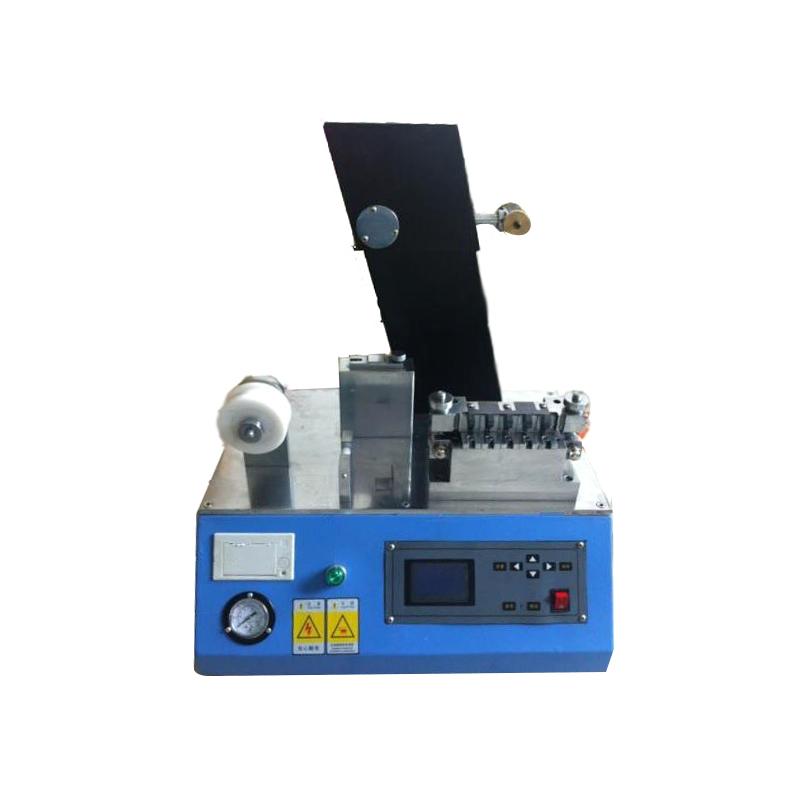

China ZY-SCJB digital display interlayer disbonding testing machine TAPPI standard five sets of tests

Name: China ZY-SCJB digital display interlayer disbonding testing machine TAPPI standard five sets of tests
Brand: zy
SKU: NB034070
Price: 4057.0 USD
Availability: InStock

$ 4057.00Ex works

Five sets of specimens can be tested simultaneously, supporting 0-900N compression force adjustment, with 0.005ft.lb high Accuracy grade and 90 ° Impact angle, meeting a variety of standard unit requirements.

Model

ZY-SCJB

Get Quote

Category : Peel Strength Tester

Brand : zy

SKU : NB034070

Service :The delivery and service By NBCLab.Com

Overview

The instrument is China ZY-SCJB digital display interlayer disbonding testing machine, manufactured according to TAPPI-UM403 standard, suitable for testing the Peel Strength between various paper and Cardboard layers. Five sets of styles can be measured simultaneously, and the results meet a variety of standard units. The digital display can print the test results.

Features

1. Five groups of samples can be tested simultaneously 2. Digital display and printable test results 3. Capacity can be switched freely 4. Accuracy grade up to 0.005 ft.lb 5. Sample compression force range 0-900N

Principle

Test principle: Cardboard specimen by a certain angle and weight of the Impact, can absorb energy, and indicates the Cardboard layer Peel Strength.

Applications

Paper and Cardboard Peel Strength Test

Standards

TAPPI-UM403、TAPPI-T833

Steps

1. Prepare a 25.4 * 25.4mm sample 2. Set the sample pressing force 0-900N 3. Select capacity range (0-0.5ft.lb or 0-0.25ft.lb) 4. Set Impact Angle 90 ° 5. Test five groups of samples simultaneously 6. Read the digital display results and print them

Notice

• Power supply voltage 220V/50Hz 2A • The sample size must be 25.4 * 25.4mm • Impact angle fixed at 90 ° • Capacity selection needs to be freely switched according to test requirements

standard basis
TAPPI-UM403,TAPPI-T833
number of samples
Group of 5
Specimen Size
25.4X25.4mm
specimen pressing force
0-900N
capacity
Switch freely
Small capacity
0-0.25ft.lb
large capacity
0-0.5ft.lb
Accuracy grade
0.005 ft.lb
Impact Angle
90 Degrees
data display
digital display
Power supply Voltage
220V/50Hz 2A

[Q] Is the price listed on the website the final cost for overseas purchases?

[A] No, it isn't. This is the ex-factory price of the product in the Chinese Mainland. In addition to this price, buyers from different countries need to account for additional costs such as shipping fees, tariffs, and others. For specific regional quotes, please consult our customer service or fill out a quotation form.

[Q] What is the specific process for purchasing the product?

[A] First, please click on the quotation form on the website and fill in detailed information. Our customer service personnel will then send you a quotation based on your specific country and region, confirming payment and delivery methods. Following this, we proceed with contract signing, payment, and shipment. You can then await delivery.

[Q] What should I do if the instrument I purchase needs repair?

[A] After-sales repair for overseas instruments is an unavoidable issue. Our repair terms stipulate that the sender is responsible for the shipping and insurance costs incurred for the repair. Repairs within the warranty period are free, while repair costs beyond the warranty period are determined based on the actual situation.
